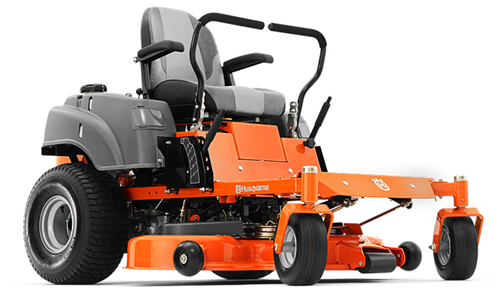

HUSQVARNA EZ 24T

Large Estate Maintenance demands a rugged, high performance zero-turn mower. The EZ Series Zero-turn mowers offer extra durability features like a rigid one piece steel frame, premium serviceable hydrostatic transaxles and high quality engines. Comfort features include high back seat with arm rests, easy access control placement, large tyres for a smooth ride and ergonomic steering levers. Comes with a rugged Combi cutting deck as standard, offering the versatility of mulching and rear discharge.

Product Code : 966659703

Manufacturer : Husqvarna / husqvarna.cz

Warranty : 24 months

Product is not for sale

And can not be ordered

Features and benefits

Control System with zero turning radius
The Hydraulic drive of individual wheels provides very precise manoeuvrability and allows the lawnmower to rotate around its axis with a zero turning radius.

Engine Briggs & Stratton
The Briggs & Stratton Motors offer durability, reliable starting and the power you need to work.

Robust Steering System
Integrated ZT2800 gearbox for zero-radius machines with cartridge pumps for smooth, quiet operation and positive response.

Sturdy Frame and Castor wheels
The Sturdy frame and swivel wheels ensure durability and reduce the risk of damage to the chassis.

Detachable footrests
The Detachable bottom plate allows easy access to the mowing mechanism pulley, the house and easier cleaning.

Convenient Control
Two control levers with foam handle and viscous shock absorbers that dampes vibrations and contributes to the comfort of the machine.

Convenient operation
Comfortable suspension seat and large, adjustable control levers with high-quality foam handles, vibration damping, contribute to the comfort of the machine operator.

Adjustable Control Levers
The Control levers are adjustable for different driver heights, ergonomically bent to each other for added comfort and can be adjusted to suit your specific style.

Convenient Control Panel
For maximum comfort of the driver, the choke, throttle and ignition levers are grouped in one control Panel on the right side.

Operating hours Counter with service intervals
Indicates when it is time to service your lawn mower.

Comfort and Support
The Comfort seat with high backrest is equipped with armrests as standard.

Direct Direction Adjustment
Easy-to-access adjustment elements allow precise adjustment to be made straight without the use of tools.

Specification

Cutting deck

Skeleton material

Steel

Cutting deck material thickness

3 mm

Cutting height, min-max, mm

38 - 114 mm

Cutting height adjustment positions

Switching on cutting blades

Electric Clutch

Clutch characteristics

122 Nm

Mowing knives

Cutting knife tip speed

93.9000

Anti-scalp wheels

Front cylinder

Ano

Cutting deck lifting system

Manual Hand Operated

Surface treatment of the cutting deck by powder coating

Ano

Type of house

Aluminium, Normal quality

Lubrication-friendly Houses

Ano

Cutting method(s)

BioClip®/Rear Discharge

Cutting deck type

Pressed

Cutting width

122 cm

Equipment

Seat type

15 "High backrest

Suspension seat

Ano

Seat back height

High

Operating hour counter

Digital with pre-programmed service intervals

Fuel tank capacity, litres

13.2 l

Material

Seat material

Vinyl

Other

Armrests

Yes

Drive system

Rear speed, min-max, km/h

0 - 5.6 km/h

Forward speed, min-max, km/h

0 - 10.5 km/h

Fan-cooled pumps

Yes

Pump Volume

Transmission model

ZT 2800

Gearbox manufacturer

Hydro-Gear

Transmission type

Hydrostatic

Engine

Oil filter

Ano

Engine lubrication type

Full pressure

Fuel tank location

On the side (1)

Type of gasoline

Gasoline

Air filter type

Standard

Generator

Engine cooling

Air

Cylinders

Cylinder displacement, cm³

724 cm³

Net power at preset speeds, kW

11.9 kW @ 2450 ot./min

Engine name

Endurance Series V-Twin

Engine manufacturer

Briggs & Stratton

Oil filling volume

Amount of oil, liters

1.9000

Basic data

Tire dimensions, front, inches

11X6-5 "

Tire dimensions, rear, inches

20x8-8

Wheelbase

118 cm

Basic machine, length, cm

189.2 cm

Base machine, height, cm

119.4 cm

Weight, kg

216 kg

Dimensions

Base machine, width (ejection hole cover at the bottom), cm

152 cm

Base machine, width (ejection hole cover on top), cm

123 cm

Productivity

10117 m²/hr

Overall dimensions

Package dimensions, LxWxH

1981, 2x1562, 1x901, 7 mm

Logistics

Package volume

2.8 Cubic m³

Gross weight (packed)

284

Pallet dimensions, LxWxH

1981, 2x1562, 1x901, 7

Logistic data

Quantity on pallet

Number in Container

20-Trace: 0 40-Trace: 0 40-HC: 21
