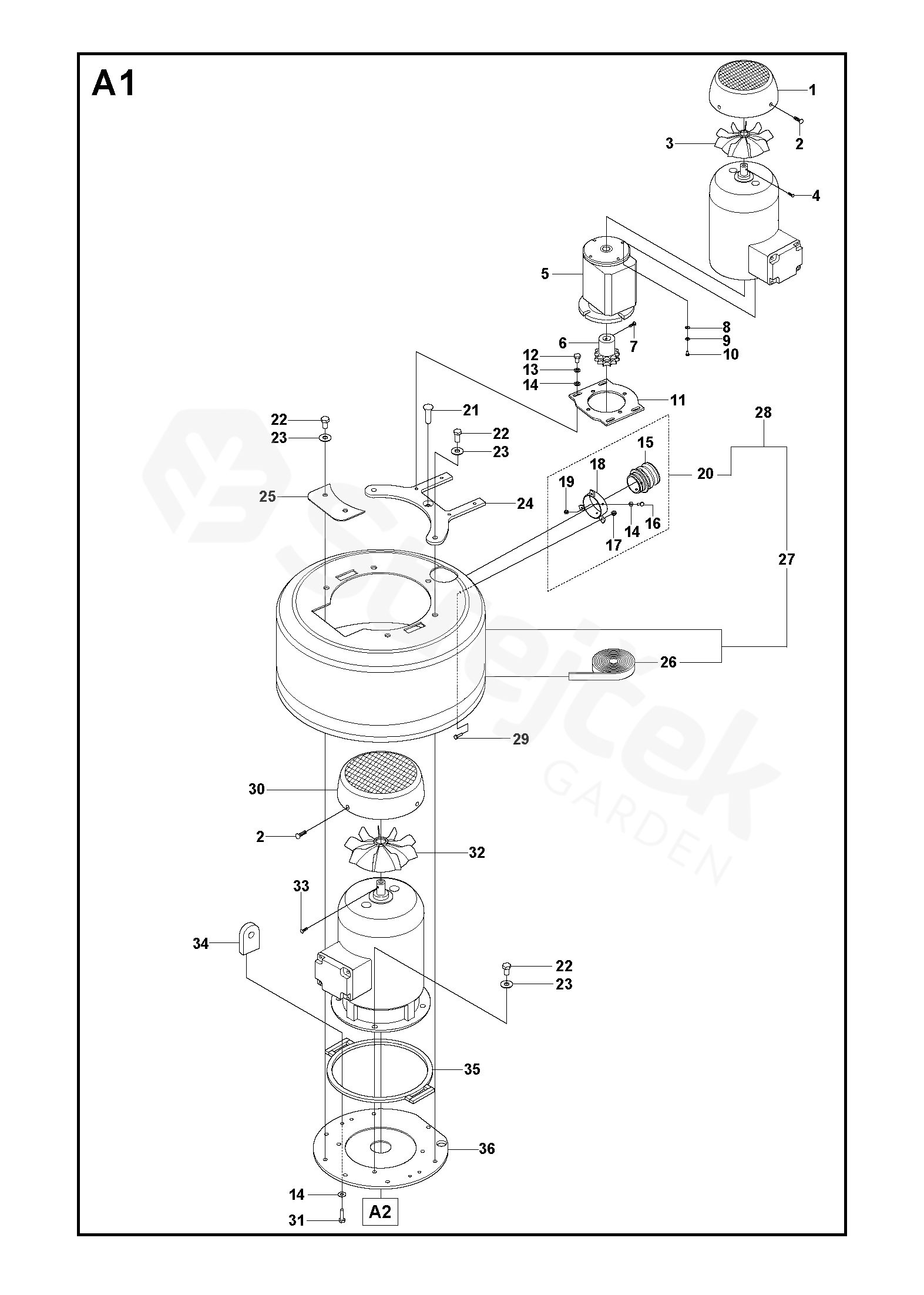

PG 530 PG 530, To machine number 1208-3, 2008-10

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For PG 530, To machine number 1208-3, 2008-10

11/13 OVLÁDACÍ PANEL

12/13 PLANETARY AND MECHANICAL EXTERNALS

13/13 PODVOZEK / RÁM PODVOZKU

1	COVER	522658401
2	SCREW	521887101
3	FAN	522658601
4	PEN	522658501
5	GEARBOX	502559601
6	DRIVE SPROCKET	502564001
7	SCREW IHPANM	541405178
8	PODLOŽKA	734115201
9	PODLOŽKA	735115301
10	SCREW EHHM	725237271
11	PLATE	502561601
12	SCREW EHHFM	725244976
13	PRUŽNÁ PODLOŽKA	735116401
14	PODLOŽKA	734116301
15	COUPLING	504729802
16	SCREW EHHM	725245376
17	HEXAGON LOCKING NUT	732251601
18	BRACKET	522658701
19	HEXAGON LOCKING NUT	732251801
20	ASSEMBLY	522658801
21	SUPPORT	522629401
22	SCREW EHHM	725253471
23	PODLOŽKA	734117801
24	BRACKET	502561501
25	COVER PLATE	504725101
26	VELCRO	502562201
27	COVER	502562101
28	COVER ASSY	522658901
29	SCREW CRCSFM	724337051
31	SCREW EHHM	725245576
33	PEN	522659301
34	LIFTING LUG	504725601
35	SEAL	522659401
36	PLATE	502561301
30a	COVER MAIN MOTOR FAN COVER 3KW	505556601
30b	COVER MAIN MOTOR FAN COVER 4KW	522659001
32a	FAN MAIN MOTOR FAN 3KW	505556501
32b	FAN MAIN MOTOR FAN 4KW	522659201
