Spare parts
>
Husqvarna
>
RIDERS
>
R322T AWD R322T AWD, 967153002, 2018
>

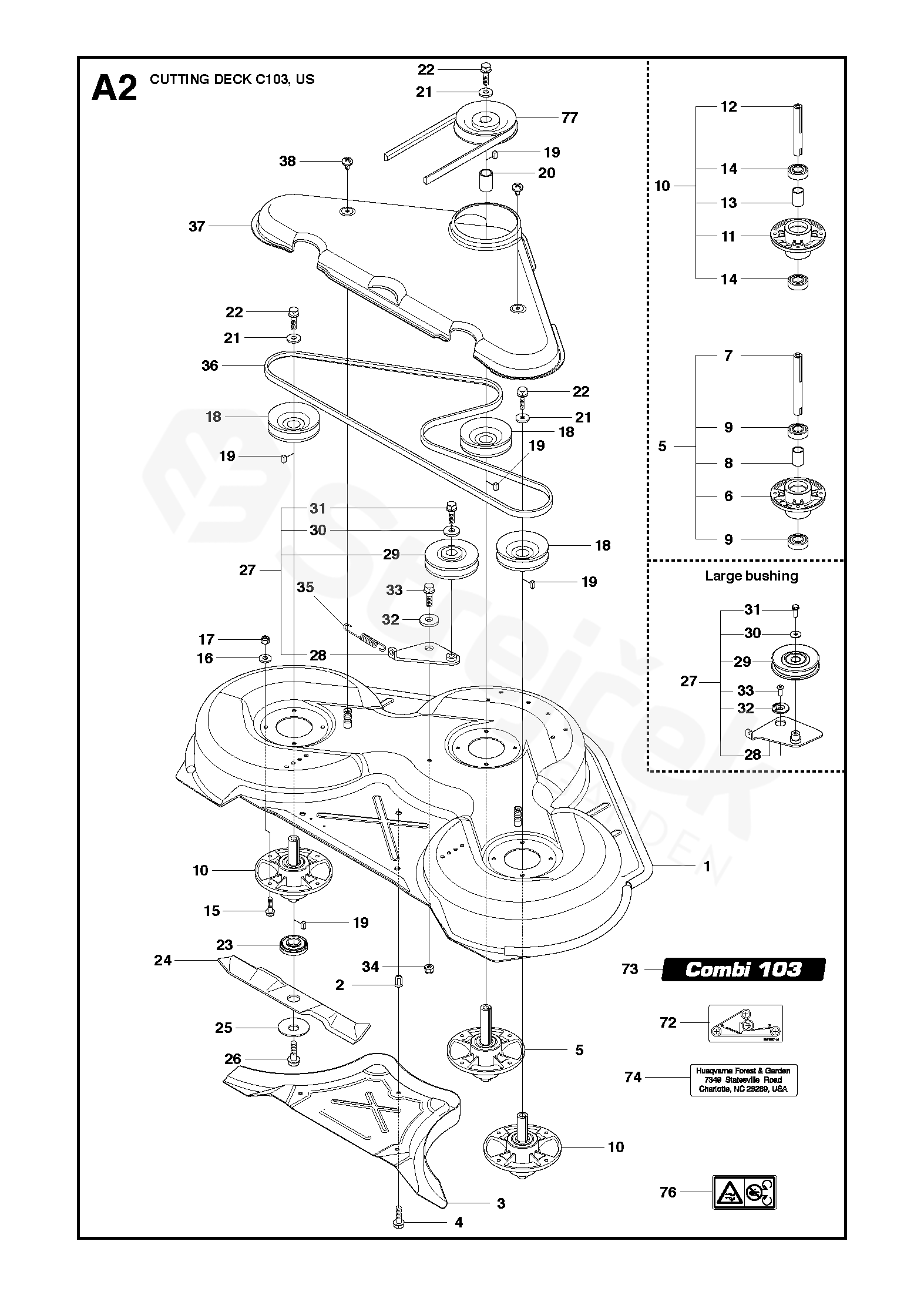

103CM CUTTING DECK
Back to
R322T AWD
R322T AWD, 967153002, 2018
103CM CUTTING DECK
R322T AWD
R322T AWD, 967153002, 2018
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
R322T AWD, 967153002, 2018
1
CUTTING DECK
574210801
2
BLIND RIVET NUT
506916201
3
PLUG
544449201
4
SCREW EHHFM
506570104
5
BLADE HOUSING ASSY
576384101
6
BEARING HOUSING
576384201
7
SHAFT
576384301
8
SPACING SLEEVE
576384401
9
BALL BEARING
738230434
10
BLADE HOUSING ASSY
576384102
11
BEARING HOUSING
576384201
12
SHAFT
576384302
13
SPACING SLEEVE
576384401
14
BALL BEARING
738230434
15
SCREW RSQM
535423801
16
PODLOŽKA
734116401
17
LOCK NUT
732211801
18
PULLEY
506922101
19
PARALELNÍ KLÍN
506533501
20
SPACING SLEEVE
544068002
21
PODLOŽKA
734117441
22
SCREW EHHM
544114101
23
ADAPTER
535504202
24
BLADE
504188201
25
KNIFE PLATE
506792301
26
SCREW EHHM
544114101
27
BELT TENSIONER ASSY Large bushing
Large bushing
586966601
28
ARM
Large bushing
585359901
29
PULLEY
506532701
30
PODLOŽKA
734116441
31
SCREW
Large bushing
586320401
32
WASHER
Large bushing
586496701
33
SCREW IHCSFM
Large bushing
725645301
34
LOCK NUT
732211801
35
PRUŽINA
506533101
36
BELT
506768501
37
BELT COVER
544096101
38
SCREW
544400501
72
LABEL
506789701
73
LABEL
544238103
74
DECAL
506983901
76
DECAL
574510001
77
PULLEY
506778601
