Husqvarna
>

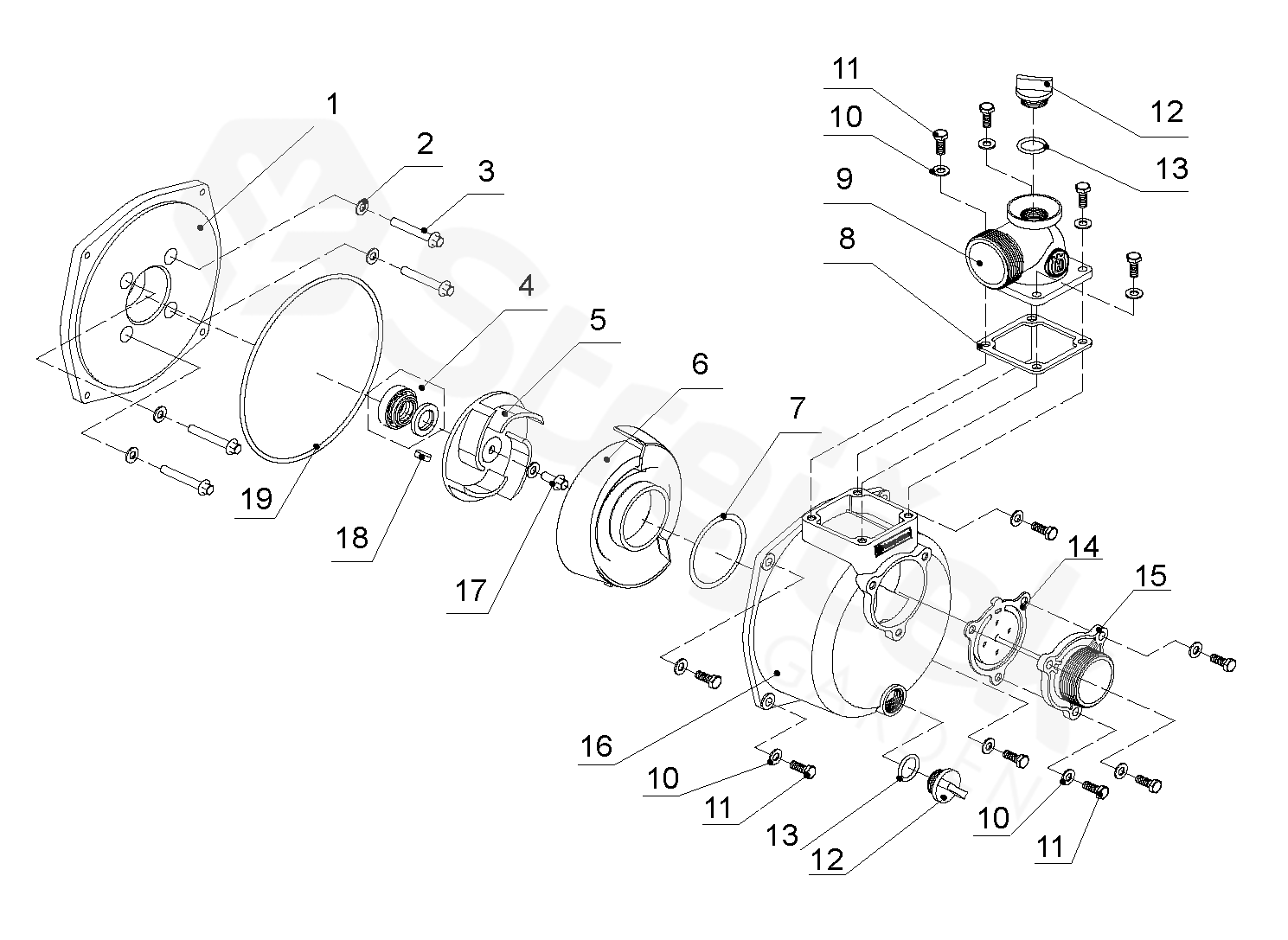

WATER PUMPS
>
W 80P W 80P, 2017-06
>
WATER PUMP
Back to
W 80P
W 80P, 2017-06
WATER PUMP
W 80P
W 80P, 2017-06
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
W 80P, 2017-06
1
COVER
590641201
2
WASHER
590612501
3
BOLT Bolt M8x60
M8x60
590641301
4
SEAL
590641401
5
IMPELLER
590641501
6
COVER
590641601
7
SEAL
590641701
8
GASKET
590641801
9
HOUSING
590641901
10
WASHER
590642001
11
BOLT M10x25
M10x25
590642101
12
PLUG
590614601
13
O-RING
590614401
14
SLEEVE Valve
Valve
590642201
15
INLET
590642301
16
PUMP
590642401
17
BOLT 7/16-20UNF
7/16-20UNF
590642501
18
KEY Flat
Flat
590642701
19
O-RING
590642901
