Spare parts
>
Husqvarna
>
STUMP GRINDERS
>
SG13B SG13B 966042601, 2009-02
>
HANDLE & CONTROLS
Back to
SG13B
SG13B 966042601, 2009-02

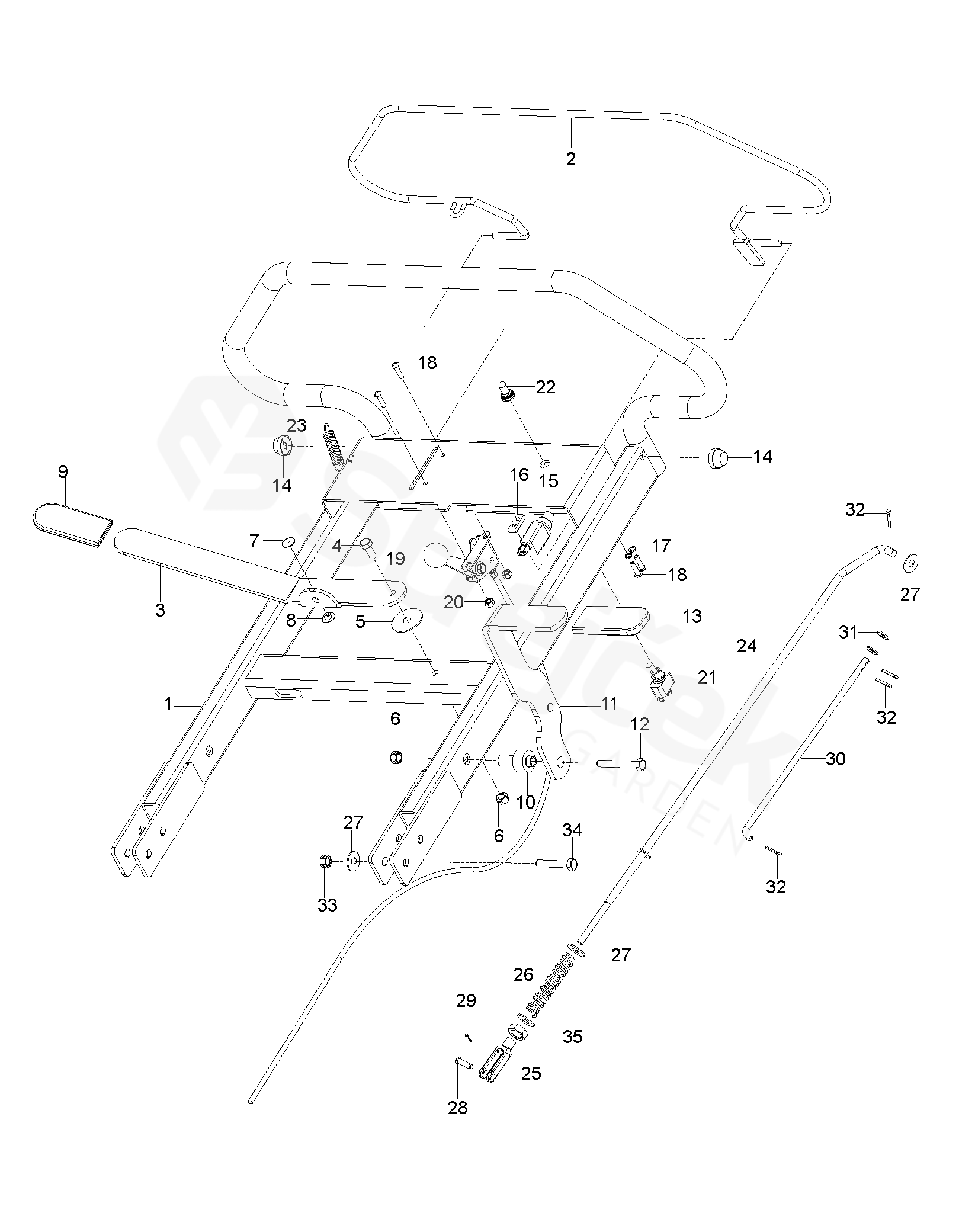

HANDLE & CONTROLS
SG13B
SG13B 966042601, 2009-02
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
SG13B 966042601, 2009-02
1
HANDLE UPPER
HANDLE w/ DECALS
539109319
2
BAIL
539130818
3
HANDLE
539108647
4
SCREW
539976934
5
WASHER
539102998
6
NUT
539990184
7
RIVET
539109089
8
RIVET
539109090
9
GRIP
539110865
10
BUSHING
539109279
11
HANDLE
539108995
12
CAPSCREW 5/16 X 2-1/4 HED HEAD
539976938
13
GRIP
539108996
14
NUT 5/16 PUSH CAP
539108792
15
BRAKER
539020017
16
PLATE
539102678
17
WASHER - 3/8
539109552
18
SCREW
539108535
19
THROTTLE CABLE, STUMP GRINDER
539020023
20
NUT
539976977
21
BRAKER
539020016
22
PROTECTOR
539020041
23
SPRING
539020035
24
ROD ASM, PARK BRAKE
539108992
25
YOKE 5/16F
539976481
26
COMP. SPRING
539100102
27
PODLOŽKA
539990517
28
CLEVIS PIN
539108975
29
PIN RETAINING SCREW
539976988
30
ROD, POSITION ADJ
539108648
31
PODLOŽKA
539990188
32
PIN RETAINING SCREW
539990365
33
MATICE
539990546
34
SCREW
539990588
35
NUT 5/16F NYLOC
539110943
WIRE HARNESS, CONSOLE
539109298
