Spare parts > Husqvarna > BRUSHCUTTERS/CLEARING SAWS > 535 RX 535 RX > CARBURETOR & AIR FILTER
Back to

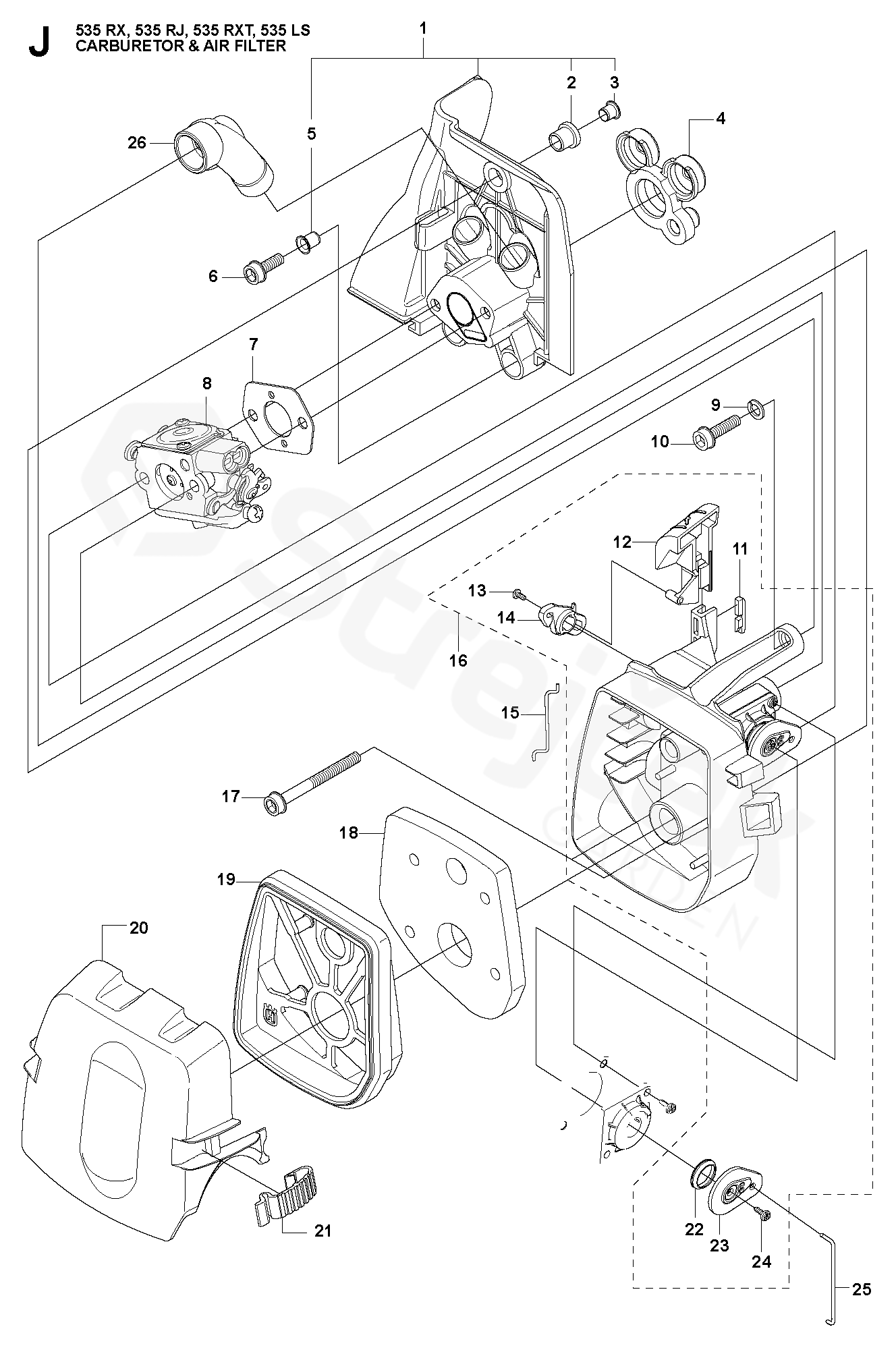

CARBURETOR & AIR FILTER
535 RX 535 RX
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For 535 RX
1 INSULATION WALL 537371202
2 POUZDRO 537371101
3 TRUBKOVÝ NÝT 544019101
4 INLET PIPE 537334301
5 TRUBKOVÝ NÝT 537373803
6 SCREW IHSCFM 503200316
7 GASKET 503497101
8 CARBURETTOR
(ZAMA C1Q-EL36) 		581167501
9 PODLOŽKA 503231006
10 SCREW IHSCFM 503200320
11 BAR 544025801
12 CHOKE CONTROL 537337101
13 SCREW CCRPANT 503212906
14 LEVER 537355801
15 SLEEVING BRACKET 544372701
16 DRŽÁK FILTRU 537314101
17 SCREW IHSCFT 503217550
18 FILTER 537337201
19 FRAME 537314201
20 FILTER COVER 537314401
21 SNAP 537387201
22 BELLOWS 544014701
23 LEVER 544014601
24 SCREW CCRPANT 503212906
25 LEVER 537349001
26 AIR DUCT 537341301
