Spare parts
>
Husqvarna
>
ENGINES & TRANSMISSIONS
>
KOHLER ENGINES KOHLER COURAGE 15 HP, SV470-0119, 2008-06
>
CYLINDER
Back to
KOHLER ENGINES
KOHLER COURAGE 15 HP, SV470-0119, 2008-06
CYLINDER
KOHLER ENGINES

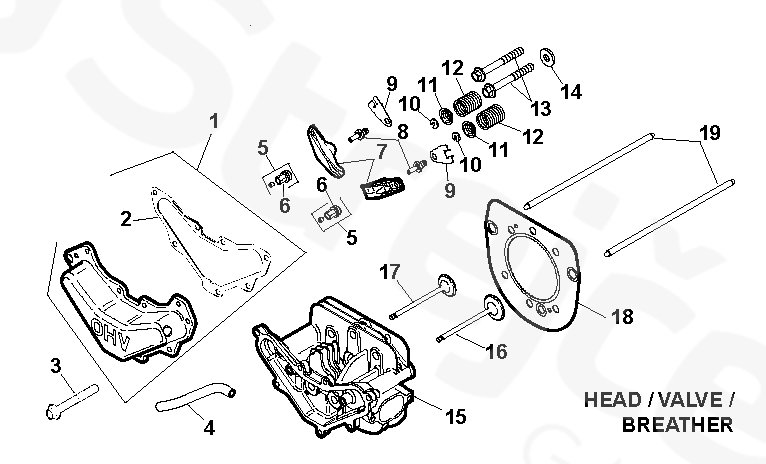

KOHLER COURAGE 15 HP, SV470-0119, 2008-06
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
KOHLER COURAGE 15 HP, SV470-0119, 2008-06
1
KIT, VALVE COVER (INCLU
(Includes Key Number 2)
531029878
2
GASKET
531029554
3
SCREW
531029555
4
HOSE
531029556
5
SHAFT PIVOT
531029557
6
SCREW
531029558
7
LEVER
531029559
8
SCREW
531029560
9
PLATE
531029561
10
RETAINER
531029562
11
HUB CAP
531029563
12
SPRING
531029564
13
SCREW
531029565
14
WASHER
531029566
15
CYLINDER
531029567
16
VALVE
531029568
17
VALVE
531029569
18
GASKET
(Includes Key Numbers 2, 13, 14 and Air Cleaner Base Gasket)
531029690
19
ROD
531029571
