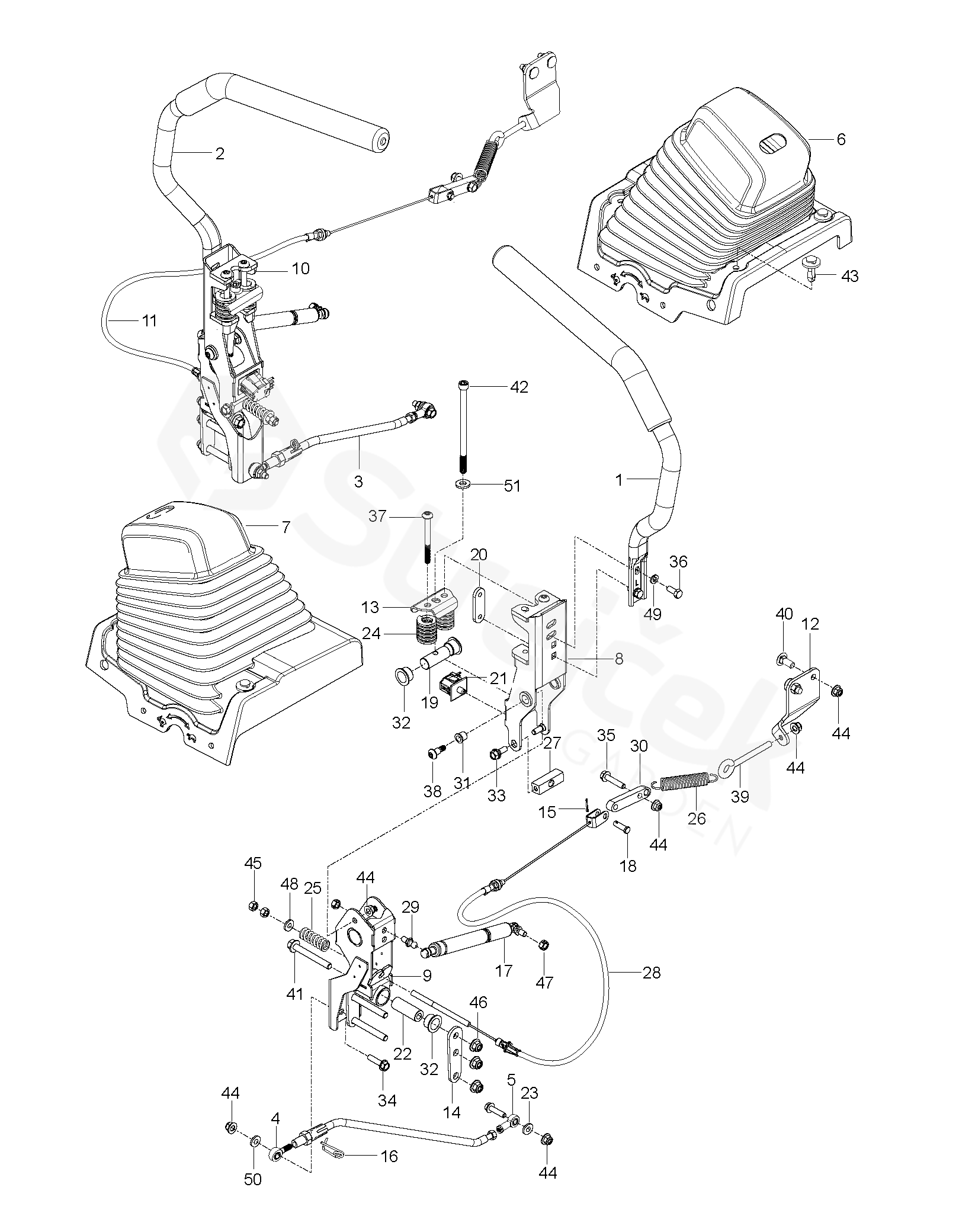

Z 560x Z 560x, 967669702-00, 2018-01
>
STEERING
Back to
Z 560x
Z 560x, 967669702-00, 2018-01
STEERING
Z 560x
Z 560x, 967669702-00, 2018-01
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
Z 560x, 967669702-00, 2018-01
1
LEVER
582475501
2
LEVER
582475502
3
CONTROL
592653702
4
ROD
588692502
5
JOINT
579764601
6
SERVICE KIT
591193301
7
SERVICE KIT
591193302
8
CARRIER w/ BEARINGS LEFT
w/BEARINGS LEFT
592653801
9
CARRIER
592653901
10
CONTROL
592724001
11
PARKING BRAKE
592653501
12
BRACKET
582477802
13
BRACKET
582476901
14
BRACKET
582475102
15
KOLÍČEK
532169484
16
CLIP
582551901
17
DAMPER
588775401
18
PIN
582477401
19
PIVOT
589505101
20
RETAINER
589489601
21
SWITCH
589500901
22
SPACER
582475001
23
SPACER
582711303
24
SPRING
582477001
25
SPRING
532151332
26
SPRING
582477701
27
YOKE
582477201
28
CABLE
582477501
29
10MM BALL STUD
539110607
30
BRACKET
582477601
31
BEARING
582476801
32
BEARING. FLANGE
539131518
33
BOLT
539110303
34
BOLT
525544001
35
HHFS
525465401
36
SCREW
539976934
37
SCREW
582477101
38
SCREW
582476401
39
EYE BOLT
539115574
40
SCREW
539990208
41
HHFS
577117701
42
SCREW
589505601
43
RIVET
582482901
44
BOLT RETAINER 3/8
539112899
45
NUT
539990223
46
MATICE
521996501
47
NUT
539990184
48
PODLOŽKA
539990692
49
PODLOŽKA
539990187
50
PODLOŽKA
819111116
51
NUT, 5/16-18, NYLOC
522023401
BRACKET
582477804
