Autoclip 530 SG Autoclip 530 SG (2019)

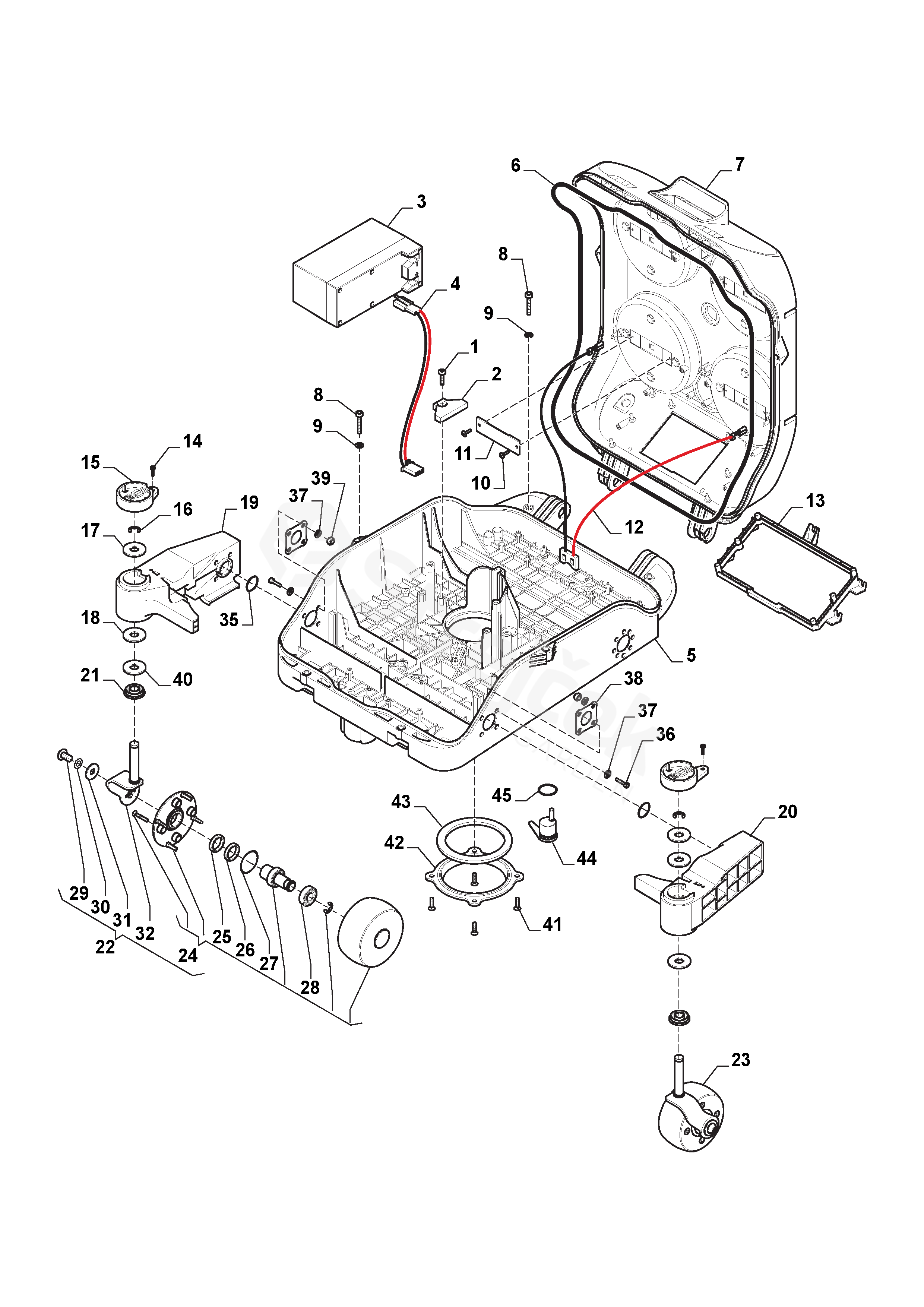

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For Autoclip 530 SG (2019)

1	Screw	112600309/0
2	Battery Clamp	1126-1304-01
3	Battery	1126-9138-01
4	Wiring harness	112600312/0
5	Body Work-Lower Lower	112600279/1
6	Gasket	112600275/0
7	Upper Cover Upper	112600350/0
9	Washer	112600222/0
10	Screw	112600306/0
11	Spacer	112600300/0
12	Recharg Cable	112600313/1
13	Support	112600287/0
14	Screw	112600307/0
15	Lift Board	112600284/0
16	Circlip	1126-1281-01
17	Washer	112600251/0
18	Washer	112600252/0
19	Wheel Fork	112600292/0
20	Wheel Fork	112600291/0
21	Dust Cover	112600248/0
22	Front Wheel Kit-Rh	112600285/0
23	Front Wheel Kit-Lh	112600282/0
24	Front Wheel	112600258/0
26	Washer	112600322/0
27	O-Ring	1126-1101-01
28	Bearing	1126-1100-01
29	Screw	1126-1283-01
30	Washer	1126-1104-01
31	Washer	1126-1105-01
32	Shaft, Left	112600283/0
35	O-Ring	112600311/0
36	Screw	112600310/0
37	Washer	1126-1445-01
38	Plate	112600301/0
39	Nut	112600158/0
40	Washer	112600323/0
41	Screw	1126-1327-01
42	Plate	112600126/0
43	Gasket	112600125/0
44	Plate	1126-7011-02
45	Gasket	112600129/0
46	Bushing	112600383/0
