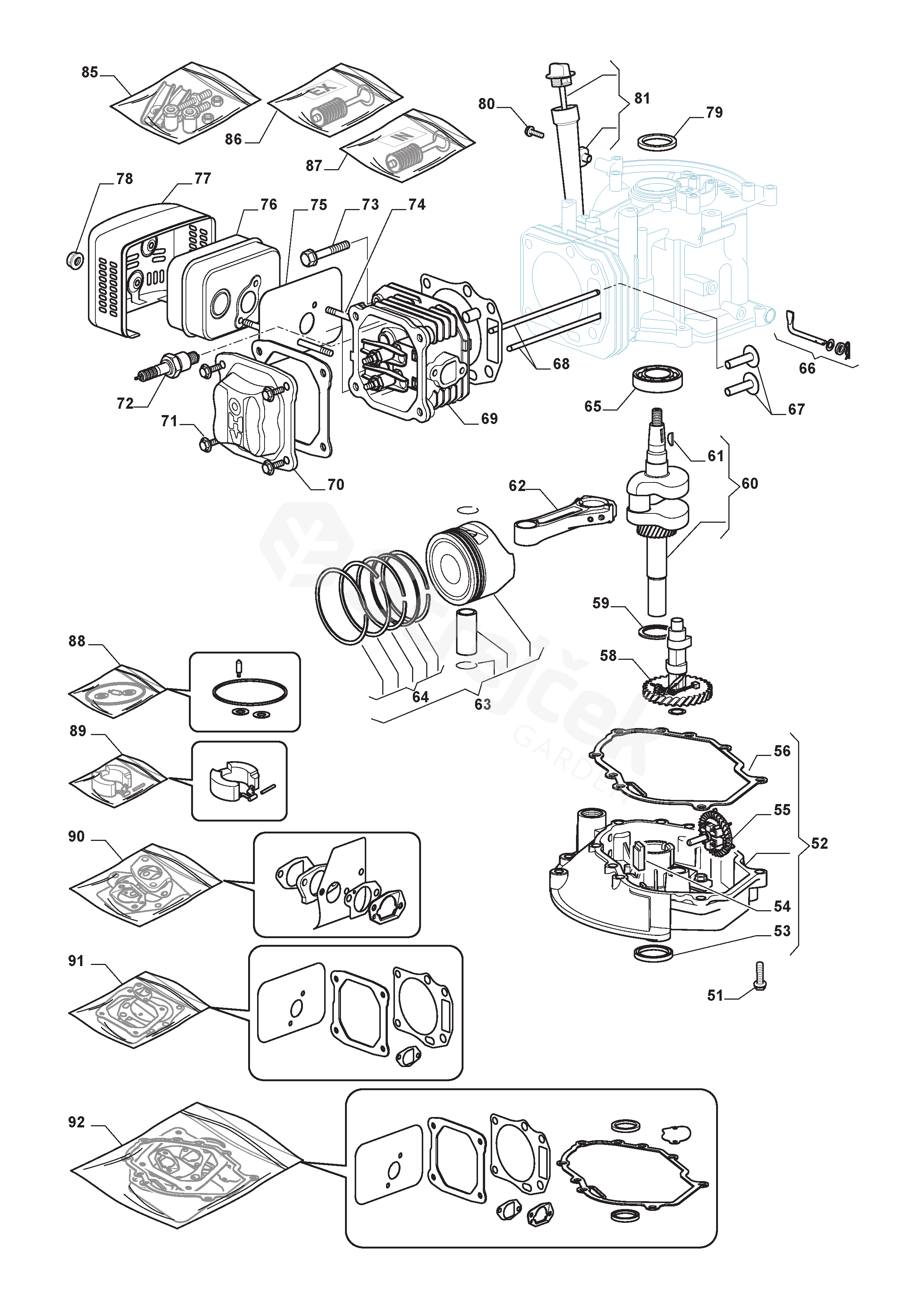

MULTICLIP RENTAL 50 S MULTICLIP RENTAL 50 S (2013)

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For MULTICLIP RENTAL 50 S (2013)

51	Screw	112674550/0
52	Crankcase Cover Assy	118550383/0
53	Oil seal	118550379/0
54	Grommet	118550775/0
55	Speed Governor Assy	118550312/0
56	Crankcase Gasket	118550380/1
58	Camshaft Assy	118550271/0
59	Washer	118550283/0
60	Crankshaft	118550281/0
61	Woodruff Key	118550288/0
62	Connecting Rod Assy	118550284/0
63	Piston Assy	118550278/0
64	Piston, Ring Set	118550286/0
65	Ball Bearing	118550280/0
66	Shaft, Governor Arm Assy	118550308/0
67	Valve Lifter Assy	118550291/0
68	Push Rods Assy	118550289/0
69	Cylinder Head Assy	118550244/0
70	Cover Comp., Head	118550296/1
71	Screw	112791213/1
72	Spark Plug	9400-0244-00
73	Screw	118550297/0
74	Stud Bolt	118550298/0
75	Muffler Gasket	118550270/0
76	Muffler	118550269/0
77	Muffler Guard	118550268/1
78	Nut	112292102/0
79	Oil seal	118550300/0
80	Screw	112674550/0
81	Oil Filler Assy	118550311/0
85	Valve Arm Set	118550273/0
86	Exhaust Valve Assy	118550294/0
87	Intake Valve Assy	118550292/0
88	Kit Repair	118550389/0
89	Kit Repair, Carburettor	118550388/0
90	Gasket Carburettor Assy	118550743/0
91	Cylinder Head Gasket Set	118550406/0
92	Engine Gasket Set	118550740/0
