Engine

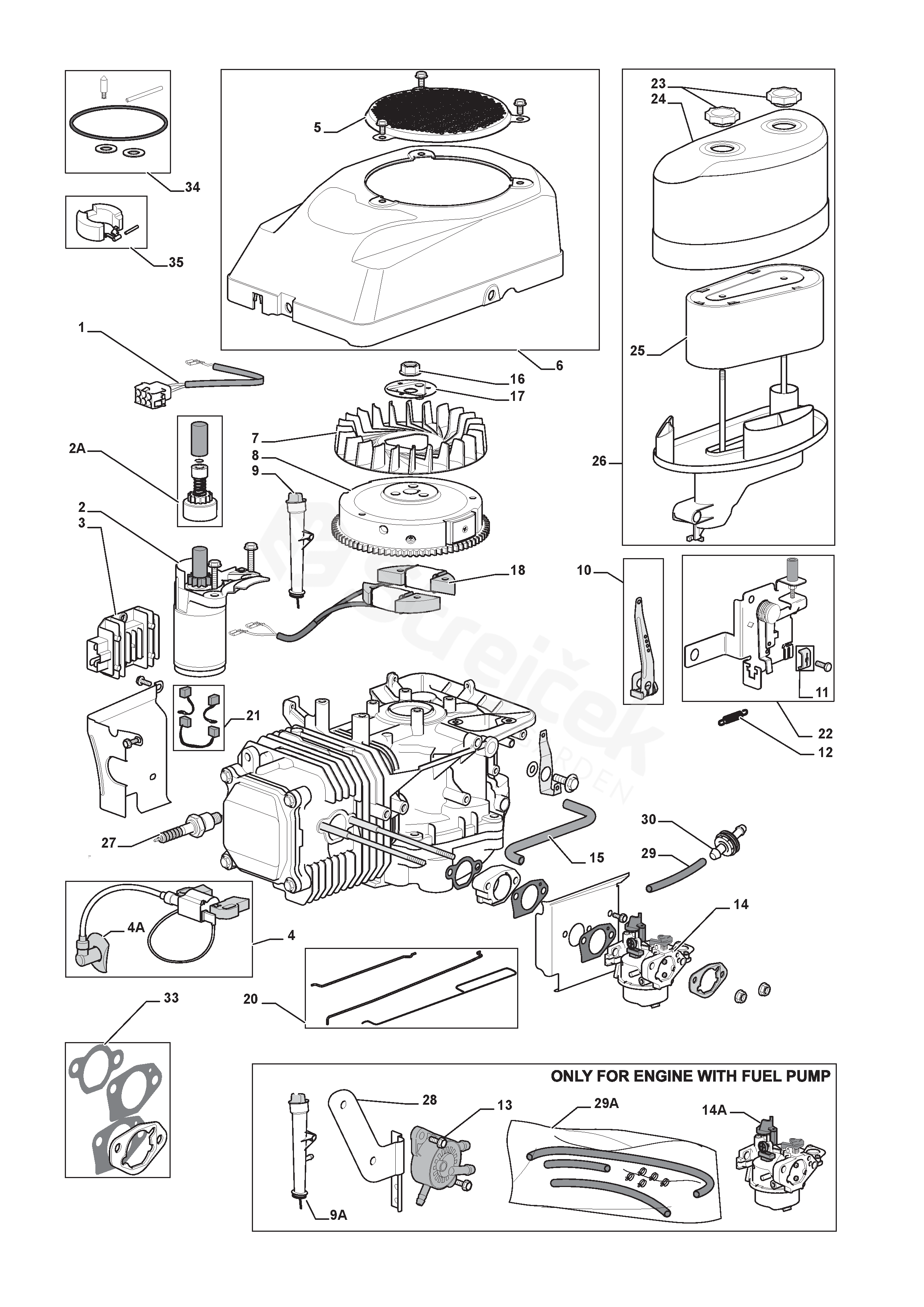

PARK COMPACT 14 PARK COMPACT 14 (2009) [13-6109-20]
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For PARK COMPACT 14 (2009) [13-6109-20]
1 Output Wire, Rectifier
WM14
118550207/0
2 Start Motor Assy
WM14
118550214/0
3 Rectfier
WM14
118550208/0
4 Electronic Coil
WM14
118550209/0
5 Fan cover
WM14
118550203/0
6 Cover Assy
WM14
118550215/0
7 Flywheel Fan
WM14
118550235/0
8 Flywheel Ass.Y
WM14
118550234/1
9 Oil Filler Assy
WM14
118550205/1
10 Arm Governor Assy
WM14
118550330/1
11 Casing Clamp
WM14
118550212/0
12 Spring
WM14
118550213/0
13 Fuel Pump Assy
w fuel pump _ WM14
118550349/1
14 Carburetor
WM14
118550374/0
15 Breather Fuel Pipe
WM14
118550225/1
16 Nut
WM14
118550237/0
17 Starter Cup
WM14
118550236/0
18 Coil Assy, Charge
WM14
118550210/1
20 Governor Rod Assy
WM14
118550239/1
21 Brushhold
WM14
118550332/1
22 Remote Control Assy
WM14
118550331/1
23 Knob
WM14
118550201/0
24 Air Cleaner Cover
WM14
118550200/0
25 Air Filter
WM14
118550199/0
26 Air Cleaner Assy
WM14
118550202/1
27 Spark Plug
Champion RC12YC _ WM14
9400-0244-00
28 Fuel Pump Stifferning
WM14
118550348/1
29 Fuel Pipe
WM14
118550432/0
30 Fuel Filter
WM14
118550354/1
33 Gasket Set
WM14
118550217/0
34 Carburettor Gasket Set
WM14
118550442/0
35 Kit Repair, Carburettor
WM14
118550440/0
14A Carburetor 118550375/0
29A Fuel Pipe 118550441/0
2A Kit Repair 118550365/1
4A Spark Plug Terminal 118550448/0
9A Oil Filler Assy 118550444/0
