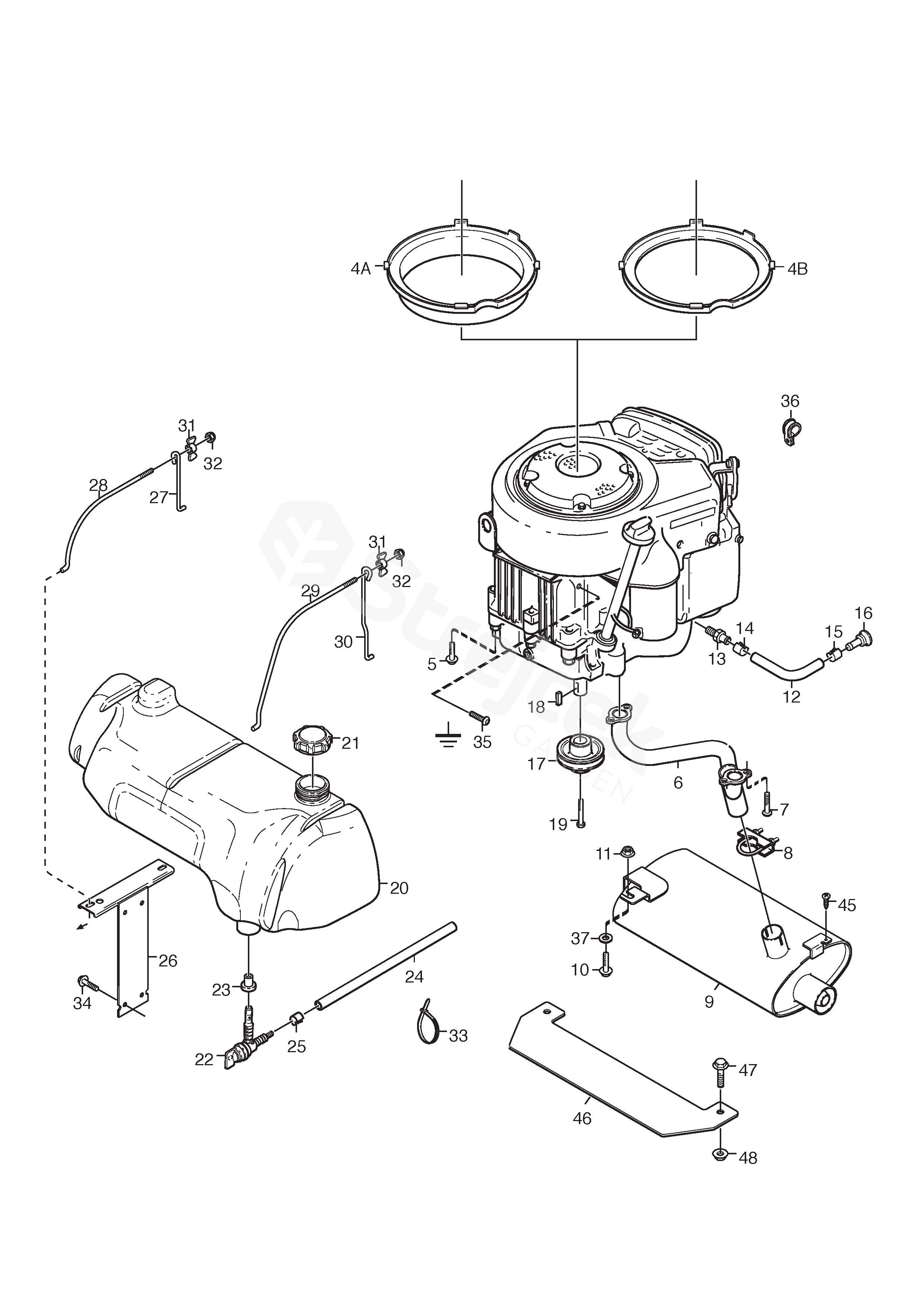

Engine
Park Pro 21 4W Park Pro 21 4WD (ISO) (2014)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For Park Pro 21 4WD (ISO) (2014)
5 Screw 9955-3725-16
6 Exhaust Tube Assy
Pro 23
1137-0083-01
7 Screw 9939-0820-16
8 Tube Clamp 9578-0011-01
9 Muffler Assy 1137-0073-01
10 Screw 9959-0820-16
11 Nut 9739-0831-22
12 Oil Drain Assy
L = 140 mm
1134-5827-01
13 Nipple 1134-5825-01
14 Hose clamp 9578-0023-04
15 Hose clamp 1134-3499-02
16 Plug 1134-5826-01
17 Engine Belt Pulley 1134-5865-01
18 Key 9600-0251-00
19 Screw
L = 76 mm
9987-5364-12
20 Fuel Tank
14 Liter
1134-5644-01
21 Fuel Tank Cap 1134-5532-01
22 Fuel Shut-Off Valve 1134-3224-01
23 Grommet 1134-3225-01
24 Fuel Tube
L = 460 mm
1134-2975-05
25 Hose clamp 9578-0023-02
26 Fuel Tank Bracket 1134-5615-01
27 Tank Loop 1134-5621-01
28 Tank Loop 1134-5622-01
29 Tank Loop 1134-5623-01
30 Tank Loop 1134-5765-01
31 Wing Nut 1134-4481-02
32 Lock Nut 9747-0631-02
33 Cable Holder 9579-0003-00
34 Screw 9945-0816-16
35 Screw 9939-0820-16
36 Tube Clamp 1134-0994-02
37 Washer 9699-0056-02
45 Screw 9893-0616-16
46 Deflector 1137-0072-01
47 Screw 9959-0820-16
48 Nut 9739-0831-22
