STIGA
>
Front Mowers
>
PARK PRO DIESEL PARK PRO DIESEL (2002)
>
Frame (Diesel Engine)
Back to
PARK PRO DIESEL
PARK PRO DIESEL (2002)

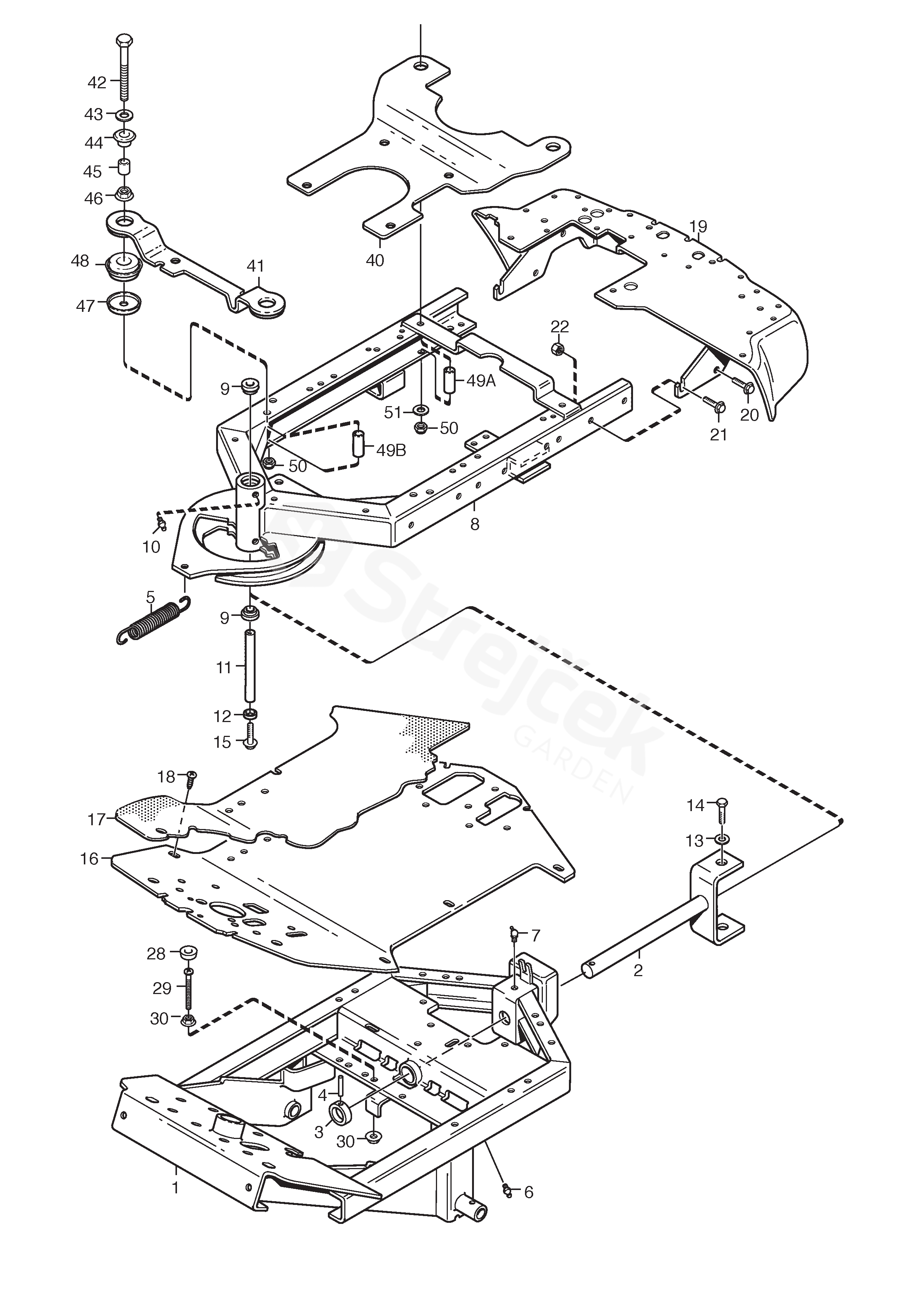

Frame (Diesel Engine)
PARK PRO DIESEL
PARK PRO DIESEL (2002)
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
PARK PRO DIESEL (2002)
1
Frame-Front
1134-3919-01
2
Fork
1134-3963-02
3
Pivot Shaft Stop
1134-0031-00
4
Locating Pin
9595-0262-00
5
Spring
1134-2171-01
6
Grease Dispenser
9501-0500-00
7
Grease Joint
9501-0502-00
8
Frame-Rear
1134-4913-01
9
Bearing
9547-0001-00
10
Grease Dispenser
9501-0500-00
11
Centre Shaft
1134-3968-01
12
Spacer
1134-0052-00
13
Washer
9699-0035-02
14
Screw
9959-1020-16
15
Screw
9959-1025-16
16
Floor Plate
1134-3965-01
17
Floor Mat
1134-4061-01
18
Screw
9893-0616-16
19
Rear Bumper
1134-4922-01
20
Screw
9945-0816-16
21
Screw
9959-0820-16
22
Nut
9739-0831-22
28
Rubber Buffer
1134-4975-01
29
Screw
9950-0570-12
30
Nut
9739-0531-22
40
Engine Support
1134-4916-01
41
Engine Support
1134-4918-01
42
Screw
9997-1011-06
43
Washer
9699-0030-02
44
Isolation Washer
1111-2453-01
45
Spacer
1134-4919-01
46
Nut
9739-1031-22
47
Support Cup
1134-4915-01
48
Vibration Absorber
1134-4920-01
50
Lock Nut
9747-1031-02
51
Washer
9699-0030-02
49A
Bushing
1134-0041-03
49B
Bushing
1134-0041-06
