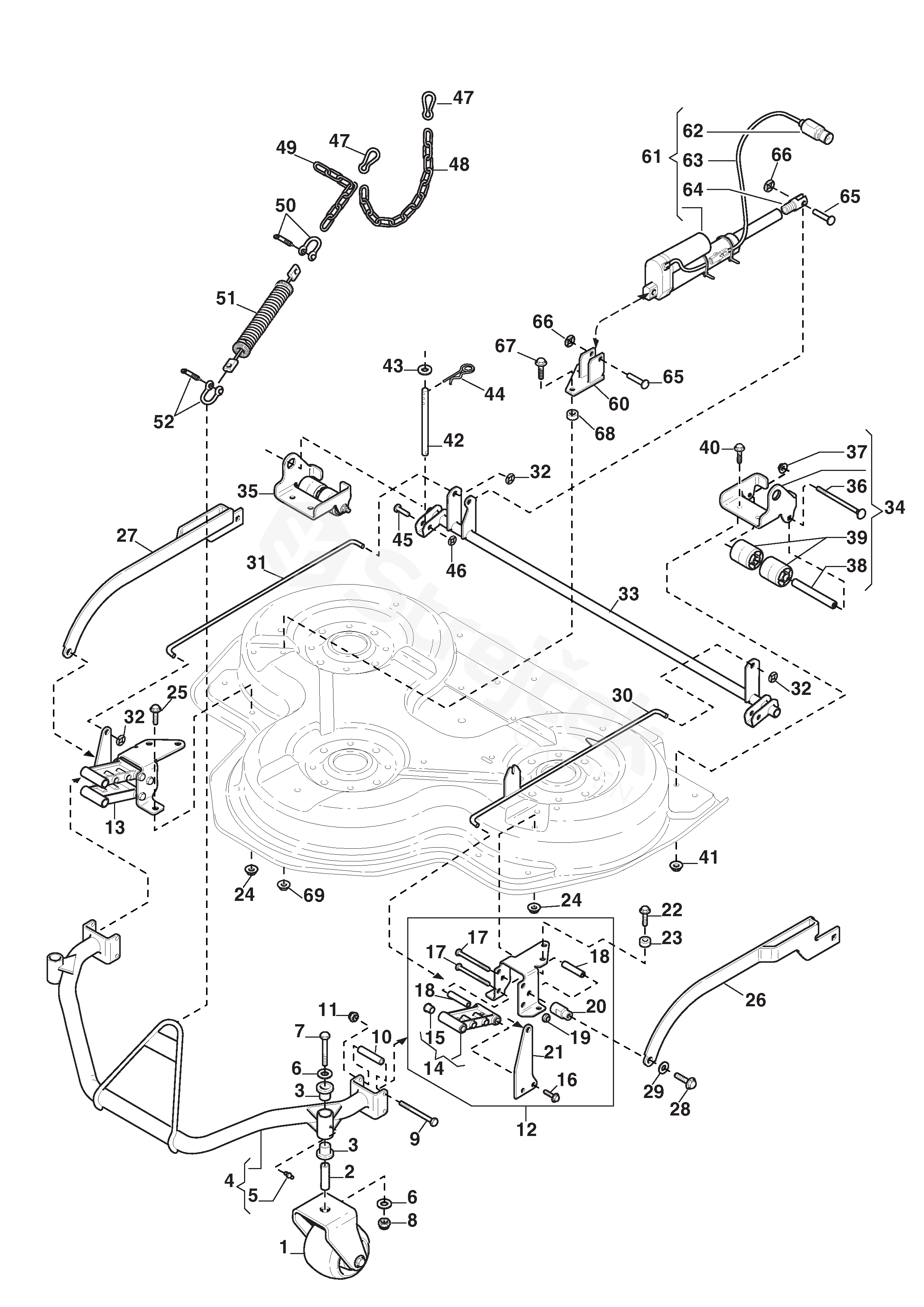

DECK 100 COMBI 3 EL Deck 100 Combi 3 EL (2017)
>
Controls
Back to
DECK 100 COMBI 3 EL
Deck 100 Combi 3 EL (2017)
Controls
DECK 100 COMBI 3 EL
Deck 100 Combi 3 EL (2017)
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
Deck 100 Combi 3 EL (2017)
1
Pivot Wheel Assy
1134-5884-01
2
Spacer
1134-5677-01
3
Bushing
137038009/0
4
Front Tube Assy
387869265/0
5
Grease Dispenser
112379511/0
6
Washer
9699-0030-02
7
Screw
9997-1090-12
8
Nut
112156602/0
9
Screw
9997-0880-16
10
Shaft
1137-0151-01
11
Nut
112155000/0
12
Linkage Assy L
Inkl. pos 14 - 21
387001015/0
13
Linkage Assy R
Inkl. pos 14 - 21
387001013/0
14
Slewing Bracket Assy
Inkl. pos 15
1137-0199-01
15
Bushing
Sats 8 st/kit of 8
1134-9155-01
16
Screw
9997-0820-16
17
Screw
9997-0880-16
18
Shaft
1137-0151-01
19
Nut
112155000/0
20
Spacer
1137-0154-01
21
Pivot Plate
1137-0200-01
22
Screw
112691115/0
23
Spacer
1137-0155-01
24
Nut
112154220/0
25
Screw
112800815/0
26
Cutting Deck Arm Assy Lh
387106265/0
27
Cutting Deck Arm Assy Rh
387106263/0
28
Screw
112800815/0
29
Washer
112523060/0
30
Push rod
1137-0162-01
31
Push rod
1137-0160-01
32
Washer
112604903/0
33
Rear Axle-Yellow
1134-6197-01
34
Roller-Lh W.Bracket
Inkl. pos 36 - 39
1134-6282-01
35
Roller-Rh W.Bracket
Inkl. pos 36 - 39
1134-6282-02
36
Screw
9897-0813-02
37
Nut
112154220/0
38
Wheel Axle
1134-4318-01
39
Support Rollers
Sats 2 st/kit of 2
1134-9126-01
40
Screw
112800815/0
41
Nut
112154220/0
42
Stud
1134-6198-01
43
Washer
9699-0104-02
44
Spring Pin
9598-2001-02
45
Rivet
9646-0098-22
46
Crown Fastener
112604899/0
47
Snap Hook
1134-5528-01
48
Chain
12 links
1134-6368-03
49
Chain
7 links
1134-6368-02
50
Lift link
1134-2629-01
51
Spring
1134-6365-02
52
Lift link
1134-2629-01
60
Bracket Assy
1137-0168-01
61
Electric Lifter
118001004/0
62
Male Terminal
1134-6182-01
63
Cable
L = 490 mm
1134-6418-02
64
Rod End
1134-6373-01
65
Rivet
9646-0098-22
66
Locking washer
9675-0012-02
67
Screw
112691115/0
69
Spacer
1137-0155-01
