Spare parts > STIGA > Front Mowers > VILLA 92M VILLA 92M (2001) > Frame
Back to

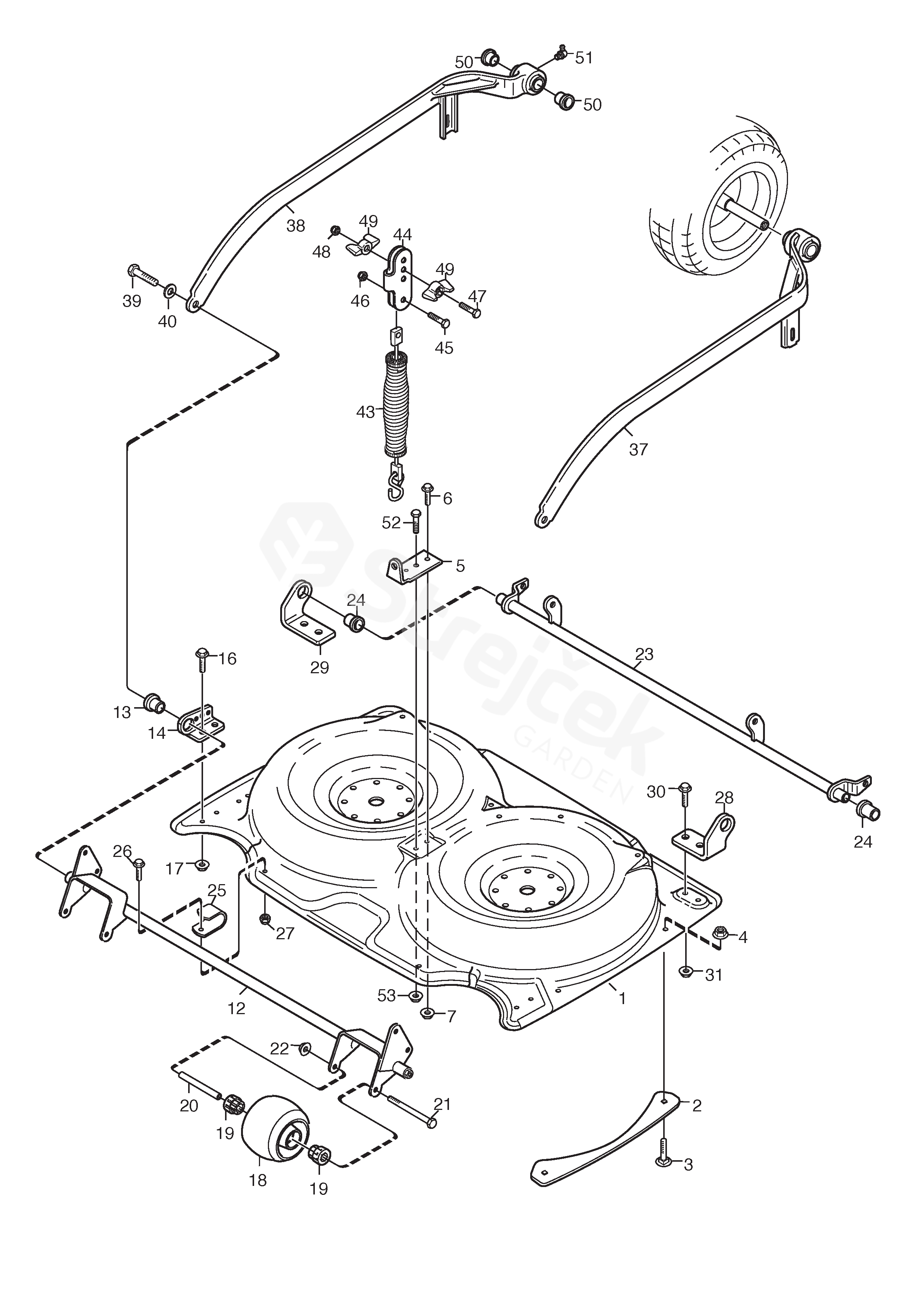

Frame
VILLA 92M VILLA 92M (2001)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For VILLA 92M (2001)
1 Casing 1134-4530-01
2 Guide Plate 1134-4323-01
3 Screw 9897-0616-16
4 Nut 9739-0631-22
5 Lift Bracket 1134-4320-01
6 Screw 9959-0820-16
7 Nut 9739-0831-22
12 Front Axle 1134-4531-01
13 Bearing
Sats 4 st/kit of 4 		1134-9024-01
14 Bearing Holder-Lh 1134-4292-01
16 Screw 9959-0816-16
17 Nut 9739-0831-22
18 Wheel 1134-4284-01
19 Bearing 1134-4319-01
20 Wheel Axle 1134-4318-01
21 Screw 9997-0812-02
22 Nut 9739-0831-22
23 Rear axle 1134-4300-01
24 Bearing
Sats 4 st/kit of 4 		1134-9024-01
25 Support 1134-4689-01
26 Screw 9959-0616-16
27 Lock Nut 9747-0631-02
28 Attachment-Lh 1134-4533-01
29 Attachment-R.H. 1134-4533-02
30 Screw 9959-0816-16
31 Nut 9739-0831-22
37 Mower Deck Arm, Left 1134-4534-01
38 Mower Deck Arm, Right 1134-4534-02
39 Screw 9997-1016-16
40 Washer 9699-0030-02
43 Spring 1134-4574-02
44 Spring 1134-4577-01
45 Screw 9997-0825-16
46 Nut 9747-0831-02
47 Screw 9997-0835-12
48 Nut 9747-0831-02
49 Wing Nut 1134-4481-01
50 Bushing 137038009/0
51 Grease Joint 9501-0502-00
52 Screw 9997-0625-16
53 Nut 9739-0631-22
