Spare parts > STIGA > Lawn Tractor > ESTATE MASTER ESTATE MASTER (2003) [13-2511-13] > Body
Back to

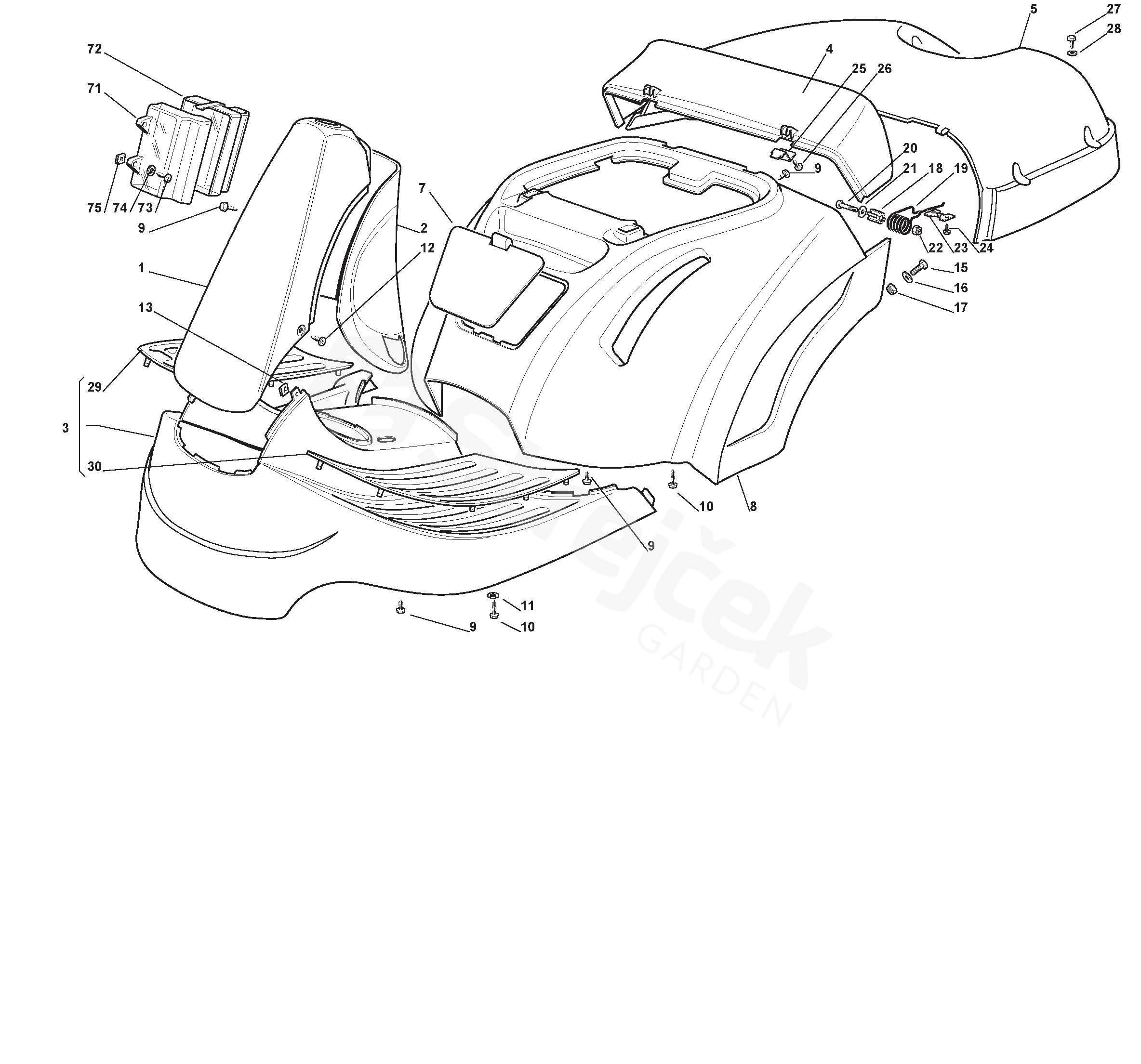

Body
ESTATE MASTER ESTATE MASTER (2003) [13-2511-13]
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For ESTATE MASTER (2003) [13-2511-13]
1 Yellow Steering Column Protection 184598077/0
2 Rear Steering Column Protection 127600117/0
3 Footboard Cover, Yellow 184110131/0
4 Yellow Fixed Grass-catcher Cover 127110360/0
5 Grass-Catcher Cover, Mobile Yellow 127110361/0
7 Front Cover Yellow 127109516/0
8 Yellow Wheels Cover 384110132/1
9 Screw
From 01-September-2014 		112735402/0
10 Screw 112735410/0
11 Washer 112523040/0
12 Screw
From 01-September-2014 		112727790/0
13 Plate 112437503/0
15 Screw 112791200/1
16 Washer 112523040/0
17 Nut 112154510/0
18 Bushing 127047003/0
19 Spring 127430551/1
20 Screw 112691200/0
21 Washer 112523070/0
22 Nut 112155000/0
23 Plate 327546001/0
24 Screw
From 01-September-2014 		112735402/0
25 Plate 327546003/0
26 Screw
From 01-September-2014 		112735406/0
27 Screw
From 01-September-2003 		112729601/1
28 Washer 112521331/0
29 Right Footboard Cover 127110304/0
30 Left Footboard Cover
From 01-September-2014 		127110305/0
71 Upper Guard 125600020/0
72 Lower Guard 125600021/1
73 Screw 112728460/0
74 Washer 112521320/0
75 Plate 112437502/0
