Spare parts
>
STIGA
>
Lawn Tractor
>
ESTATE BASIC ESTATE BASIC (2006) [13-2572-11]
>

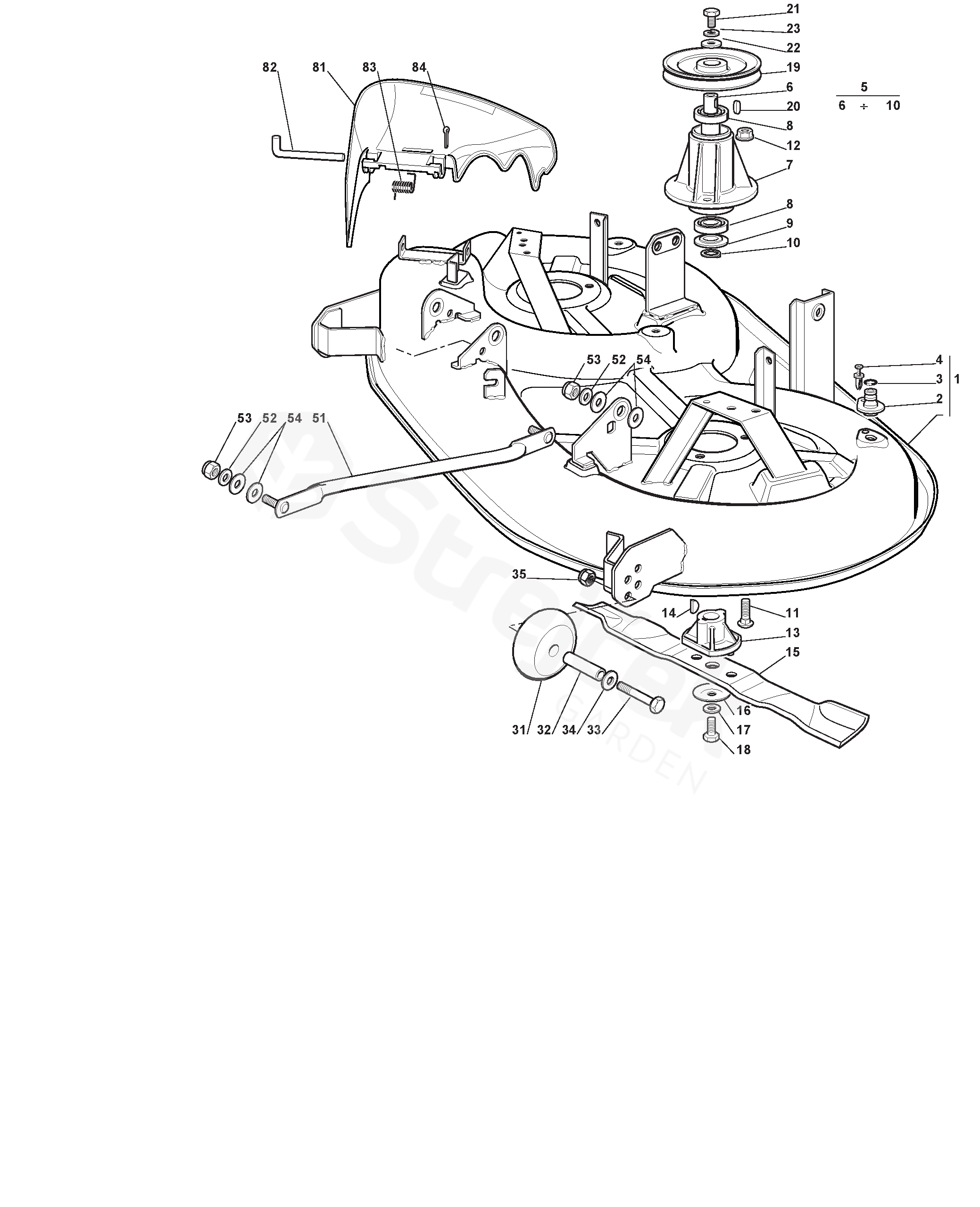

Cutting Plate
Back to
ESTATE BASIC
ESTATE BASIC (2006) [13-2572-11]
Cutting Plate
ESTATE BASIC
ESTATE BASIC (2006) [13-2572-11]
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
ESTATE BASIC (2006) [13-2572-11]
1
Cutting Plate Black
382564041/0
2
Washing Cutting Deck Connection
125033060/0
3
Or Ring
119035000/0
4
Rivet
112500030/0
5
Left Flange Ass.Y
382207202/0
6
Shaft
125020802/0
7
Blade Shaft Support
125207200/0
8
Bearing
119216032/0
9
Dust Cover Disc
325160501/0
10
Seeger
112609260/0
11
Screw
112818700/0
12
Nut
112154210/0
13
Blade Holder
125463200/0
14
Key
112139100/0
15
Left Blade, Mulching
182004346/0
16
Elastic Disc
122160400/0
17
Washer
112523080/0
18
Screw
112735694/0
19
Pulley
125601571/0
20
Feather
112139480/0
21
Screw
112793102/0
22
Washer
125670007/0
23
Grower
112583500/0
31
Anti Scalp Wheel Ø 80
182700002/0
32
Pin
125510072/0
33
Screw
112692050/0
34
Washer
112523060/0
35
Nut
112293201/0
51
Equalizer Rod
382000474/1
52
Washer
To 31-August-2003
112523060/0
53
Nut
112156602/0
54
Washer
325670008/1
81
Stone Guard
125600056/0
82
Fulcrum Pin
125510073/0
83
Spring
125430242/0
84
Cotter Pin
112141418/0
