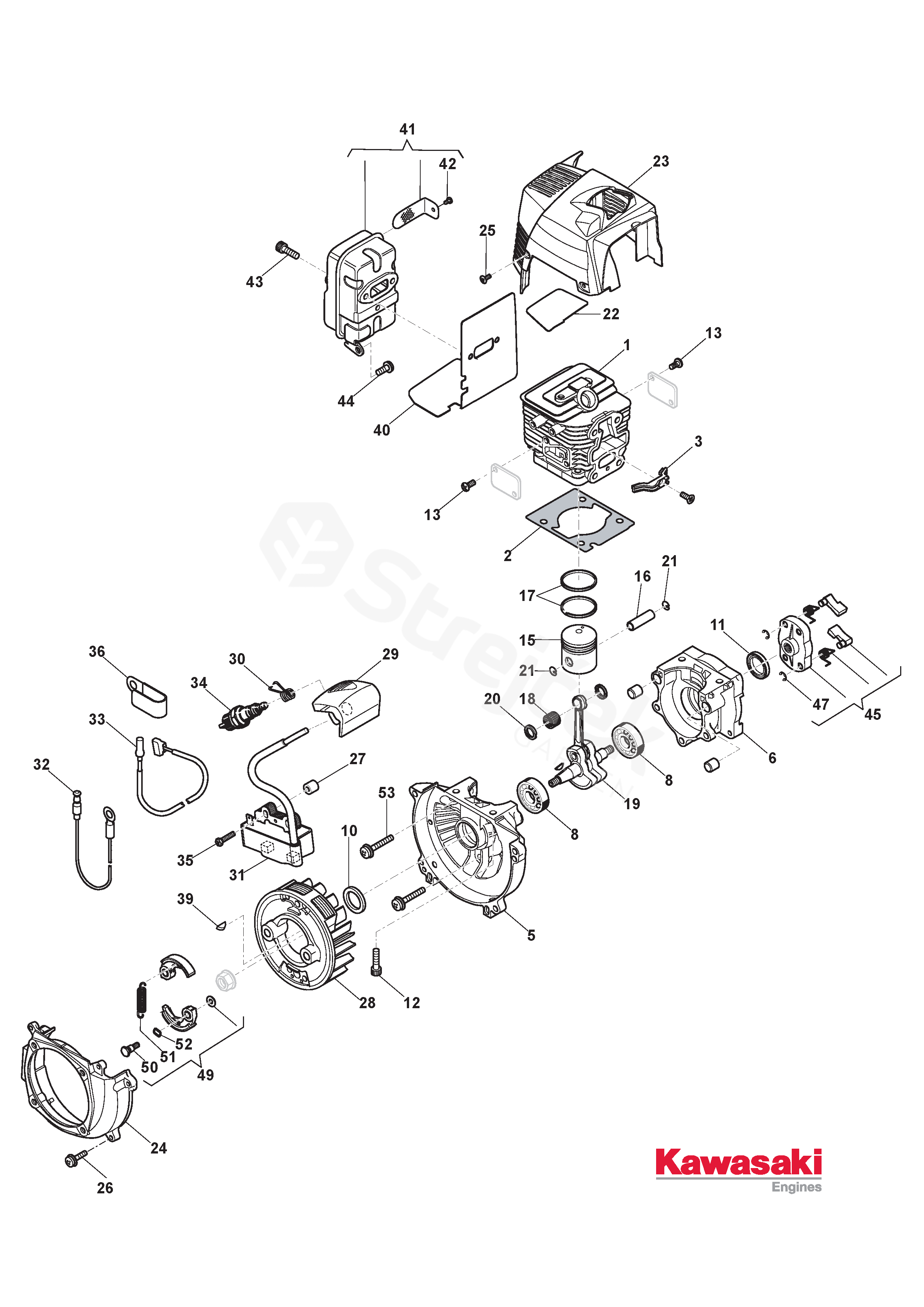

SBC 635 K SBC 635 K (2017)

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For SBC 635 K (2017)

1	Cylinder	118801958/0
2	Cylinder Gasket	118801775/0
3	Cap	118801783/0
5	Crankcase	118801821/0
6	Crankcase	118801982/0
8	Bearing	119216038/0
10	Oil seal 12X22X4.5	118801920/0
11	Oil seal	118801993/0
12	Screw	2135030
13	Screw	123878020/0
15	Piston	118801975/0
16	Piston Pin	118801797/0
17	Piston Ring	118801802/0
18	Bearing	118801807/0
19	Crankshaft	118801886/0
20	Spacer	118801908/0
21	Washer, Piston Pin	118801913/0
22	Pad	118801989/0
23	Yellow Cylinder Cover	118802005/0
24	Housing	118801896/0
26	Screw	2135040
27	Insulator	118801830/0
28	Flywheel	118801838/0
29	Spark Plug Cover	118801985/0
30	Spark Plug Spring	3657050
31	Electronic Coil Engine TJ035-LS52	118805173/0
32	Earth Cable	118801851/0
33	Coil-Switch Cable	118801986/0
34	Spark Plug	3210024
35	Screw	2132510
36	Clamp	118801942/0
39	Flywheel Key	3151010
40	Muffler Gasket	118801776/0
41	Muffler	118801869/0
42	Screw	118801906/0
44	Screw	2135180
45	Starter Pulley	118801872/0
47	Snap Ring	118801912/0
49	Clutch Ass.Y	118801811/0
50	Pin	118801918/0
51	Spring	118801932/0
52	Washer	118801956/0
53	Screw	2135050
