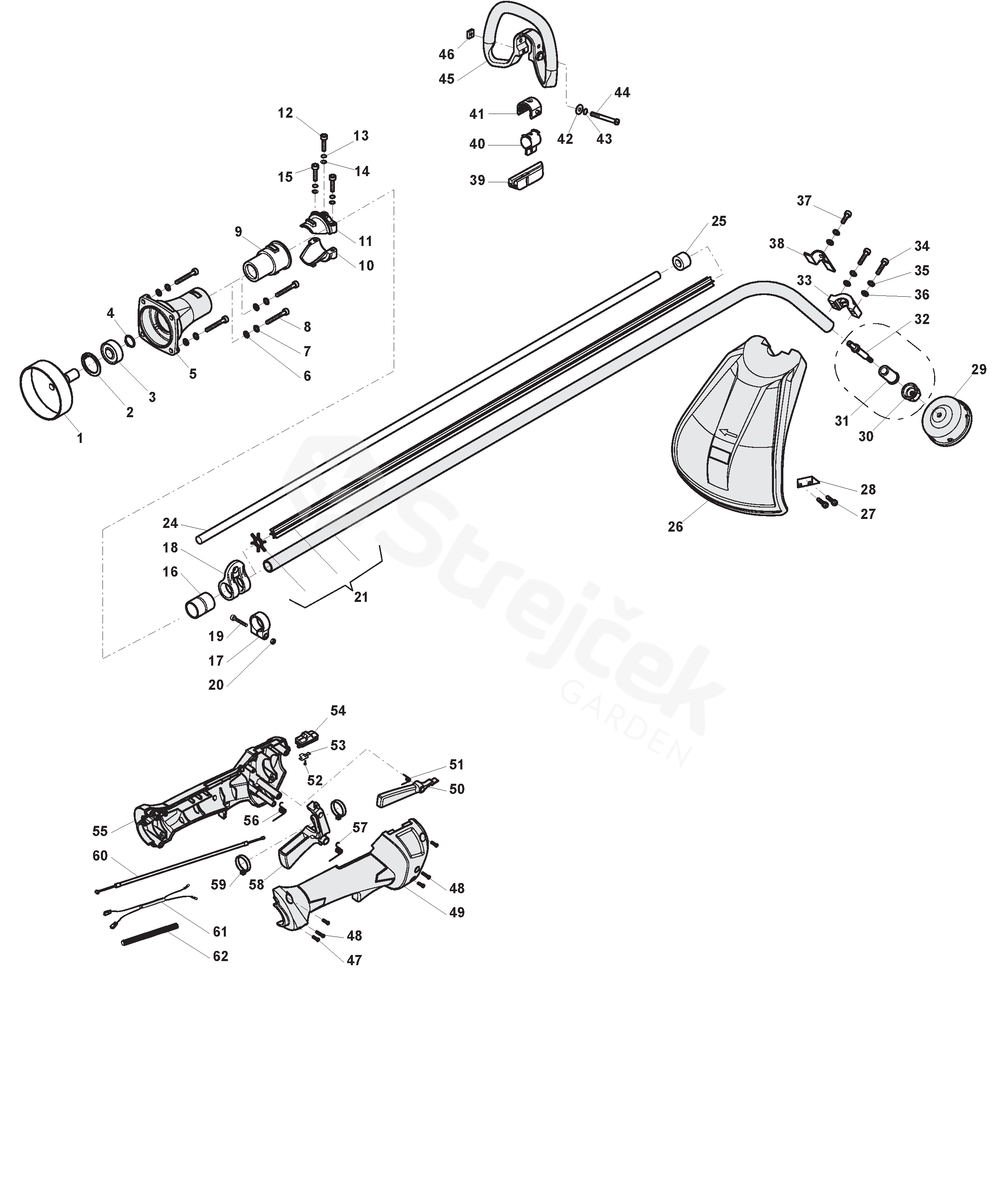

Spare parts > STIGA > Trimmer/Brushcutter > SGT 627 K SGT 627 K (2014) > Transmission
Back to
Transmission
SGT 627 K SGT 627 K (2014)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For SGT 627 K (2014)
1 Clutch Drum 118802459/0
2 Seeger 112610800/0
3 Bearing 119216048/0
4 Seeger 112609200/0
5 Output Block 118802458/0
6 Washer 112521330/0
7 Washer 112521330/0
8 Screw 112727791/0
9 Reduction 118802582/0
10 Lower Support 118802584/0
11 Upper support 118802583/0
12 Screw 112727796/0
13 Washer 112521320/0
14 Washer 112521320/0
15 Screw 2132550
16 Plastic Bushings 118802586/0
17 Harness Support 118802585/0
18 Harness Support 118802587/0
19 Screw 112727791/0
20 Nut 112291000/0
21 Transmission Pipe Assy 118802529/1
24 Drive Shaft 118802528/0
25 Limit ring 118802601/0
26 Safety Cover Assy 118802322/0
27 Screw 123878121/0
28 Cutting block 118802532/0
29 Hedges Nylon Head 118802313/0
30 Cap nut 118802600/0
31 Connected sets 118802530/0
32 Output Shaft 118802531/0
33 Clamping block 118802581/0
34 Screw 2132550
35 Washer 112521320/0
36 Washer 112521320/0
37 Screw 112727790/0
38 Connecting board 118802533/0
39 Protective front handle 118802535/0
40 Locking Collar 118802538/0
41 Rubber sleeve 118802536/0
42 Washer 112523020/0
43 Washer 112521320/0
44 Screw 112727798/0
45 Front handle, Grey 118802534/0
46 Nut 112154320/0
47 Screw 123878020/0
48 Screw 112727796/0
49 Right Handgrip, Grey 118802471/0
50 Trigger control, Yellow 118802472/0
51 Torsion Spring 118802562/0
52 Screw 2123070
53 Flameout Reed 118802468/0
54 Flameout switch, Red 118802469/0
55 Left Handgrip, Grey 118802470/0
56 Spring 118802475/0
57 Spring 118802474/0
58 Trigger Lever, Yellow 118802473/0
59 Fixing ring 118802479/0
60 Throttle Cable 118802476/0
61 Flame lines 118802477/1
62 Conductor casing 118802478/0
