Spare parts
Everything for your machines
Spare parts
>
STIGA
>
Chainsaw
>
SP 35 SP 350 (14) (2010)
>
Engine
Back to
SP 35
SP 350 (14) (2010)
Engine
SP 35
SP 350 (14) (2010)

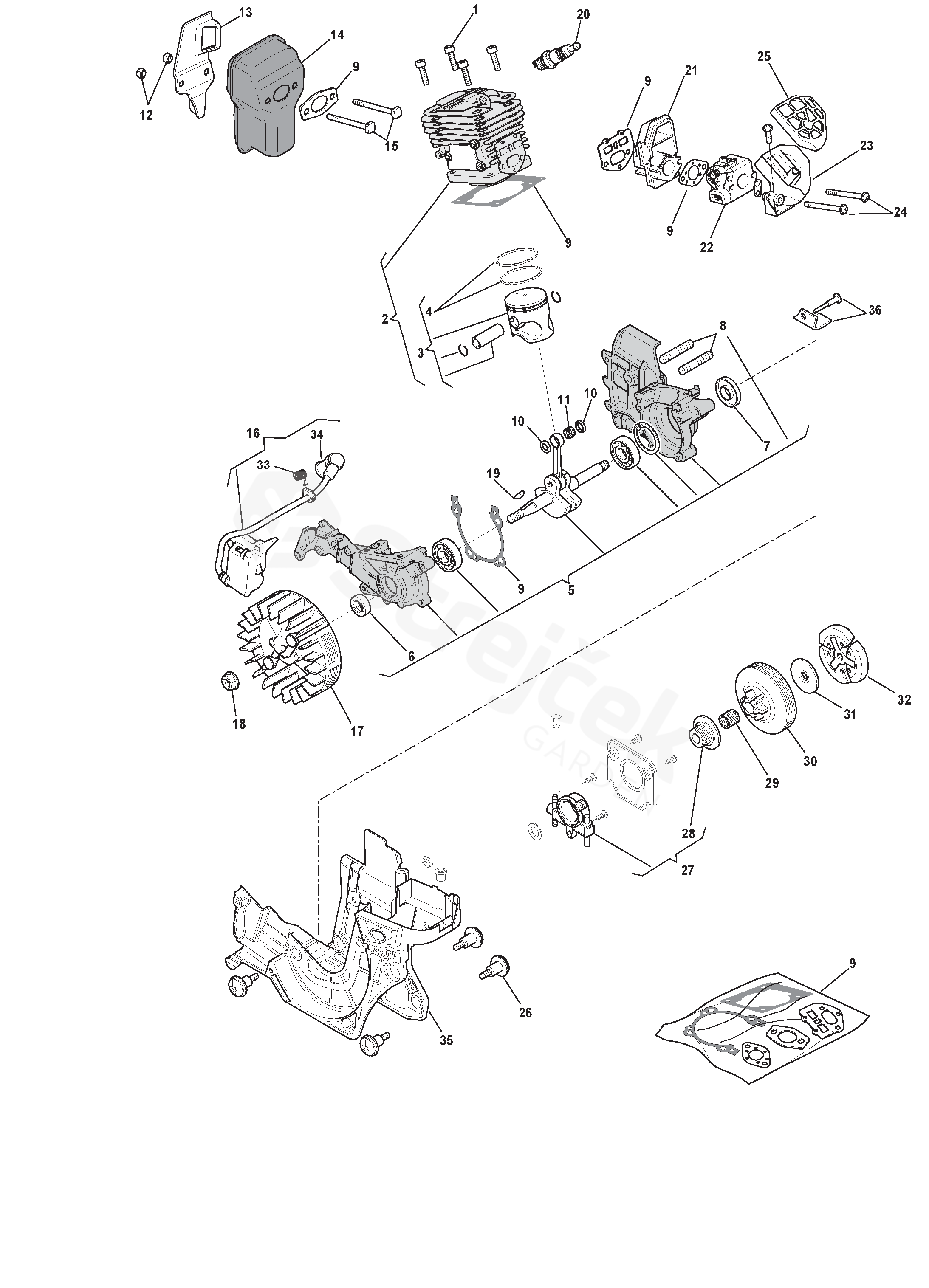

Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
SP 350 (14) (2010)
1
Screw
183878032/0
2
Cylinder - Piston Ass'Y
183070002/0
3
Piston Assy
183590002/0
4
Piston Ring
183303509/0
5
Short Block Engine
183275300/0
6
Seal Ring
119035154/0
7
Seal Ring
119035155/0
8
Screw
123878031/0
9
Cilynder Gasket Assy
183303508/0
10
Washer
123652504/0
11
Needle Bearing
123235002/0
12
Nut
2432040
13
Deflector
123140056/0
14
Muffler Assy
183740001/0
15
Screw
123878028/0
16
Electronic Coil
123044003/0
17
Flywheel Ass.Y
183880003/0
18
Nut
112154200/0
19
Flywheel Key
123072000/0
20
Spark Plug
123051000/0
21
Intake Manifold
123073504/0
22
Carburetor
123054017/0
23
Intake Manifold Assy
123073505/0
24
Screw
123878019/0
25
Air Filter
123220004/0
26
Screw
123878033/0
27
Oil Pump Assy
183594504/0
28
Screw
123878030/0
29
Needle Bearing
123235001/0
30
Clutch Drum Assy
123050004/0
31
Washer
123657008/0
32
Clutch Ass.Y
183215002/0
33
Spark Plug Spring
3657050
34
Spark Plug Cap
3748880
35
Crankcase
123057004/0
36
Chain Guard
183303510/0
