Spare parts > STIGA > Tiller > SRC 795 RB SRC 795 RB (2015) [212951122/POL] > Transmission
Back to

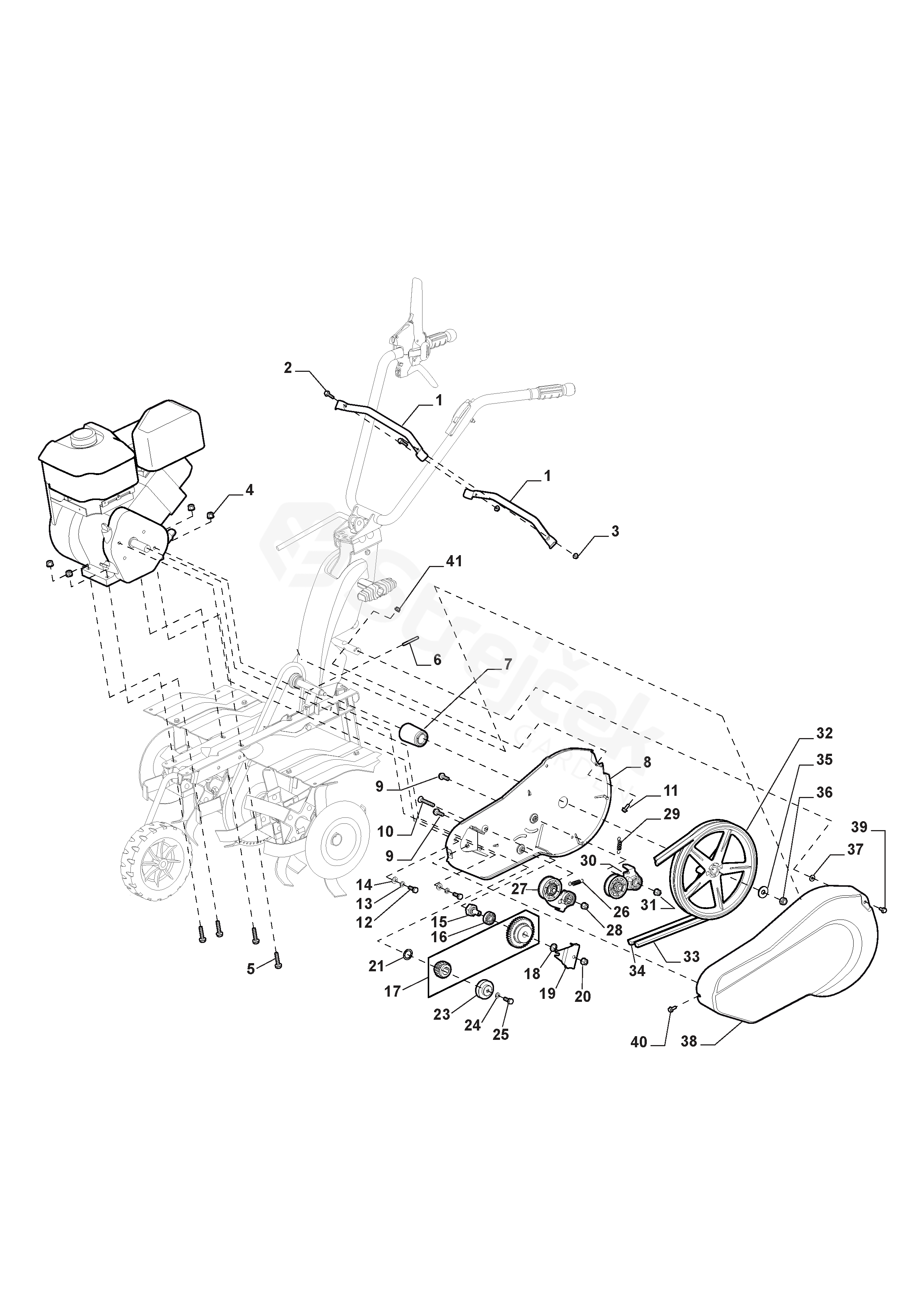

Transmission
SRC 795 RB SRC 795 RB (2015) [212951122/POL]
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For SRC 795 RB (2015) [212951122/POL]
1 Support 118802981/0
2 Screw 112791500/0
3 Nut 112154510/0
5 Screw 112691115/0
6 Pin 118803015/0
7 Guard 118802998/0
8 Transm.Plate 118802975/0
9 Screw 9959-0825-16
10 Screw 118803019/0
11 Screw 9959-0616-16
12 Screw 9987-5116-16
13 Washer 9699-0028-02
15 Shaft 118802993/0
16 Ball Bearing 9549-0001-00
17 Sprocket 1483-2175-01
18 Spacer 1483-2145-01
19 Mounting plate 118802994/0
20 Nut 112155000/0
21 Spacer 1483-2117-01
22 Toothed Wheel 1483-2176-01
23 Engine Pulley 118802973/0
25 Screw 1483-2283-01
26 Spring 1483-2207-01
27 Tension Arm 118802996/0
30 Tension Arm 118802997/0
32 Belt Pulley 118802995/0
33 Belt 1483-2149-01
34 Drive Belt 118802965/0
35 Washer 9699-0105-02
36 Lock Nut 9747-1031-02
37 Washer 118803014/0
38 Belt Guard 118802976/0
40 Screw 112791400/0
41 Lock Nut 9747-0631-02
