Spare parts > Alpina > Trimmer/Brushcutter > TB 420 D TB 420 D (2016) > Engine
Back to
Engine

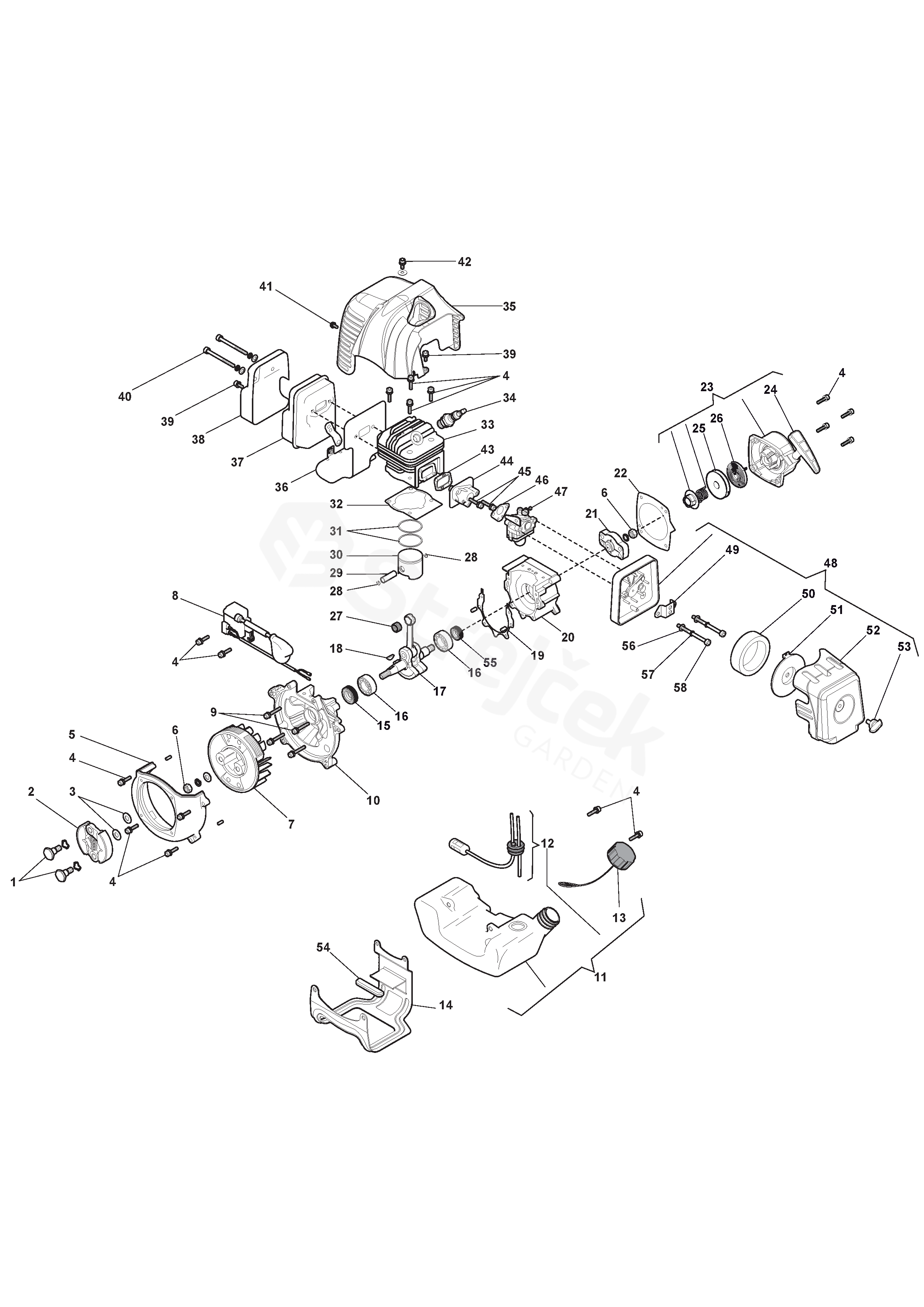

TB 420 D TB 420 D (2016)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For TB 420 D (2016)
1 Screw 118801189/0
2 Clutch Ass.Y 118801181/0
3 Washer 2321230
4 Screw 2135030
5 Transmission Support Case 118801214/0
6 Nut 2670120
7 Flywheel Ass.Y 118801211/0
8 Electronic Coil 118801209/0
9 Screw 2135050
10 Crank Case 118801217/0
11 Fuel Tank 118801212/0
12 Fuel Pipe Set 118801392/0
13 Fuel Cap Assy 118801393/0
14 Support 118801207/0
15 Seal Ring 118801197/0
16 Ball Bearing 3112040
17 Crankshaft 118801213/0
18 Flywheel Key 123072002/0
19 Crankcase Gasket 118801201/0
20 Crank Case 118801218/0
21 Starter Cup Ass.Y 118801191/0
22 Gasket 118801193/0
23 Starter Assy 118801186/0
24 Starter Handle 118802161/0
25 Starter Pulley 118802162/0
26 Starter Spring 118802163/0
27 Needle Bearing 118801195/0
28 Washer, Piston Pin 118801196/0
29 Piston Pin 118801199/0
30 Piston 118801216/0
31 Piston Ring 118801198/0
32 Cylinder Gasket 118801202/0
33 Cylinder 118801215/0
34 Spark Plug 3210024
35 Black Cylinder Cover 118802115/0
36 Muffler Gasket 118801221/0
37 Muffler 118801222/0
38 Muffler Guard 118801219/0
39 Screw 2135180
40 Screw 118801180/0
41 Screw 123878020/0
42 Screw 2135040
43 Intake Manifold Gasket 118801204/0
44 Intake Manifold 118801200/0
45 Screw 2135060
46 Intake-Carb Gasket 118801203/0
47 Carburetor 118801208/0
48 Air Filter Assy Yellow 118802159/0
49 Deflector 118801525/0
50 Air Filter 118801526/0
51 Plate 118802110/0
52 Air Cleaner Cover,Yellow 118802160/0
53 Knob 118801528/0
54 Rubber Gasket 118801192/0
55 Seal Ring 118801188/0
56 Washer 2312020
57 Washer 2330020
58 Screw 2135260
