Spare parts
>
Mountfield
>
Lawn Mower
>
MOUNTFIELD 45 MOUNTFIELD 45 (2005)
>

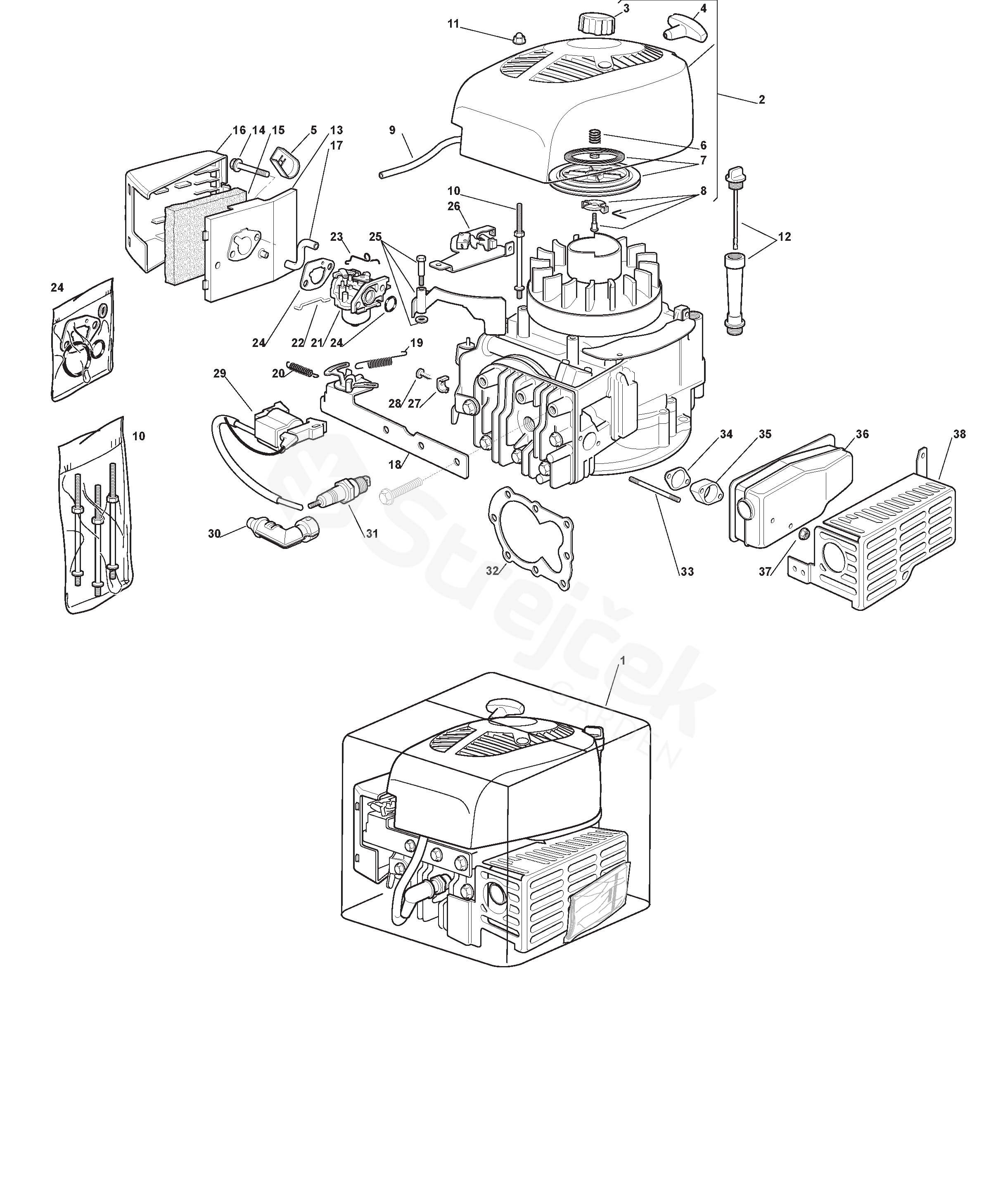

Engine - ST. SV150
Back to
MOUNTFIELD 45
MOUNTFIELD 45 (2005)
Engine - ST. SV150
MOUNTFIELD 45
MOUNTFIELD 45 (2005)
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
MOUNTFIELD 45 (2005)
1
Engine Sv150
118550034/0
2
Starter Assy
118550000/0
3
Fuel Cap
118550001/0
4
Starter Handle
3749437
5
Deflector
118550036/0
6
Starter Spring
118550002/0
7
Starter Ass.Y
118550003/0
8
Starter Pawl
118550004/0
9
Fuel Tube
118550005/0
10
Stud Bolt
118550006/0
11
Nut
118550007/0
12
Oil Dipstick & Oil Fill Tube Assy
118550008/0
13
Air Cleaner Base
118550009/0
14
Screw
118550010/0
15
Filter Element
118550011/0
16
Air Cleaner Cover
118550012/0
17
Breather Tube
118550013/0
18
Control Bracket
118550014/1
19
Governor Spring
118550015/0
20
Spring
118550029/0
21
Carburetor
118550016/0
22
Choke Lever
118550017/0
23
Governor Link
118550018/0
24
Carburettor Gasket Kit
118550019/0
25
Air Vane Set
118550020/0
26
Brake
118550021/0
27
Casing Clamp
118550022/0
28
Screw
118550023/0
29
Ignition Coil
118550024/0
30
Spark Plug Elbow Cover
118550127/0
31
Spark Plug (Gl4Rc)
118550035/0
32
Cylinder Head Gasket Set
118550026/0
33
Double-Screw Bolt
118550027/0
34
Muffler Gasket
118550028/0
35
Spacer
118550030/0
36
Muffler
118550031/0
37
Nut
118550032/0
38
Muffler Protection
118550033/0
