Spare parts > Husqvarna > CHAIN SAWS > T540 XP T540XP > CARBURETOR & AIR FILTER
Back to

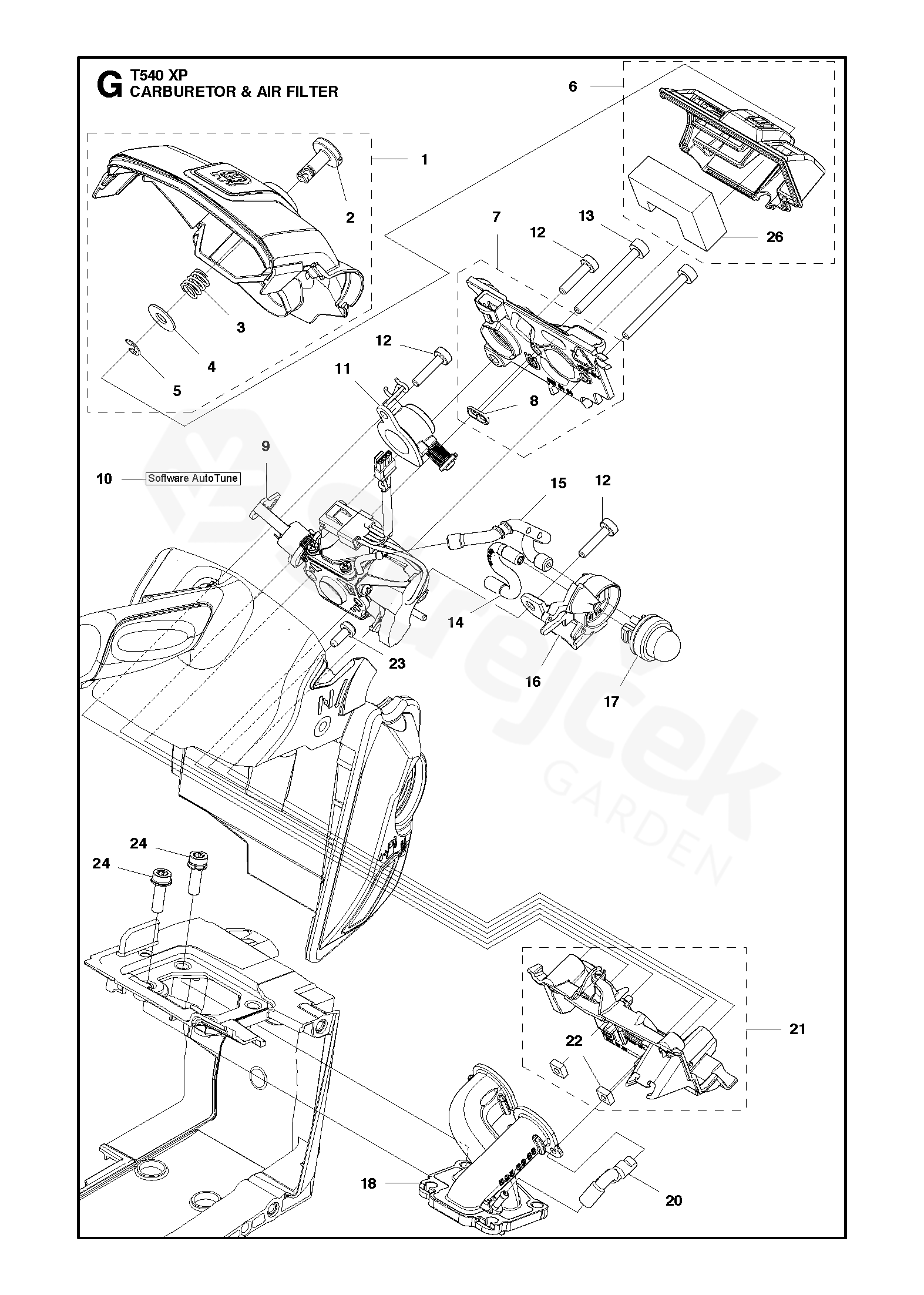

CARBURETOR & AIR FILTER
T540 XP T540XP
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For T540XP
1 FILTER COVER ASSY 576353601
2 KNOB 575415401
3 PRUŽINA 575487601
4 PODLOŽKA 576049801
5 E-CLIP 735310820
6 AIR FILTER ASSY 80my
80my 		574453104
7 DRŽÁK FILTRU KOMPL. 506948402
8 SEALING 525619201
9 CARBURETTOR Walbro AT-2
Walbro AT-2 		579193001
10 TBD N/A
Download from your local support site 		.
11 PLYN KOMPL. 574437601
12 SCREW ITXSCT 525824801
13 SCREW ITXSCM 574353502
14 FUEL HOSE 523056801
15 SACÍ HADIČKA 516003301
16 CHOKE CONTROL ASSY 574366401
17 PURGE 503936601
18 INLET PIPE ASSY 525396802
20 HADICE 577406401
21 CARBURETTOR BRACKET 522890301
22 NUT SQUARE 574620401
23 SCREW CITXPANT 526222001
24 SCREW ITXSCM 577401202
26 FOAMING FILTER 574444502
