Spare parts - Partlist - MSR 38 MSR 38 (2015) - Scarifier

Everything for your machines

MSR 38 MSR 38 (2015)

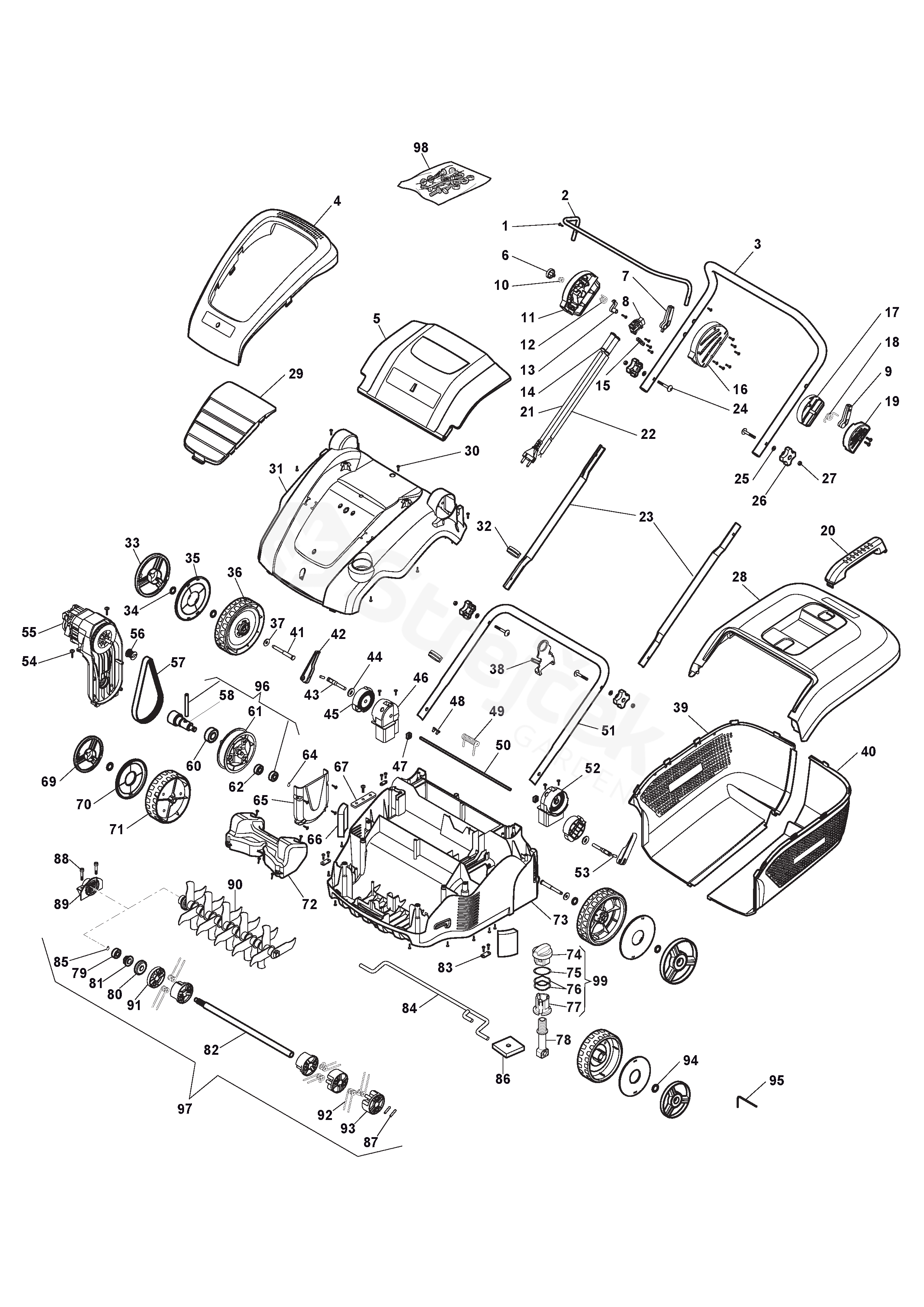

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For MSR 38 (2015)

1	Screw	112726388/0
2	Lever	118803048/0
3	Handle, Upper Part	118802912/0
4	Handle, Grey	118803049/0
5	Stone Guard	118802946/0
6	Button	118802654/0
7	Switch	118802689/0
8	Right Bracket	118802660/0
9	Left Bracket	118802659/0
10	Spring	118802716/0
11	Micro switch, Right	118802658/0
12	Spring	118802714/0
13	Throttle Lever	118802655/0
14	Wire Sheath	118802663/0
15	Double line block	118802656/0
16	Micro switch, Left	118802657/0
17	Right fulcrum	118802662/0
18	Spring	118802715/0
19	Left fulcrum	118802661/0
20	Handle	118802919/0
21	Cable	118802688/0
22	Electric Cable	118802687/0
23	Handle, Middle Part	118802913/0
24	Screw	112689500/0
25	Washer	2312150
26	Knob	118802898/0
27	Nut	112292100/0
28	Grass-Box, Upper	118803050/0
29	Cover, White	118803051/0
30	Screw	6981149
31	Cover, White	118803052/0
32	Hook	118802664/0
33	Hub Cap White	118803053/0
34	Crown Fastener	112604899/0
35	Internal Wheel Protectection	118802649/0
36	Rear Wheel	118802650/0
37	Washer	122671651/0
38	Cable Holder	118802652/0
39	Grass-Box, R Lower	118802947/0
40	Grass-Box, L Lower	118802948/0
41	Rear axle	118802697/0
42	Knob	118802921/0
43	Screw	118802693/0
44	Washer	118802700/0
45	Handle Joint	118802920/0
46	Joint Right	118802677/0
47	Nut	112155000/0
48	Wire Connector	118801615/0
49	Spring	118802645/0
50	Axle	118802643/0
51	Black Lower Handle	118803054/0
52	Joint Left	118802679/0
53	Pin	118802916/0
54	Screw	118810099/0
55	Electric Motor 1500W	118802683/0
56	Motor Pulley	118802712/0
57	Belt	118802681/0
58	Axle	118802719/0
60	Bearing	118802907/0
61	Cincture	118802670/0
62	Washer	118802702/0
64	Seeger Ring	3353020
65	Engine Cover	118802671/0
66	Filter	118802691/0
67	FIXING PLATE	118802718/0
69	Hub Cap White	118803055/0
70	Internal Wheel Protectection	118802648/0
71	Front Wheel	118802674/0
72	Balance Weigth	118802651/0
73	Grey Deck	118802941/0
74	Knob	118802943/0
75	Washer	118802701/0
76	Washer	118802699/0
77	Nut	118802673/0
78	Screw	118802672/0
79	Bearing	118802906/0
80	Washer	118802694/0
81	Nut	118802904/0
82	Axle	118802707/0
83	Washer	118802708/0
84	Front Wheel Axle	118802698/0
85	Benzing Ring	112000957/0
86	Filter	118802692/0
87	Elastic Pin	112645706/0
88	Screw	112689515/0
89	Bearing	118802665/0
90	Blade	118802686/0
91	Cover	118802675/0
92	Spring	118802646/0
93	Fixation Block	118802680/0
94	Crown Fastener	112604899/0
95	Hex wrench	118802709/0
96	Pulley	118802685/0
97	Rotor Scarifier Assy	118810267/0
98	Screws Pocket	118810269/0
99	Height Adjustment Kit	118804952/0
