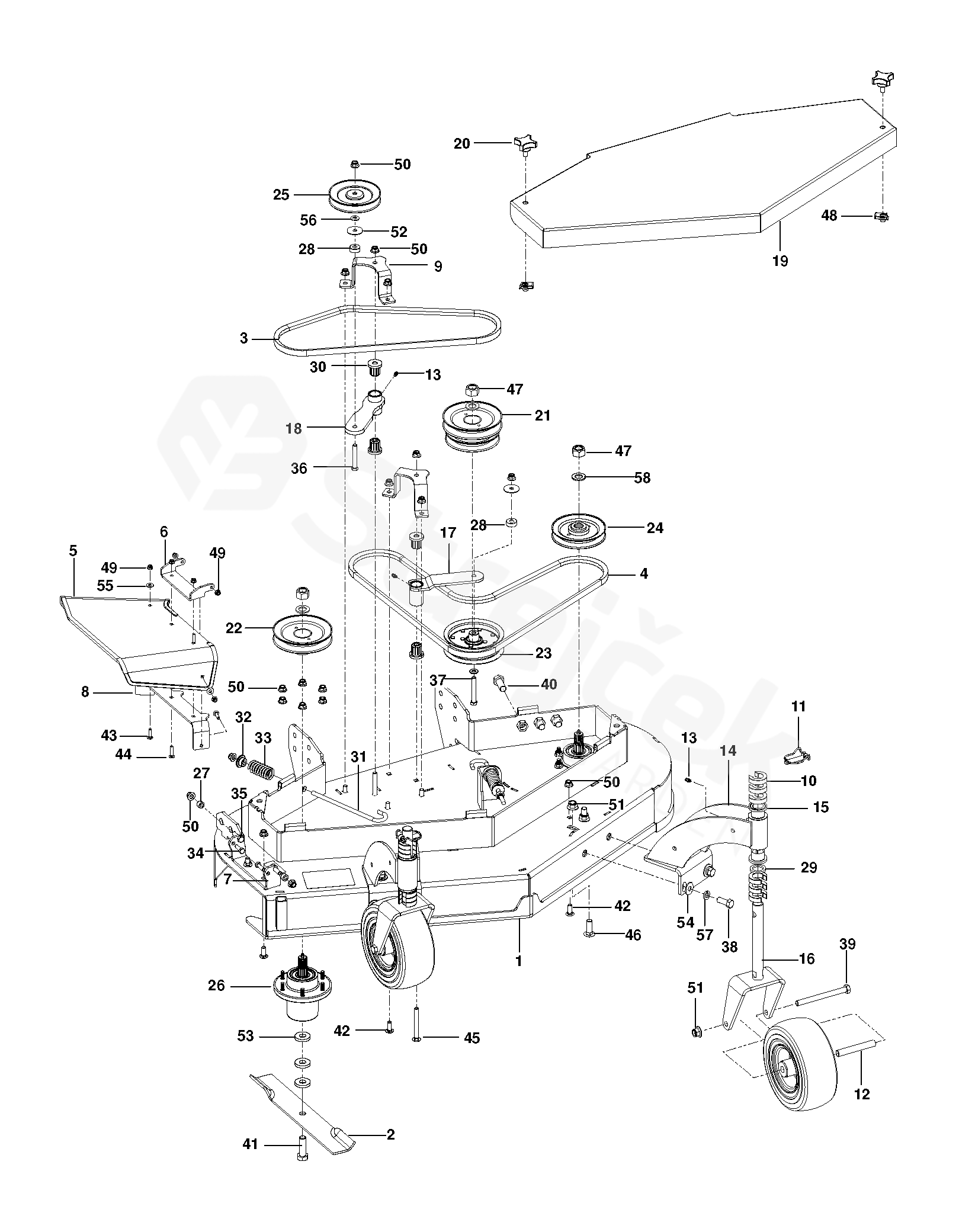

W448 W448, 967334401, 2015-01

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For W448, 967334401, 2015-01

1	DECK ASSY	588063201
2	BLADE	588064501
3	BELT	588064002
4	BELT	588064004
5	CHUTE	588067501
6	BRACKET	588066502
7	BRACKET	588066503
8	BRACKET	588066501
9	BRACKET	588064801
10	SPACER	588068201
11	PIN	588070801
12	TUBE	588072901
13	FITTING	588068602
14	STRUT	588072401
15	BEARING	588065001
16	YOKE	588067401
17	OFFSET PULLEY	588069502
18	OFFSET PULLEY	588069501
19	SHIELD	588227301
20	KNOB	588069901
21	PULLEY	588071302
22	PULLEY	588071303
23	PULLEY	588071304
24	PULLEY	588071306
25	PULLEY	588071305
26	SPINDLE	588063601
27	BUSHING	588227201
28	BUSHING	588066804
29	BUSHING	588066805
30	BEARING	588065002
31	BOLT	588069601
32	KEEPER	588069701
33	SPRING	588072301
34	BOLT	588064705
35	BOLT	588064709
36	BOLT	588064730
37	BOLT	588064713
38	BOLT	588064715
39	BOLT	588064716
40	BOLT	588064729
41	BOLT	588064717
42	BOLT	588064721
43	BOLT	588064723
44	BOLT	588064724
45	BOLT	588064727
46	BOLT	588064728
47	LOCK NUT	588070301
48	NUT	588227401
49	NUT	588070609
50	NUT	588070610
51	NUT	588070611
52	WASHER	588073209
53	WASHER	588073213
54	WASHER	588073212
55	WASHER	588073208
56	WASHER	588073210
57	WASHER	588073220
58	WASHER	588073201
notshown	WHEEL ASSY	588063701
