Spare parts
>
Atco
>
Lawn Tractor
>
GT 40H Twin 4WD GT 40H Twin 4WD (2019)
>
Transmission Group
Back to
GT 40H Twin 4WD
GT 40H Twin 4WD (2019)

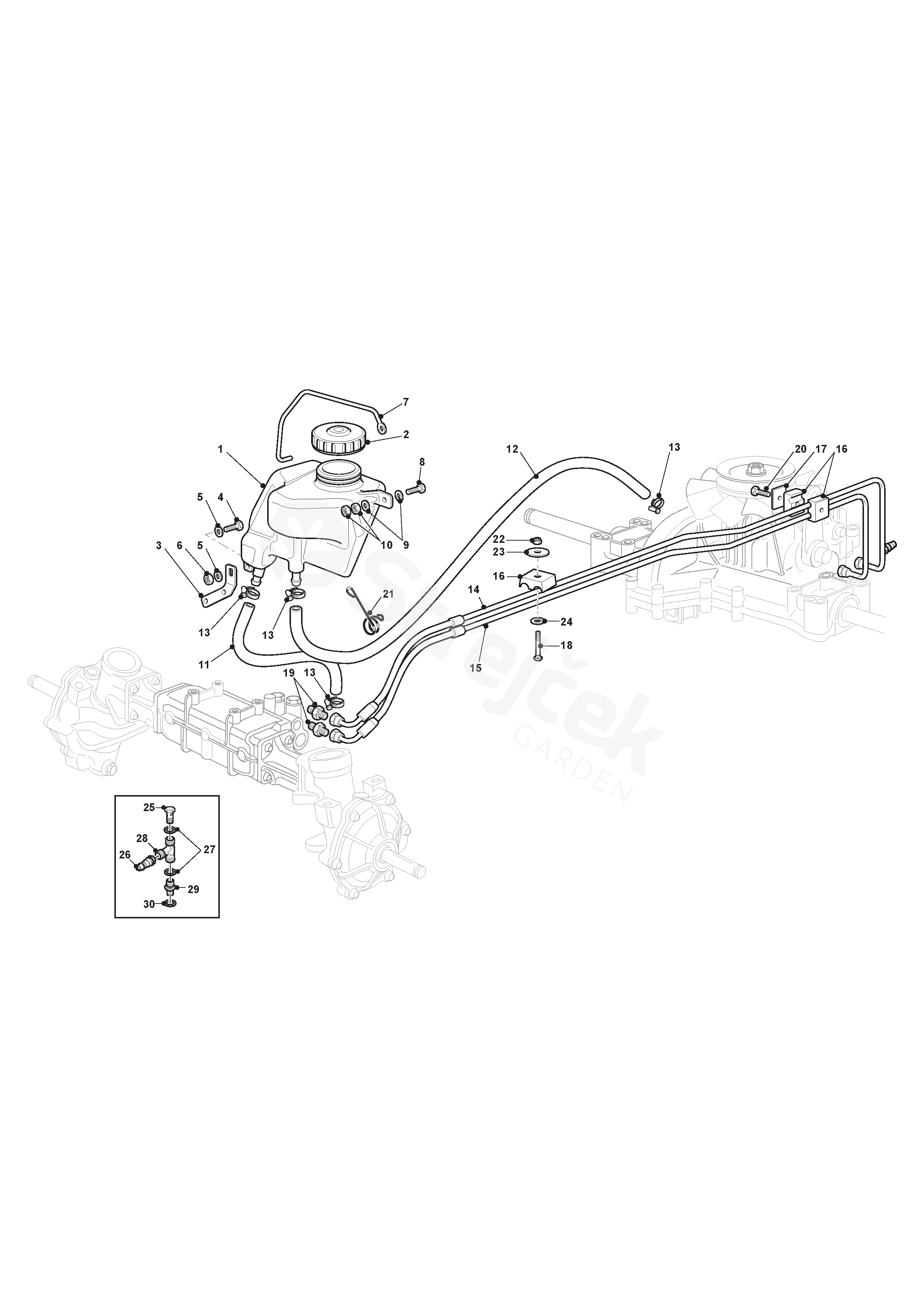

Transmission Group
GT 40H Twin 4WD
GT 40H Twin 4WD (2019)
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
GT 40H Twin 4WD (2019)
1
Tank
325735127/0
2
Fuel Cap
125795002/0
3
Bracket
325755059/0
4
Screw
112789100/0
5
Washer
112521320/0
6
Nut
112154330/0
7
Guard
125600085/0
8
Screw
112789100/0
9
Washer
112521320/0
10
Nut
112154330/0
11
Connecting Tube
325869076/0
12
Connecting Tube
325869077/0
13
Fair Led
118375059/0
14
Oil Tube
382869200/1
15
Oil Tube
382869201/0
16
Support
325721000/0
17
Plate
325547249/0
18
Screw
112735712/0
19
Tube Connection
125651001/0
20
Screw
112674700/0
21
Spring
Not used on Honda Engine
125430239/1
22
Nut
112154510/0
23
Washer
322680009/0
24
Washer
112523050/0
25
Nut
112365000/0
26
Click Fast 1/4
125033107/0
27
Copper Washer
16x22
112524300/0
28
Eye 3/8 - 1/4
112396000/0
29
Reduction M/F
125653000/0
30
Copper Washer
20x26
112524500/0
