GARDEN FOX SXM 4600 GARDEN FOX SXM 4600 (2002)
>
Transmission
Back to
GARDEN FOX SXM 4600
GARDEN FOX SXM 4600 (2002)
Transmission
GARDEN FOX SXM 4600
GARDEN FOX SXM 4600 (2002)

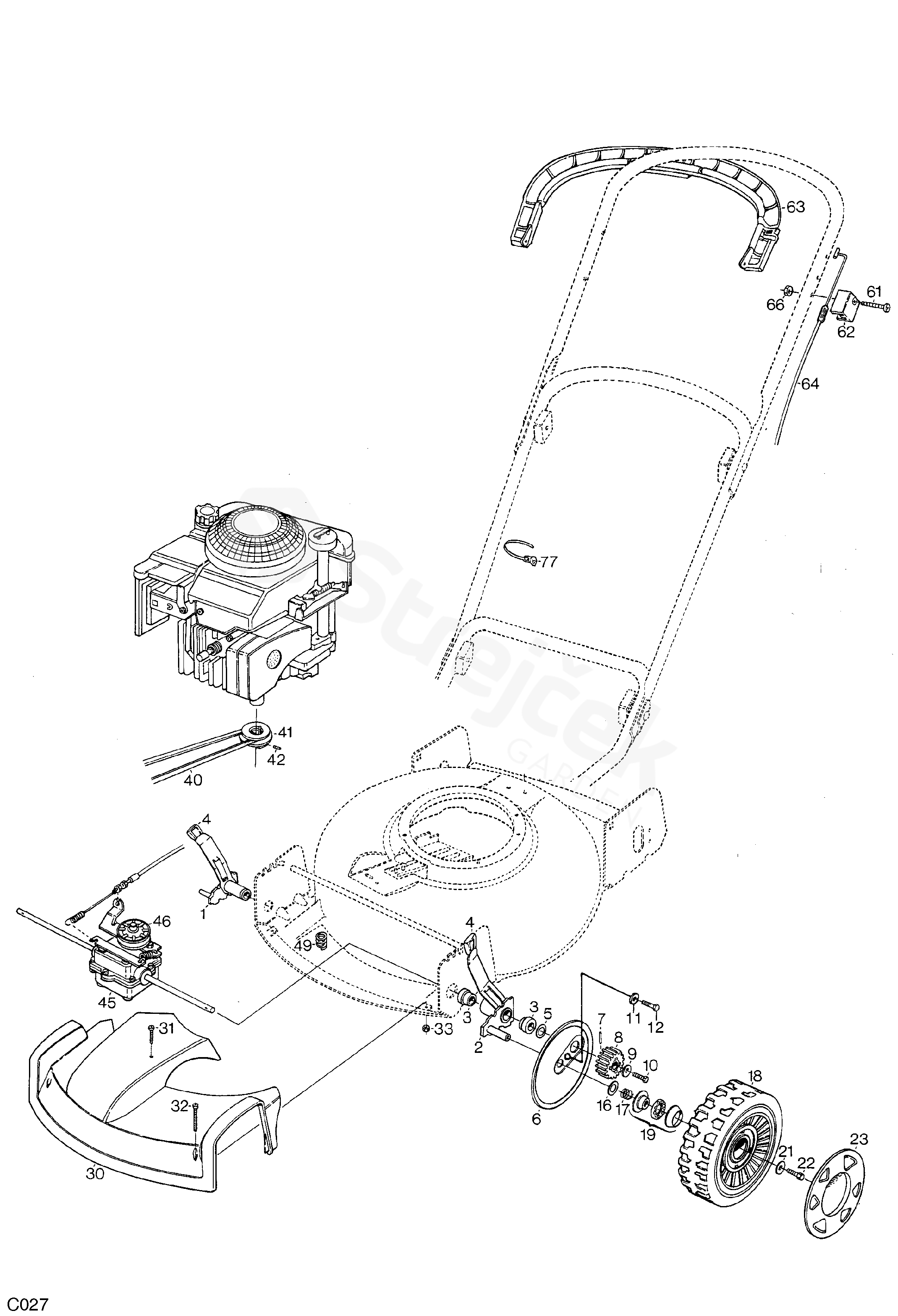

Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
GARDEN FOX SXM 4600 (2002)
1
Wheel Mounting R.H.
Pos 3-4 incl.
1111-2900-01
2
Wheel Mounting L.H.
Pos 3-4 incl.
1111-2901-01
3
Bronze Bearing
9548-0014-00
4
Knob
1111-2549-01
5
Spacer
1111-3065-01
6
Cover Plate
1111-3395-01
7
Pin
1111-2382-01
8
Gear Wheel
1111-2635-02
9
Flat washer
9699-0100-02
10
Screw
9943-0612-16
11
Washer
9699-0060-02
12
Screw
9943-0610-16
16
Washer
9699-0069-02
17
Spring
1111-3060-01
18
Wheel
Pos 19 incl.
1111-2665-01
19
Ball Bearing
1111-3296-01
21
Flat washer
9699-0100-02
22
Screw
9943-0612-16
23
Hub Cap (Red)
1111-3085-09
30
Front Cover (Red)
1111-2633-04
31
Screw
9943-0530-16
32
Screw
9943-0540-16
33
Nut
9739-0531-22
40
Drive Belt
1151-0128-12
41
Engine Belt Pulley
1111-2915-01
42
Screw
9910-0612-16
45
Transmission assy
1111-3055-01
46
Locating Pin
9594-0055-00
49
Spring
1111-3060-01
61
Screw
9948-0640-16
62
Cable Holder
1111-2969-01
63
Clutch Lever
1111-2954-01
64
Clutch Cable
1111-2967-03
66
Lock Nut
9747-0631-02
77
Cable Holder
9579-0008-00
