Spare parts > Husqvarna > LAWN MOWERS: CONSUMER WALK-BEHINDS > MASTER 50 MASTER 50S, 953877004, 2003-01 > PRODUCT COMPLETE
Back to
PRODUCT COMPLETE

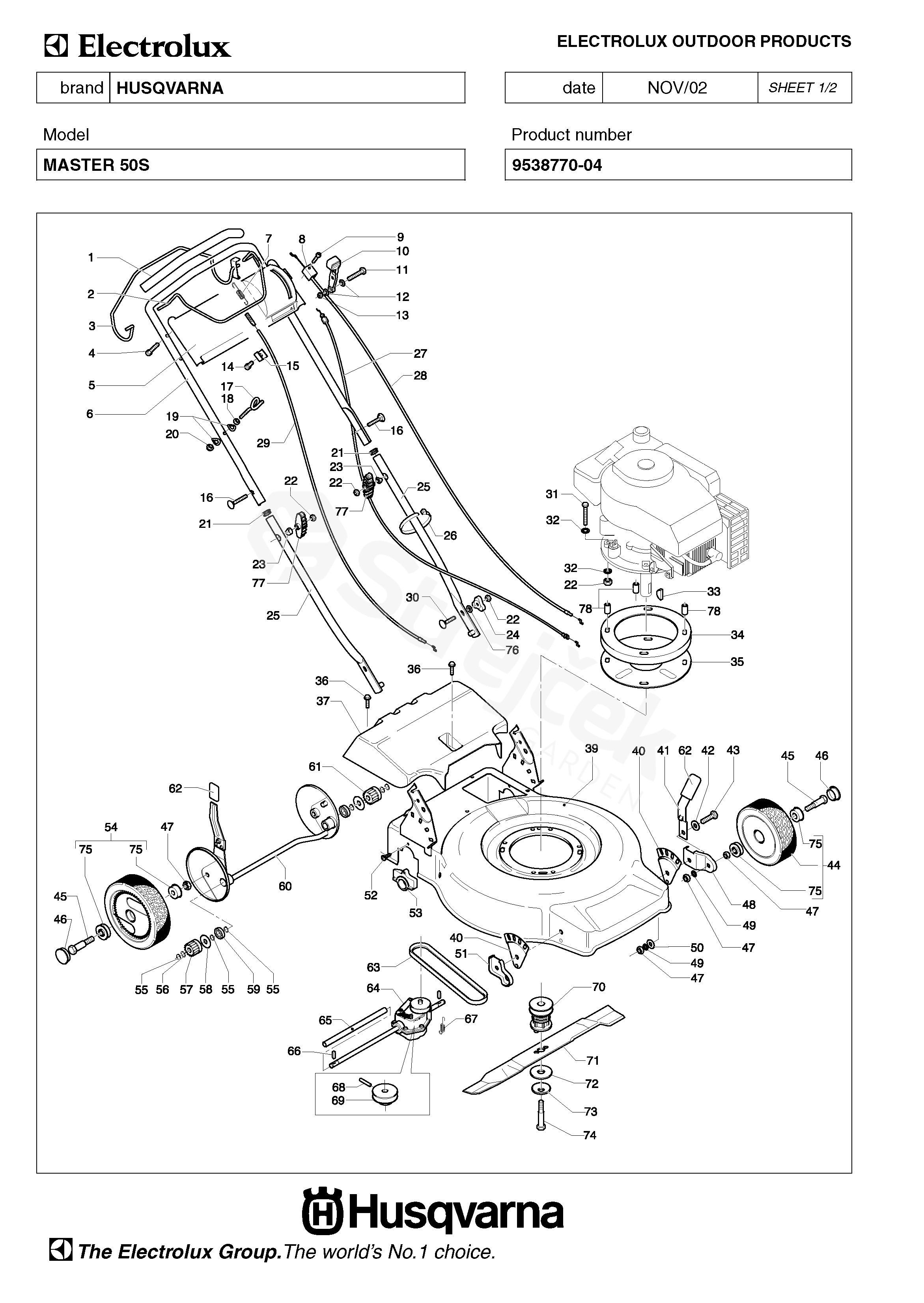

MASTER 50 MASTER 50S, 953877004, 2003-01
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For MASTER 50S, 953877004, 2003-01
1 PROTECTOR 531210725
2 LOOP 531206045
3 LOOP 531206043
4 SCREW 531208844
5 PLATE 531210584
6 HANDLE 531210581
7 SPRING 531210573
8 BRACKET 531208043
9 SCREW 531208217
10 BRACKET 531205139
11 SCREW 531207836
12 WASHER 531206666
13 NUT 531208492
14 SCREW 531207937
15 SUPPORT 531207923
16 SCREW 531207089
17 PIN RETAINING SCREW 531205169
18 NUT 531207165
19 PODLOŽKA 531204961
20 NUT 531208491
21 PLUG 531208950
22 NUT 531207982
23 WASHER 531207090
24 WING NUT 531204923
25 HANDLE 531210582
26 CABLE HOLDER 531205581
27 WIRE
THROTTLE 		531207754
28 WIRE
BRAKE-CABLE 		531205191
29 WIRE
DRIVE-CABLE 		531206298
30 SCREW 531204921
31 SCREW 531207107
32 PODLOŽKA 531207981
33 KEY 531204907
34 PLATE 531207369
35 PLATE 531207111
36 SCREW 531207120
37 COVER 531206227
39 HOUSING 531206548
40 BRACKET 531210768
41 LEVER 531210767
42 WASHER 531206020
43 SCREW 531204912
44 WHEEL 531210578
45 SCREW 531205042
46 HUB CAP 531210580
47 NUT 531207978
48 SUPPORT 531210764
49 PODLOŽKA 531208974
50 WASHER 531207989
51 SUPPORT 531210766
52 SCREW 531208216
53 SUPPORT 531205944
54 WHEEL 531210579
55 PODLOŽKA 531208772
56 WASHER 531208859
57 PINION 531205045
58 WASHER 531207847
59 BEARING 531208778
60 SHAFT 531211206
61 PINION 531205046
62 KNOB 531207986
63 BELT 531206303
64 GEARBOX 531204761
65 PIPE 531207697
66 KEY 531205108
67 SPRING 531206235
68 PIN RETAINING SCREW 531207703
69 PULLEY 531208899
70 SUPPORT 531207848
71 BLADE 531206546
72 WASHER 531207243
73 WASHER 531207237
74 SCREW 531206649
75 BEARING 531205214
76 WASHER 531204904
77 KNOB 531205840
78 BUSH 531208732
