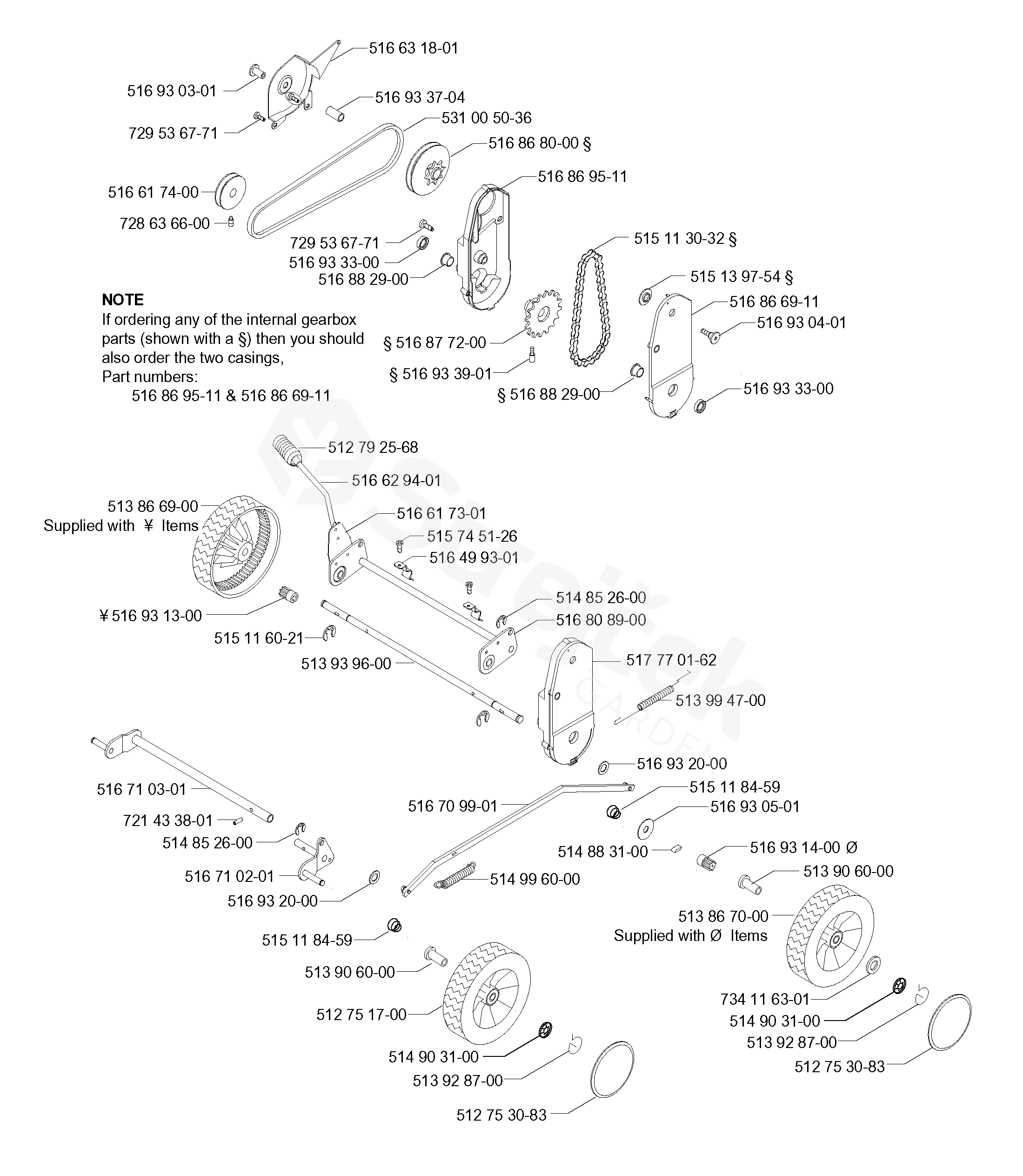

ROYAL 46 ROYAL 46 SE, 2001-03

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For ROYAL 46 SE, 2001-03

512751700	WHEEL	512751700
512753083	HUB	512753083
512792568	KNOB	512792568
513866900	WHEEL	513866900
513867000	WHEEL LH SUPPLIED WITH ITEMS	513867000
513906000	BUSHING	513906000
513928700	SPRING	513928700
513939600	SHAFT	513939600
513994700	SPRING	513994700
514852600	RETAINING RING	514852600
514883100	PAWL	514883100
514903100	STARLOCK	514903100
514996000	SPRING	514996000
515113032	CHAIN	515113032
515116021	SNAP RING	515116021
515118459	SPRING	515118459
515139754	WASHER	515139754
515745126	SCREW	515745126
516499301	PLATE	516499301
516617301	BRACKET	516617301
516617400	WHEEL	516617400
516629401	LEVER	516629401
516631801	COVER	516631801
516709901	ROD	516709901
516710201	BRACKET	516710201
516710301	SHAFT	516710301
516808900	SHAFT	516808900
516866911	COVER	516866911
516868000	PULLEY	516868000
516869511	COVER	516869511
516877200	CHAIN WHEEL	516877200
516882900	BEARING	516882900
516930301	SLEEVE	516930301
516930401	SCREW	516930401
516930501	WASHER	516930501
516931300	PINION	516931300
516931400	PINION	516931400
516932000	WASHER	516932000
516933300	BUSHING	516933300
516933704	BUSHING	516933704
516933901	SCREW	516933901
517770162	HOUSING	517770162
531005036	BELT	531005036
721433801	SPRING PIN	721433801
728636600	SCREW IHSETM	728636600
729536771	SCREW CRPANT	729536771
734116301	PODLOŽKA	734116301
