Spare parts > Husqvarna > LAWN MOWERS: CONSUMER WALK-BEHINDS > ROYAL 48 ROYAL 48 S KAWASAKI 1995-03 > FRAME
Back to

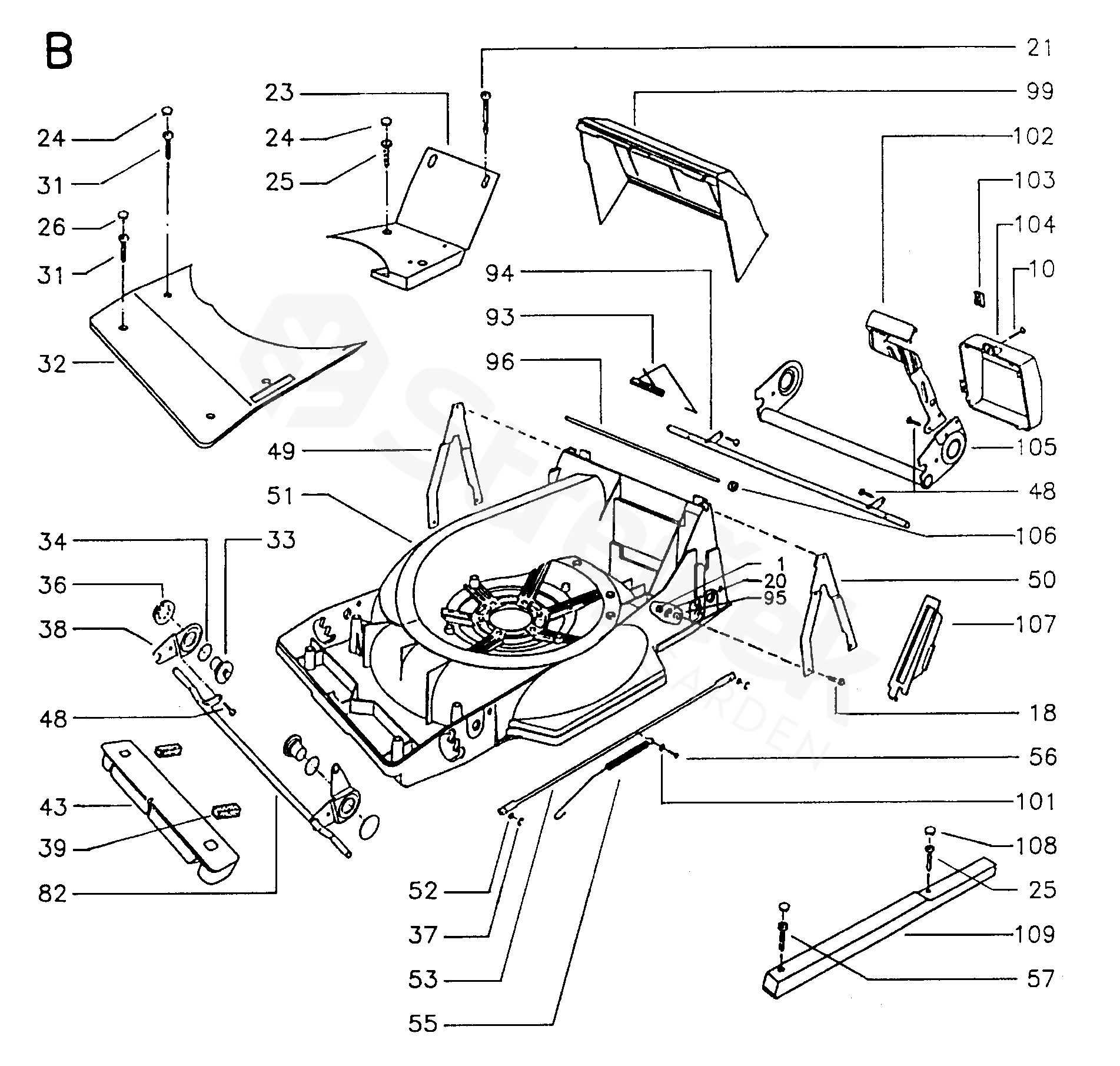

FRAME
ROYAL 48 ROYAL 48 S KAWASAKI 1995-03
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For ROYAL 48 S KAWASAKI 1995-03
1 LOCK NUT 732211801
10 SCREW CRPANT 729541201
18 SCREW 725245051
20 PODLOŽKA 734116441
21 SCREW 515745029
23 COVER 516872807
24 PLUG 516874507
25 SCREW 515745149
26 PLUG 516874407
31 SCREW 515745051
32 COVER 516872907
33 FITTINGS 516425801
34 O-RING 516920100
36 LOCK RING 516913200
37 RING 516905100
38 SUPPORT 516505901
39 DAMPER 516841100
43 WEIGHT 516840600
48 SCREW 516928501
49 PLATE 516509411
50 PLATE 516509511
51 COVER 516872607
52 O-RING 516919100
53 ROD 516693101
55 SPRING 516438801
56 SCREW 516909101
57 SCREW 515745053
82 SHAFT 516705701
93 SPRING 516448901
94 SHAFT 516704501
95 SLEEVE 516509601
96 SHAFT 516499601
99 COVER 516872707
101 WASHER 516925301
102 CONTROL 516854507
103 LOCK PLATE 516916101
104 PULLEY COVER 516838411
105 SHAFT 516704001
106 NUT 516919201
107 QUADANT 516852611
108 PLUG 516858811
109 COVER 516859411
