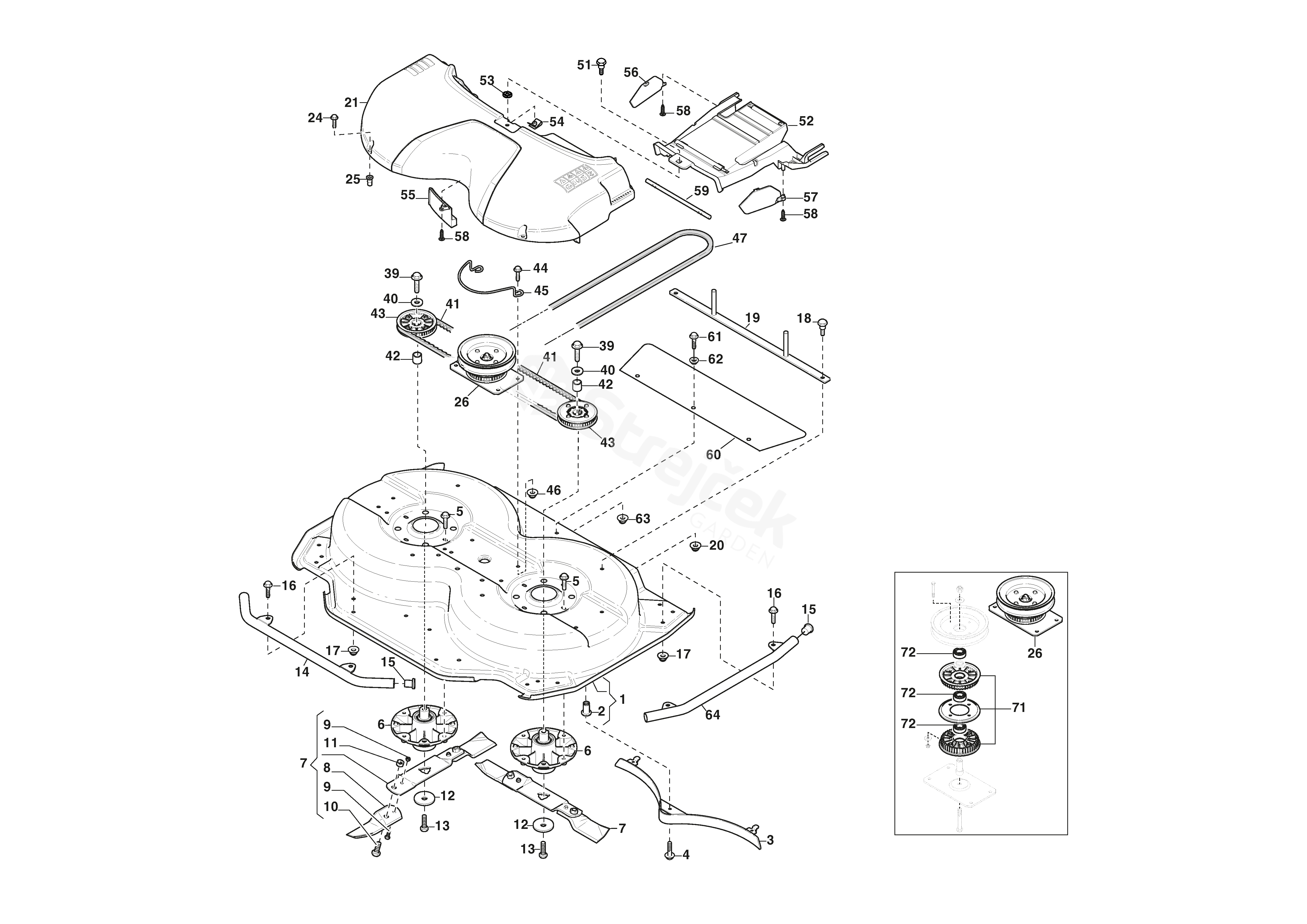

Spare parts > Castelgarden > Front mowers > Deck 95 COMBI EL for XK and XK4 Deck 95 COMBI EL for XK and XK4 (2018) > Transmission and Blades
Back to
Transmission and Blades
Deck 95 COMBI EL for XK and XK4 Deck 95 COMBI EL for XK and XK4 (2018)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For Deck 95 COMBI EL for XK and XK4 (2018)
1 Casing-Red 95C
From S/N 20AA1FMC000001 		387561507/1
2 Nut 1134-5595-01
3 Mulch Plug 95C 1134-6229-01
4 Screw 9959-0820-16
5 Screw 9945-0825-16
6 Shaft Flange Assy 387203000/0
7 Blade Bar Assy (95C) 1134-9117-01
8 Blade Kit Assy 1134-9119-01
9 Shear Bolt Kit 1134-9054-01
10 Bolt 1134-6311-01
11 Nut 1134-6312-01
12 Washer 1134-6211-01
13 Screw 112692395/2
14 Front Guard Tube-Black 1134-6208-02
15 End Plug, Black 9403-0025-70
16 Screw 112800815/0
17 Nut 112154220/0
18 Shoulder screw 1134-0240-01
19 Bracket 387033103/0
20 Nut 112154220/0
21 Transmission Cover-Grey 337060037/0
24 Screw 9945-0825-16
25 Nut 1134-5595-01
26 Pulley 387605018/0
39 Screw 112692395/2
40 Washer 1134-5406-01
41 Toothed Belt
Contains 135061513/0 		1134-9198-02
42 Spacer 1134-5400-04
43 Toothed Pulley Assy 1134-6287-01
44 Screw 9959-0820-16
45 Belt Guide 1134-6431-01
46 Nut 112154220/0
47 V-Belt 1134-9147-01
51 Screw 1134-0240-00
52 Belt cover 337600002/0
53 Starlock 9675-0016-02
54 Nut 1134-4620-02
55 Belt cover 337600040/0
56 Belt cover 337600004/0
57 Belt cover 337600005/0
58 Screw 9838-8822-19
59 Pin 1137-1090-01
60 Rubber Guard 1134-6281-02
61 Screw 112800815/0
62 Flange Washer 1134-4185-01
63 Nut 112154220/0
64 Side Guard Tube-Black 95C 1134-6222-02
71 Toothed Belt Pulley 1134-9128-02
72 Bearing 119216056/0
