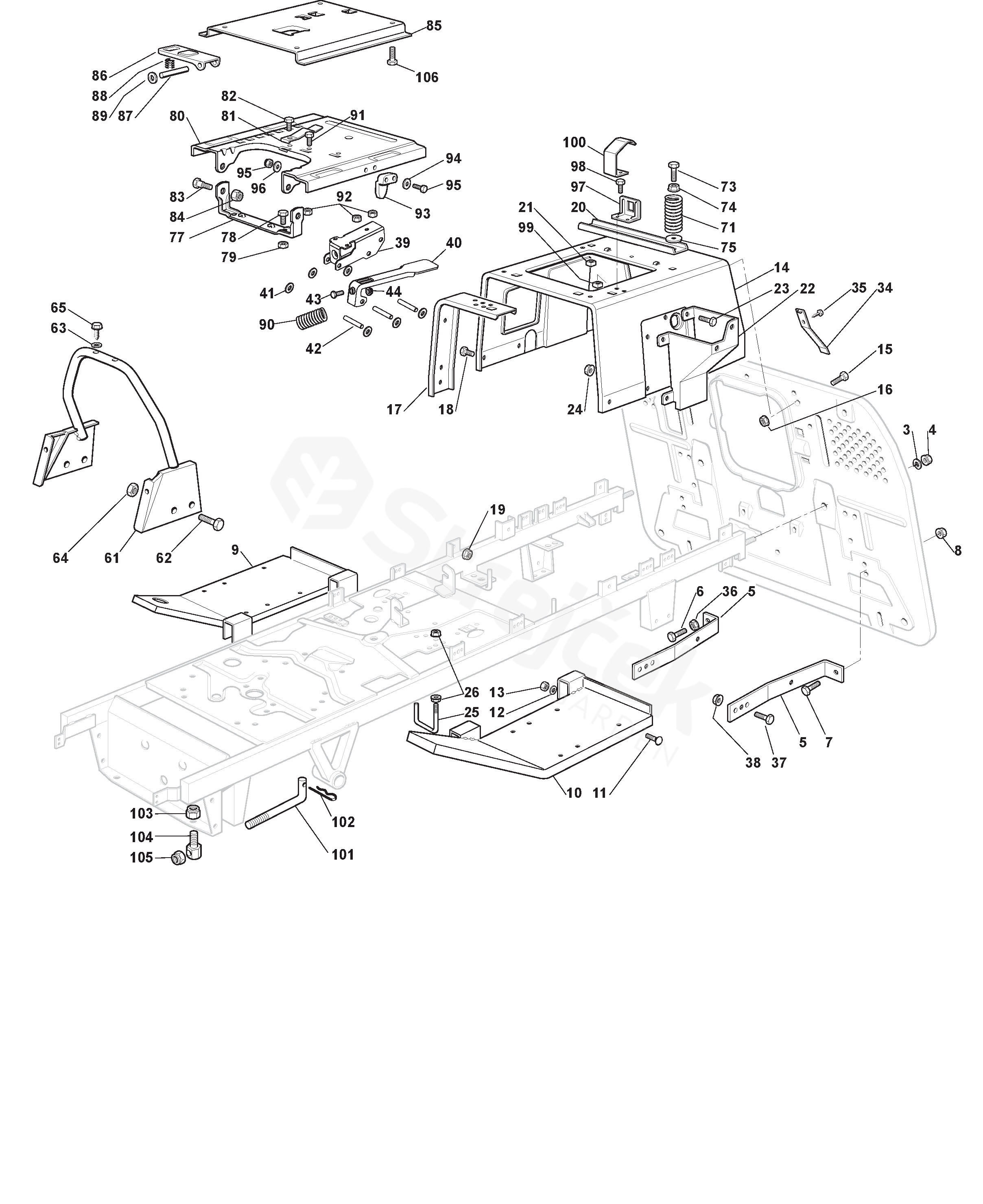

PTX 200 HD PTX 200 HD (2016)

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For PTX 200 HD (2016)

3	Washer	112523060/0
4	Nut	9739-1031-22
5	Stiffening	325774273/1
6	Screw	112691100/0
9	Right Footboard Support	382510041/2
10	Left Footboard Support	382510043/2
11	Screw	112815245/0
12	Washer	112523040/0
13	Nut	112154510/0
14	Seat Support	325785133/5
15	Screw	112791011/0
16	Nut	112292102/0
17	Pulley Stiffening	325650065/1
18	Screw	112791200/1
20	Stiffening	325650067/0
21	Nut	112360420/0
22	Support	325785137/1
25	Belt Guide Peg	125580019/0
34	Spring	125430238/1
35	Screw	112731580/0
36	Nut	112293200/0
37	Screw	112793102/0
38	Nut	112293201/0
39	Fulcrum Clamp	325774575/0
40	Lever	382318315/0
41	Crown Fastener	112604896/0
42	Pin	122517866/0
43	Screw	112735661/0
61	Chassis	382650045/0
62	Screw	112792611/0
63	Washer	112521330/0
65	Screw	112731350/0
71	Spring	125430205/1
73	Screw	125943001/1
75	Washer	112523070/0
77	Seat Clamp Support	382774305/0
80	Fixed Seat Support	325785149/3
81	Spring	125430203/1
83	Pin	122524970/3
84	Nut	112155010/0
85	Seat Support	325785147/2
86	Stop Lever	325318109/1
87	Pin	125510000/0
88	Spring	125430202/1
89	Elastic Washer	112604897/0
90	Spring	125430285/0
91	Screw	112789000/0
92	Nut	112154330/0
93	Seat Switch Cam	325060049/0
94	Screw	112815050/0
95	Washer	112521320/0
97	Bracket	325755025/2
98	Screw	112735110/0
99	Plate	112437502/0
100	Spring	325430255/0
101	Tie Rod	125510119/0
102	Cotter Pin	124487997/0
103	Nut	112155000/0
104	Pin	125510040/2
106	Screw	9959-0820-16
