Spare parts > Castelgarden > Lawn Tractor > TCP 20/122 HYDRO TCP 20/122 HYDRO (2004) > Electrical Parts
Back to

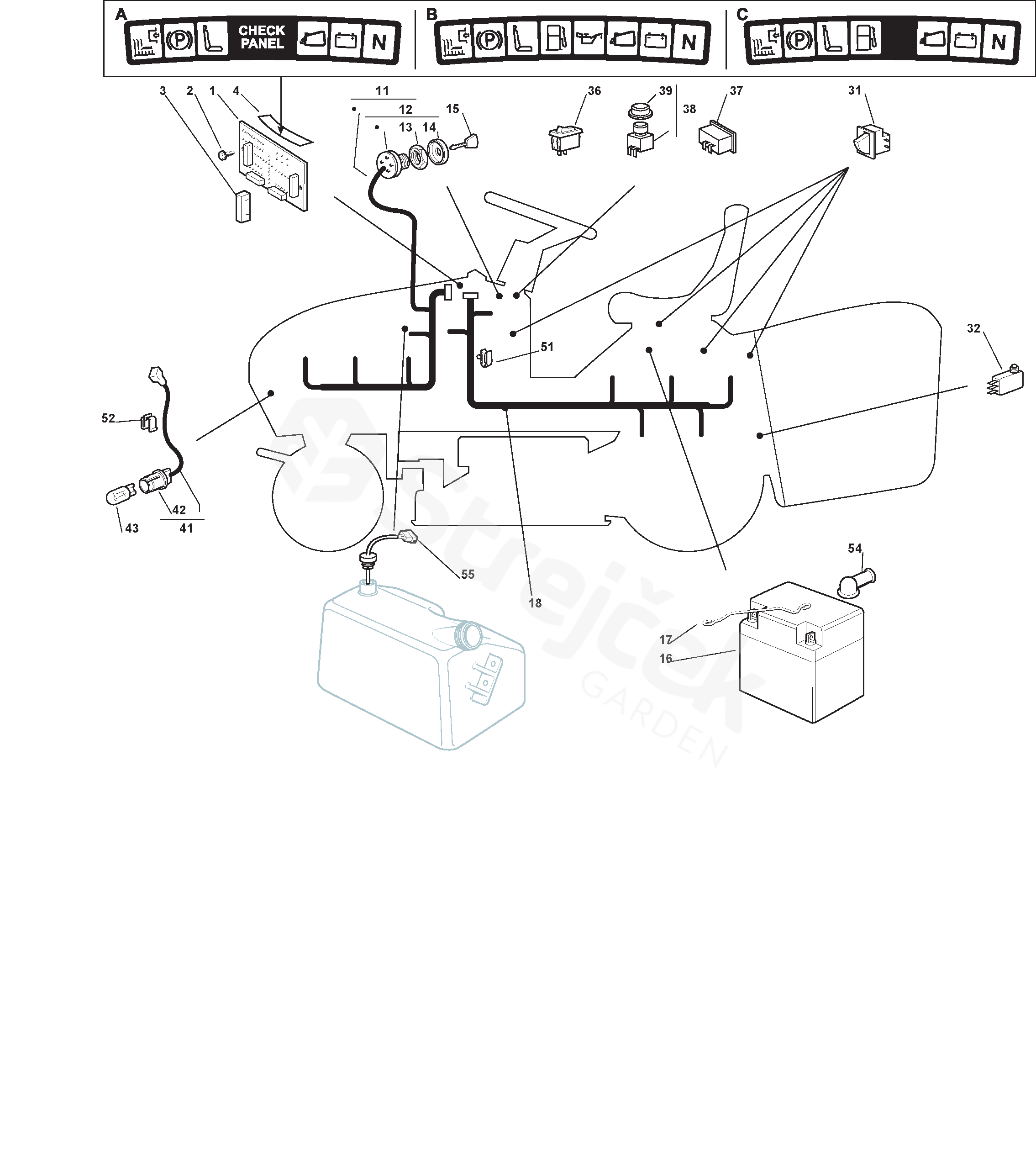

Electrical Parts
TCP 20/122 HYDRO TCP 20/122 HYDRO (2004)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For TCP 20/122 HYDRO (2004)
1 Electronic Card 125722413/1
2 Screw 112735105/0
3 Fuse 6.3 A 133340033/0
4 Check Control (B) 125420005/0
11 Front Cables Ass.Y 182040120/0
12 Starting Switch 118450065/1
13 Screwed Ring 118400861/0
14 Screwed Ring Protection 118565351/0
15 Starting Key 118210016/1
16 Battery 118120002/1
17 Spring 125430230/0
18 Rear Cables Ass.Y 182040121/0
31 Microswitch 119410615/0
32 Microswitch 119410605/1
36 Headlight Switch 118450060/1
37 Hour Counter Hobbs Type 82001 118230000/0
38 Switch 118450067/0
39 Cap 118203852/0
41 Headlight Cable 182040070/0
42 Lamp Holder 133500030/0
43 Lamp For Lights 118459100/0
51 Fairlead 133320506/0
52 Fairlead 133320504/0
54 Protection 118564864/1
55 Fuel Level Indicator 125290000/0
