Spare parts
Everything for your machines
Spare parts
>
Castelgarden
>
Lawn Tractor
>
XD 170 HD XD 170 HD (2020)
>
Electrical Parts
Back to
XD 170 HD
XD 170 HD (2020)
Electrical Parts
XD 170 HD
XD 170 HD (2020)

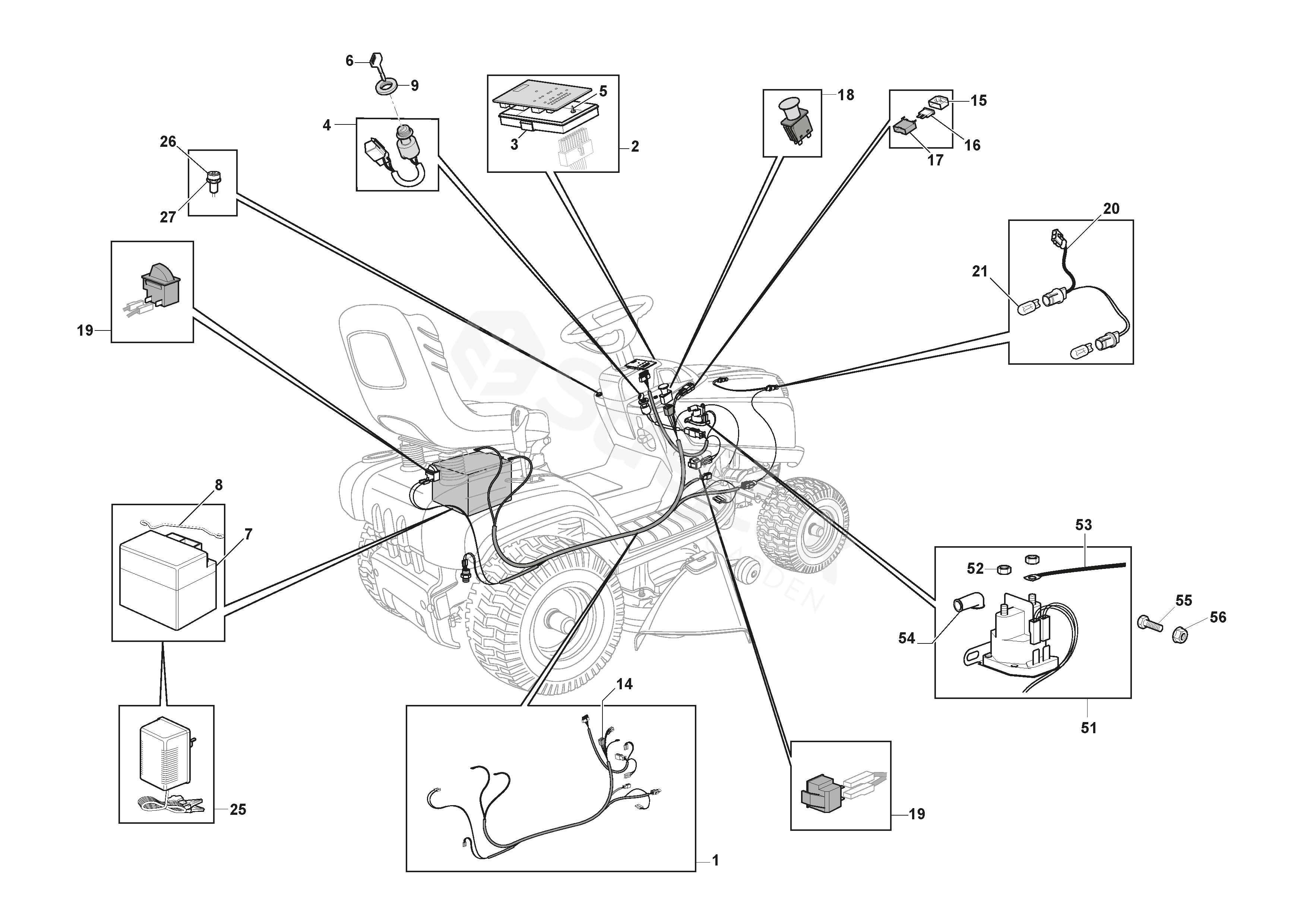

Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
XD 170 HD (2020)
1
Cables Ass.Y
182040196/1
2
Electronic Card
382722443/1
3
Card Protection
325600090/1
4
Starting Switch
118450075/1
5
Screw
112727810/0
6
Starting Key
118210023/0
7
Battery
118120007/0
8
Spring
125430265/1
9
Screwed Ring
118400863/0
14
Relay
133567000/0
15
Cover
133215000/0
16
Fuse 10 A
133340040/0
17
Fuse carrier
133500007/0
18
Clutch Switch
118450073/0
19
Microswitch
119410622/1
20
Cable
182040186/0
21
Lamp For Lights
118459100/0
25
Battery Charger 12V 1A - CE Plugg
182180090/0
26
Push Button Reverse Gear
325605003/0
27
Screwed Ring
325256250/0
51
Solenoid
118736112/0
52
Nut
112361005/0
53
Cable
125065002/0
54
Protection
118564864/1
55
Screw
112790781/0
56
Nut
112154510/0
