Spare parts
>
ST S p A
>
Lawn Mower
>
JARDIPRO 550SE 4-SP JARDIPRO 550SE 4-SP (1996)
>
Chassis
Back to
JARDIPRO 550SE 4-SP
JARDIPRO 550SE 4-SP (1996)
Chassis
JARDIPRO 550SE 4-SP
JARDIPRO 550SE 4-SP (1996)

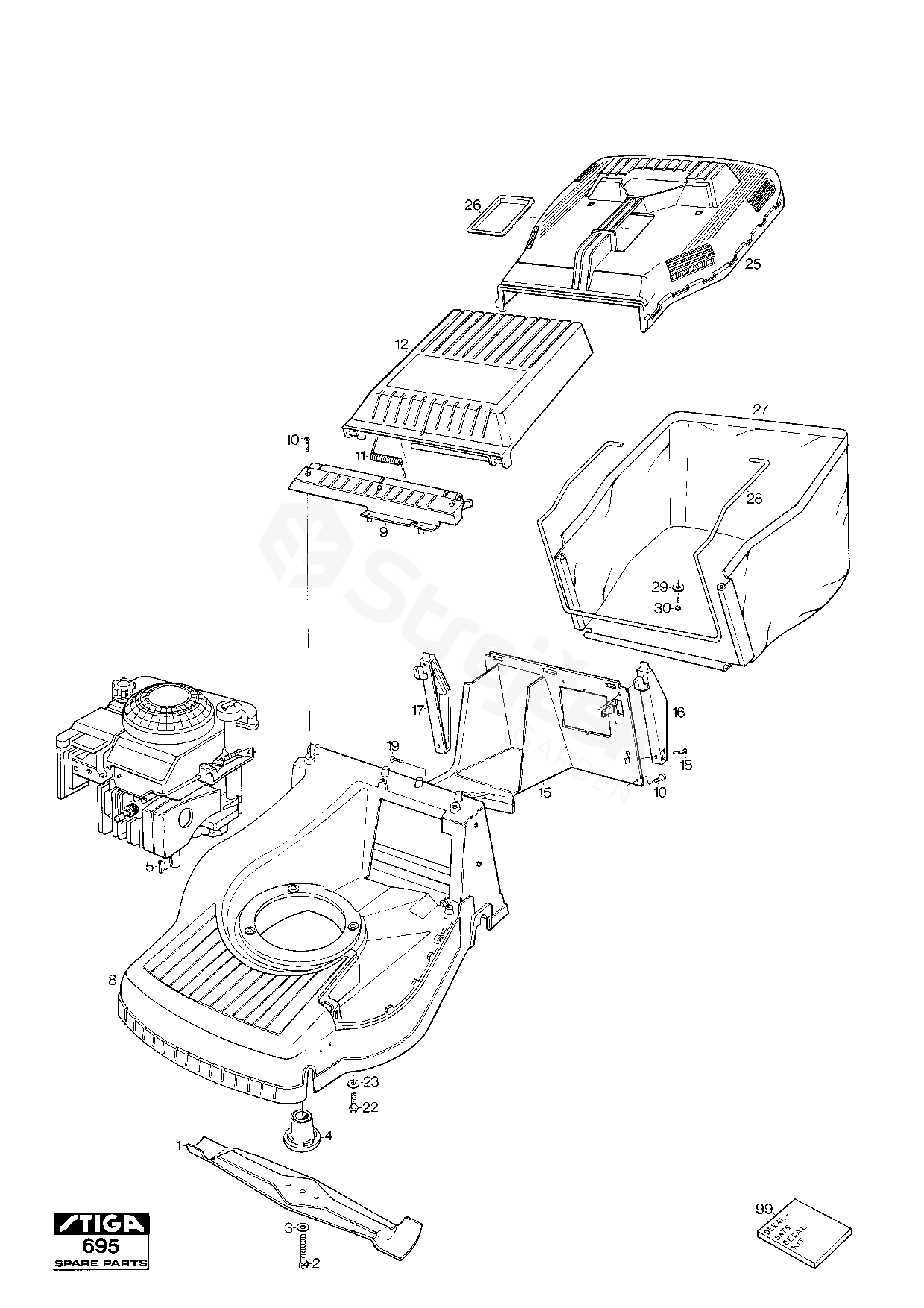

Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
JARDIPRO 550SE 4-SP (1996)
1
Blade
1111-3038-01
2
Screw
9987-5251-12
3
Washer
9696-0011-01
4
Blade Holder
1111-1408-01
5
Key
9600-0014-00
8
Chassis-Grey
12-9622-61,9221-91
1111-3020-12
9
Flap Attachment
1111-2793-01
10
Screw
9947-0616-16
11
Spring
1111-2792-01
12
Flap-yellow
1111-2791-01
15
Rear Attachment
1111-2795-01
16
Attachment-L.H.
1111-2796-01
17
Attachment-R.H.
1111-2797-01
18
Screw
9836-9520-12
19
Screw
9838-9522-12
22
Screw
9955-3732-12
25
Collector-Upper Part (Yellow)
1111-2840-01
26
Cover
1111-2764-01
27
Collecting Bag
1111-3032-01
28
Wire Clamp
1111-2843-01
29
Flat washer
9699-0100-02
99
Label Kit
1111-2893-12
