Spare parts
Everything for your machines
Spare parts
>
ST S p A
>
Lawn Mower
>
MONARK MULTICLIP 46 MONARK MULTICLIP 46 (1997)
>
Walkbehind
Back to
MONARK MULTICLIP 46
MONARK MULTICLIP 46 (1997)
Walkbehind
MONARK MULTICLIP 46
MONARK MULTICLIP 46 (1997)

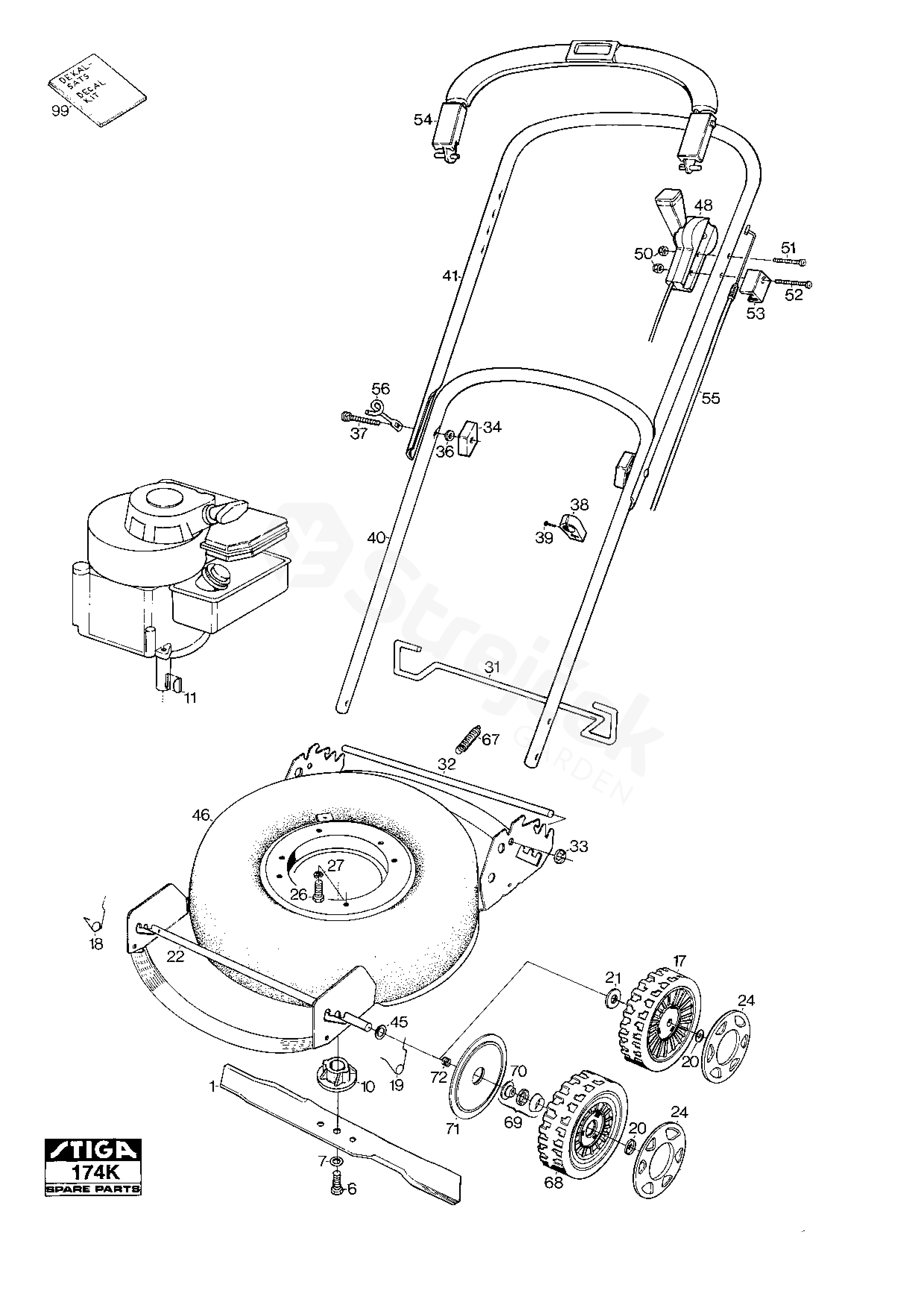

Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
MONARK MULTICLIP 46 (1997)
1
Blade
1111-3099-01
6
Screw
9987-5245-12
7
Washer
9696-0011-01
10
Blade Holder
1111-3153-01
11
Key
9600-0014-00
17
Wheel
1111-2656-01
18
Spring
1111-1589-02
19
Spring
1111-1589-01
20
Washer
1111-9042-01
21
Washer
9699-0069-02
22
Wheel Axle
1111-1590-01
24
Hub Cap (175) White
11-3215-81,21-3211-91
1111-3084-03
26
Screw
9955-3732-12
27
Washer
9699-0029-02
31
Handlebar Clamp
1111-3017-01
32
Pivot rod
1111-1532-01
33
Washer
9670-0203-00
34
Handle Bolt Kit (2 Pcs)
1111-9030-02
36
Washer
9699-0025-02
37
Screw
9899-3551-12
38
Cable Holder
1111-2018-01
39
Screw
9836-9216-12
40
Handle-Lower Part
1111-3018-01
41
Handlebar Upper Part
1111-2957-01
45
Washer
1111-1593-01
46
Chassis-silver
21-3211-91
1111-2982-03
50
Lock Nut
9747-0631-02
52
Screw
L = 40 mm
9948-0640-16
53
Cable Holder
1111-2969-01
54
Control Handle (Eng.Brake
1111-2953-01
55
Cable, Thread Engine Brake
1111-2968-05
56
Eyelink
1111-3062-01
67
Spring
1111-2375-01
68
Wheel
11-3211-41
1111-2784-01
69
Ball Bearing
11-3211-41
1111-9047-01
70
Outer Ring
11-3211-41
1111-1184-01
71
Wheel Cover
11-3211-41
1111-2785-01
72
Spring-Wheel Axle
11-3211-41
1111-1138-01
99
Label Kit
1111-2893-02
