ST S p A
>
Lawn Mower
>
T 484 TRH T 484 TRH (2018)
>

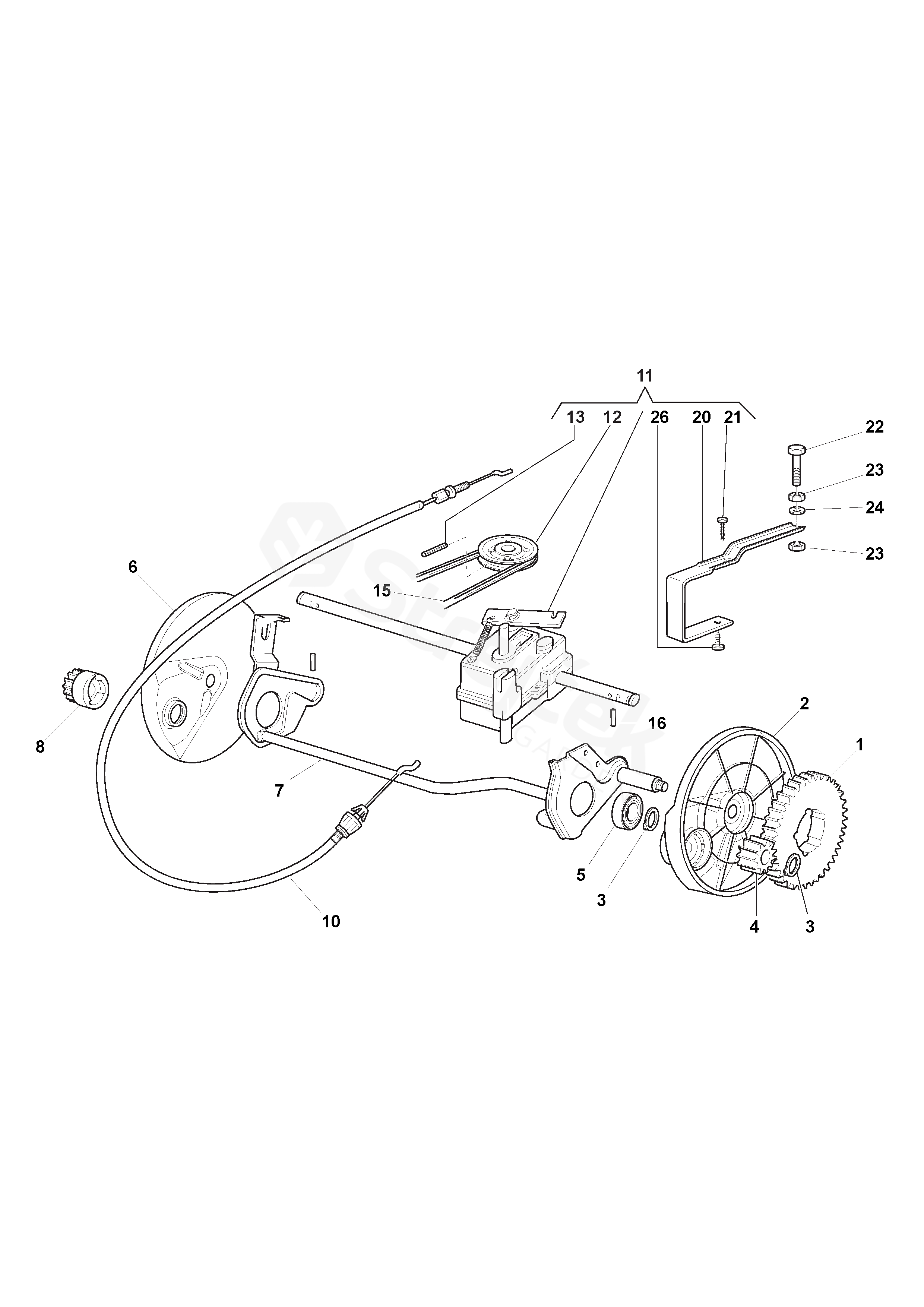

Transmission
Back to
T 484 TRH
T 484 TRH (2018)
Transmission
T 484 TRH
T 484 TRH (2018)
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
T 484 TRH (2018)
1
Ring Gear
122120105/2
2
Internal Wheel Protectection
322600091/1
3
Seeger
112608600/0
4
Left pinion
122570120/1
5
Bearing
119216035/0
6
Right Plastic Wheel Protection
122600090/0
7
Rear Wheel Axle
381000149/0
8
Right Pinion
122570110/1
10
Cable Rear Drive
381000674/0
11
Bi. Ci. Di. Gear Box Testarossa
181003099/0
12
Pulley
122601909/0
13
Elastic Pin
112645705/0
15
Belt
135064100/0
16
Pin
122753000/0
20
Gear Box Support
322785111/1
21
Screw
112728507/0
22
Screw
112793850/0
23
Nut
112293200/0
24
Washer
112521350/0
26
Screw
112728518/0
