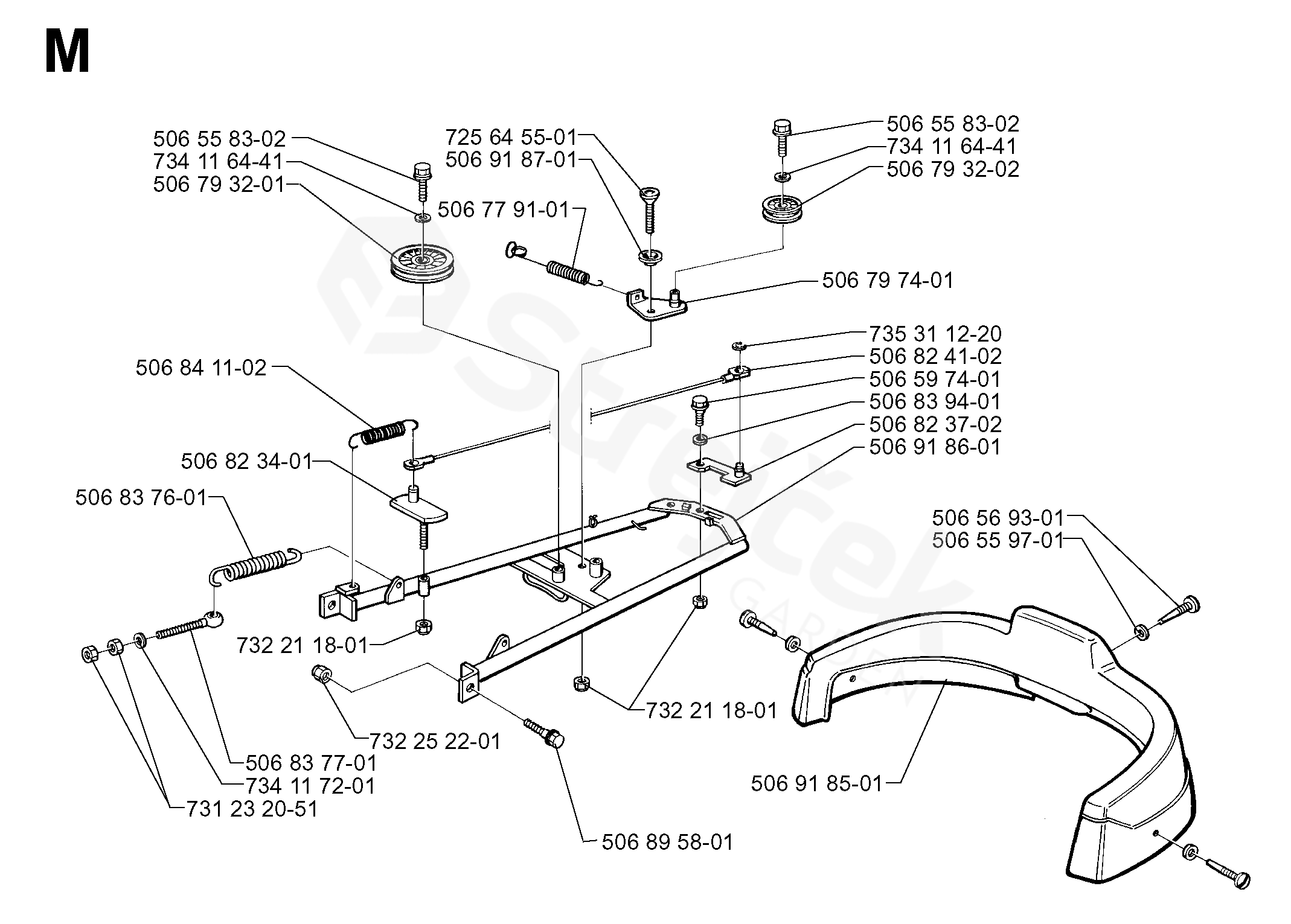

Spare parts > Husqvarna > RIDERS > RIDER 970 HST RIDER 970HST BIOCLIP, 1997-02 > FRAME
Back to
FRAME
RIDER 970 HST RIDER 970HST BIOCLIP, 1997-02
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For RIDER 970HST BIOCLIP, 1997-02
506558302 SCREW EHHFT 506558302
506559701 WASHER 506559701
506569301 SCREW 506569301
506597401 SCREW EHHFM 506597401
506779101 SPRING 506779101
506793201 BELT TENSIONER WHEEL 506793201
506793202 BELT TENSIONER WHEEL 506793202
506797401 SPÄNNARM KPL. 506797401
506823401 HITCH 506823401
506823702 LOCK ASSY 506823702
506824102 WIRE ASSY 506824102
506837601 SPRING 506837601
506837701 RING BOLT 506837701
506839401 PRUŽNÁ PODLOŽKA 506839401
506841102 SPRING 506841102
506895801 COLLAR SCREW 506895801
506918501 MELLANDEL 506918501
506918601 DECK ATTACHMENT ASSY 506918601
506918701 WASHER 506918701
725645501 SCREW IHCSFM 725645501
731232051 HEXAGON NUT 731232051
732211801 LOCK NUT 732211801
732252201 HEXAGON LOCKING NUT 732252201
734116441 PODLOŽKA 734116441
734117201 HEXAGON NUT 734117201
735311220 E-CLIP 735311220
