ST S p A
>
Lawn Tractor
>
RIDER BG 10 5/71 RIDER BG 10 5/71 (2008)
>

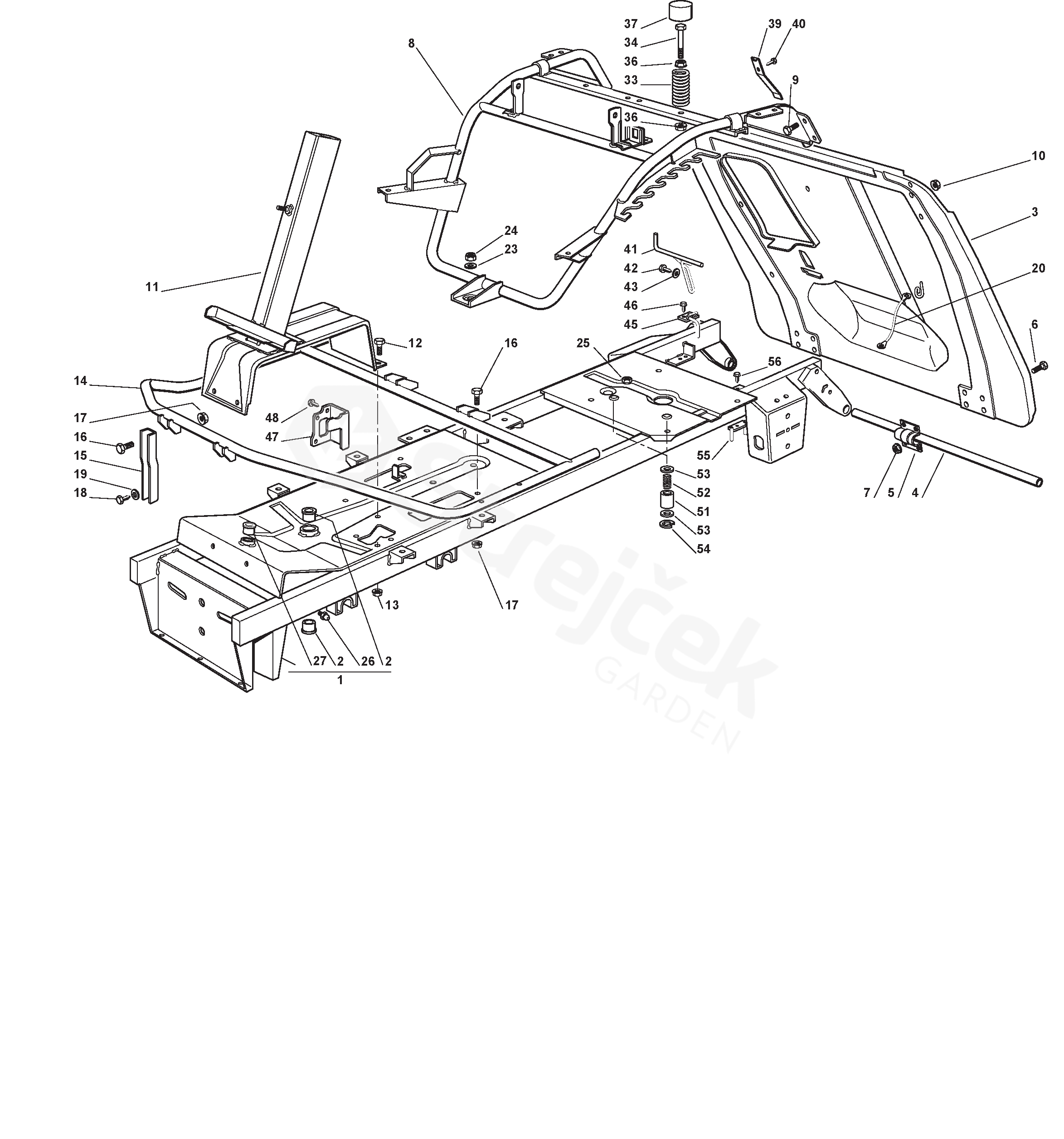

Chassis
Back to
RIDER BG 10 5/71
RIDER BG 10 5/71 (2008)
Chassis
RIDER BG 10 5/71
RIDER BG 10 5/71 (2008)
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
RIDER BG 10 5/71 (2008)
1
Frame
384801135/0
2
Bushing
125034002/1
3
Rear Plate F 72
384545057/2
4
Rear Plate Fulcrum
127037000/1
5
Plate
325547012/1
6
Screw
112791200/0
7
Nut
112292102/0
8
Upper Seat Frame
384801127/0
10
Nut
112293201/0
11
Steering Column Support
384783027/0
12
Screw
112792611/0
14
Footboard Support
384801107/1
15
Support
327787025/0
18
Screw
112734995/0
19
Washer
112521331/0
20
Rear Plate
384040300/0
23
Washer
112523060/0
24
Nut
112155000/0
25
Rivet
112500090/0
26
Grease Dispenser
112379511/0
27
Brass
125034001/0
33
Spring
127430575/0
34
Screw
127943050/0
37
Cap
325122000/2
39
Spring
127430554/0
40
Screw
112735110/0
41
Rear Conveyor Guide
127294001/0
42
Screw
112735120/0
43
Washer
112523040/0
45
Belt Guide
127294003/0
47
Micro Handbrake Stirrup Support
327772095/0
48
Screw
112735106/0
51
Fast Release Bush Rider
127047012/0
52
Spring
127430577/0
53
Washer
325670008/1
54
Benzing Ring
112000955/0
55
Belt Guide
184250053/0
