ST S p A
>
Lawn Tractor
>
F 72 Hydro F.L. F 72 Hydro F.L. (2020)
>
Engine - ST.
Back to
F 72 Hydro F.L.
F 72 Hydro F.L. (2020)
Engine - ST.
F 72 Hydro F.L.
F 72 Hydro F.L. (2020)

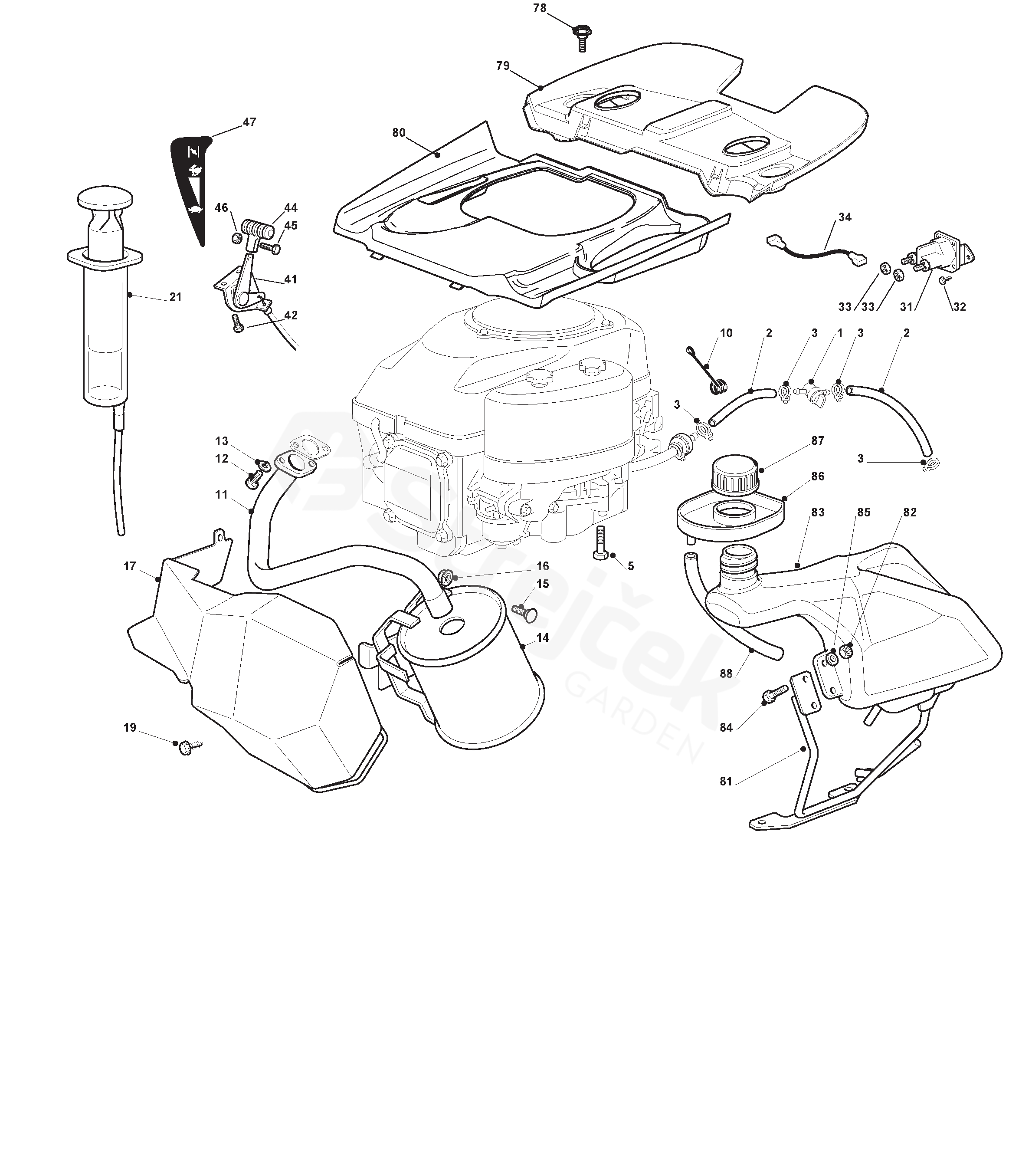

Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
F 72 Hydro F.L. (2020)
1
Shut out valve
118562996/0
2
Connecting Tube
325869035/1
3
Fair Led
118375051/1
5
Screw
112735108/1
10
Spring
125430239/1
11
Exhaust Connection
118738240/0
12
Screw
112737450/0
13
Grower
112583500/0
14
Muffler
118716133/0
15
Screw
112815210/0
16
Nut
112292102/0
17
Muffler Protection
384598093/0
19
Screw
112729601/1
21
Oil Emptying Syringe
118718000/0
31
Starter Relay
118736113/0
32
Screw
112735110/0
33
Nut
112360352/0
34
Cable
127065050/0
41
Accelerator
184000250/1
42
Screw
125943012/0
44
Knob
125394501/0
45
Screw
112726389/0
46
Nut
112290800/0
47
Label
114363697/0
78
Screw
125943010/0
79
Black Seat Switch Cover
327110515/0
80
Engine Cover
327110505/0
81
Support
384783049/0
82
Nut
112154510/0
83
Fuel Tank
327733007/0
84
Screw
112791400/0
85
Washer
112521331/0
86
Guard
327600061/2
87
Fuel Cap
125795000/1
88
Fuel Tube
325869014/1
