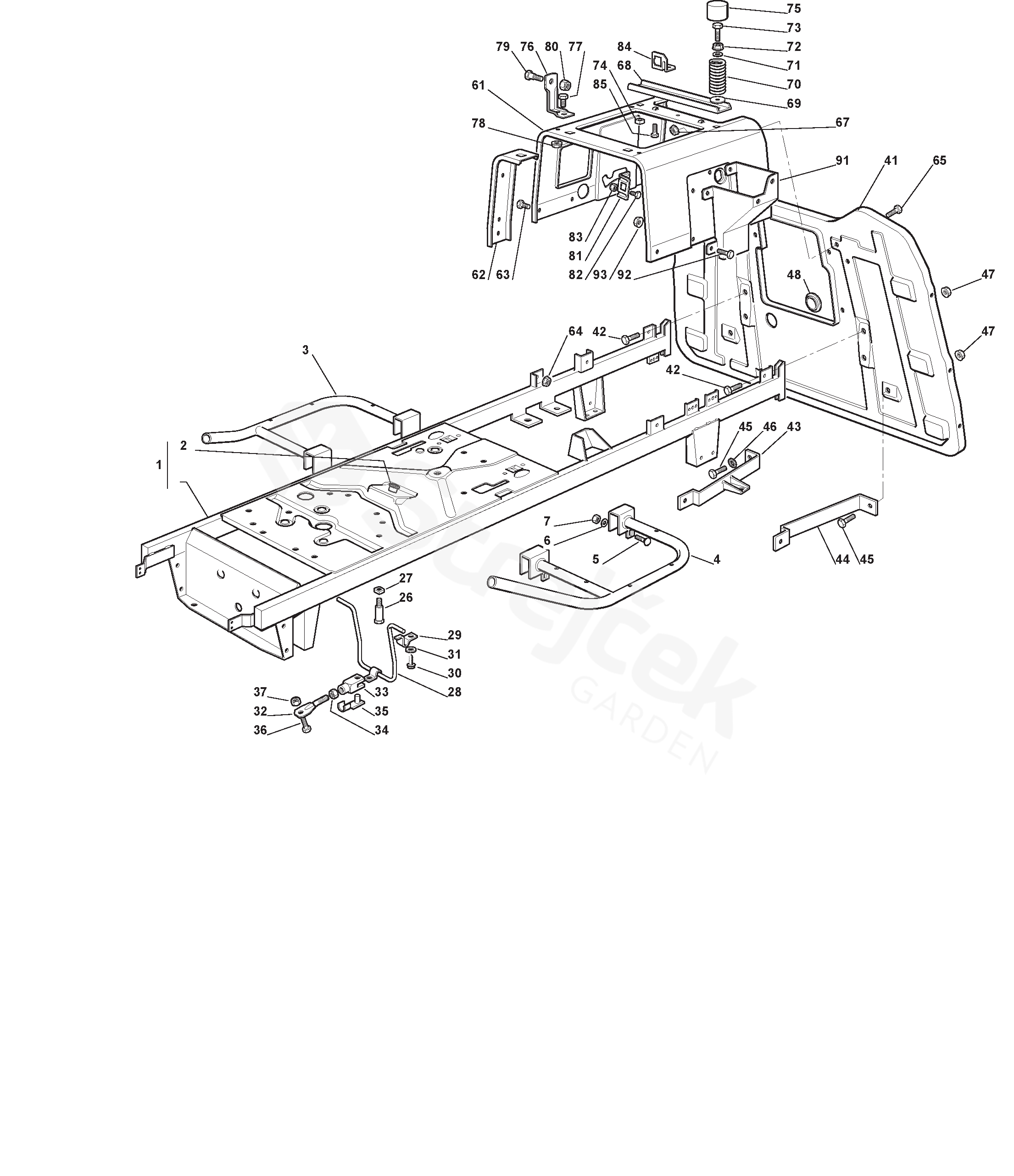

MT 545 MT 545 (2003)

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For MT 545 (2003)

1	Chassis	382800071/0
2	Brass	125034001/0
3	Right Footboard Support	382800019/0
4	Left Footboard Support	382800021/0
5	Screw	112815240/0
6	Washer	112523040/0
7	Nut	112154510/0
26	Belt Guide Peg	125580023/0
27	Nut	112360425/0
28	Belt Guide	325270318/0
29	Clamp	325774299/0
30	Screw	112734995/0
31	Washer	112523040/0
32	Tie Rod	382000505/0
33	Fork	118399000/0
34	Nut	112292100/0
35	Clip	118210200/0
36	Screw	112793102/0
37	Nut	112154210/0
41	Rear Plate Junior	382547021/2
42	Screw	112792611/0
43	Plate Stiffening, Right	382650201/0
44	Plate Left Stiffening	325650046/0
45	Screw	112792611/0
46	Washer	112540260/0
47	Nut	112293201/0
48	Cover	122110275/0
61	Seat Support	325785119/1
62	Front Seat Stiffening	325650055/0
63	Screw	112790780/0
64	Nut	112292102/0
65	Screw	112790781/0
67	Nut	112292102/0
68	Plate Stiffening	325650056/0
69	Washer	112523060/0
70	Spring	125430205/0
71	Washer	112521350/0
72	Nut	112293201/0
73	Screw	125943001/0
74	Nut	112360420/0
75	Protection Hood	125122000/1
76	Plate	325755008/0
77	Screw	112792610/0
78	Nut	112293201/0
79	Fulcrum Pin	122524970/2
80	Nut	112155010/0
81	Bracket	325755016/0
82	Screw	112789000/0
83	Nut	112154330/0
84	Bracket	325755025/1
85	Screw	112731580/0
91	Bracket	325785057/0
92	Screw	112790780/0
93	Nut	112292102/0
