Spare parts > ST S p A > Trimmer/Brushcutter > PRO MAC ELITE 3000 PRO MAC ELITE 3000 (1999) > Engine
Back to

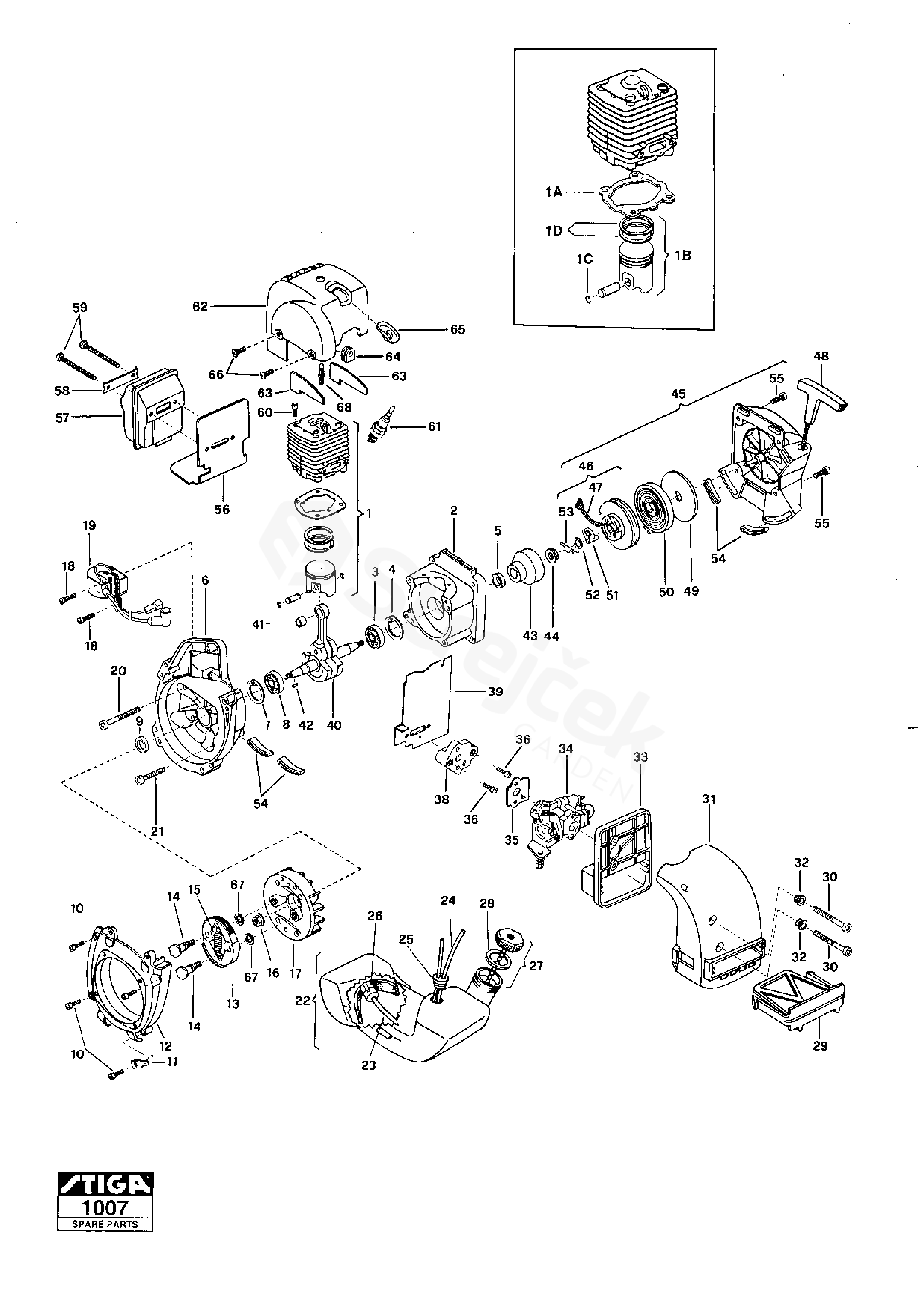

Engine
PRO MAC ELITE 3000 PRO MAC ELITE 3000 (1999)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For PRO MAC ELITE 3000 (1999)
1 Cylinder Kit M247701
2 Carter Kit M247936
3 Ball Bearing M235900
4 Seeger Ring M235899
5 Seal M228872
6 Carter Kit M247935
10 Screw M235806
11 Connector M228139
12 Flywheel housing M241279
13 Clutch Kit M247937
14 Pin M241269
15 Clutch Spring M241270
16 Nut M235218
17 Flywheel M241240
19 Ignition Coil M241298
20 Screw M235808
21 Screw M235804
22 Fuel Tank M241282
23 Fuel Tube M229809
24 Fuel Tube M229743
25 Grommet M235675
26 Fuel Filter M240452
27 Fuel Cap M236563
28 Oil Tap Gasket M236564
29 Air Filter M241213
31 Air Filter Cover M241477
32 Bushing M227924
33 Air Filter Housing M241211
34 Carb. Walbro Wyj183A
Walbro WYJ183A 		M241268
35 Gasket M241281
38 Spacer M241481
39 Guard M241428
40 Crankshaft M241266
41 Needle Bearing M235742
42 Key M227631
43 Starter Holder M241223
45 Starter Assy M241283
46 Drum + Rope M227194
47 Starter Rope M227703
48 Handle M240884
49 Shield-Spring M227467
50 Rewind spring M227300
51 Starter Pawl M240492
52 Spacer M227470
53 Retaining Spring M240485
54 Grommet M241248
55 Screw M236527
56 Muffler Gasket M241280
57 Muffler Assy M241432
58 Clamp M227236
59 Screw M227274
60 Screw M227565
61 Spark Plug (Dj8J)
Champion DJ8J 		9400-0261-00
62 Engine Cover M241669
63 Guard-Engine Cover M241416
64 Grommet M236322
65 Cap M241241
66 Screw M240688
67 Washer M236956
1A Cylinder Gasket M227286
1B Piston M240001
1C Seeger Ring M235008
1D Piston Ring M240002
