ST S p A
>
Trimmer/Brushcutter
>

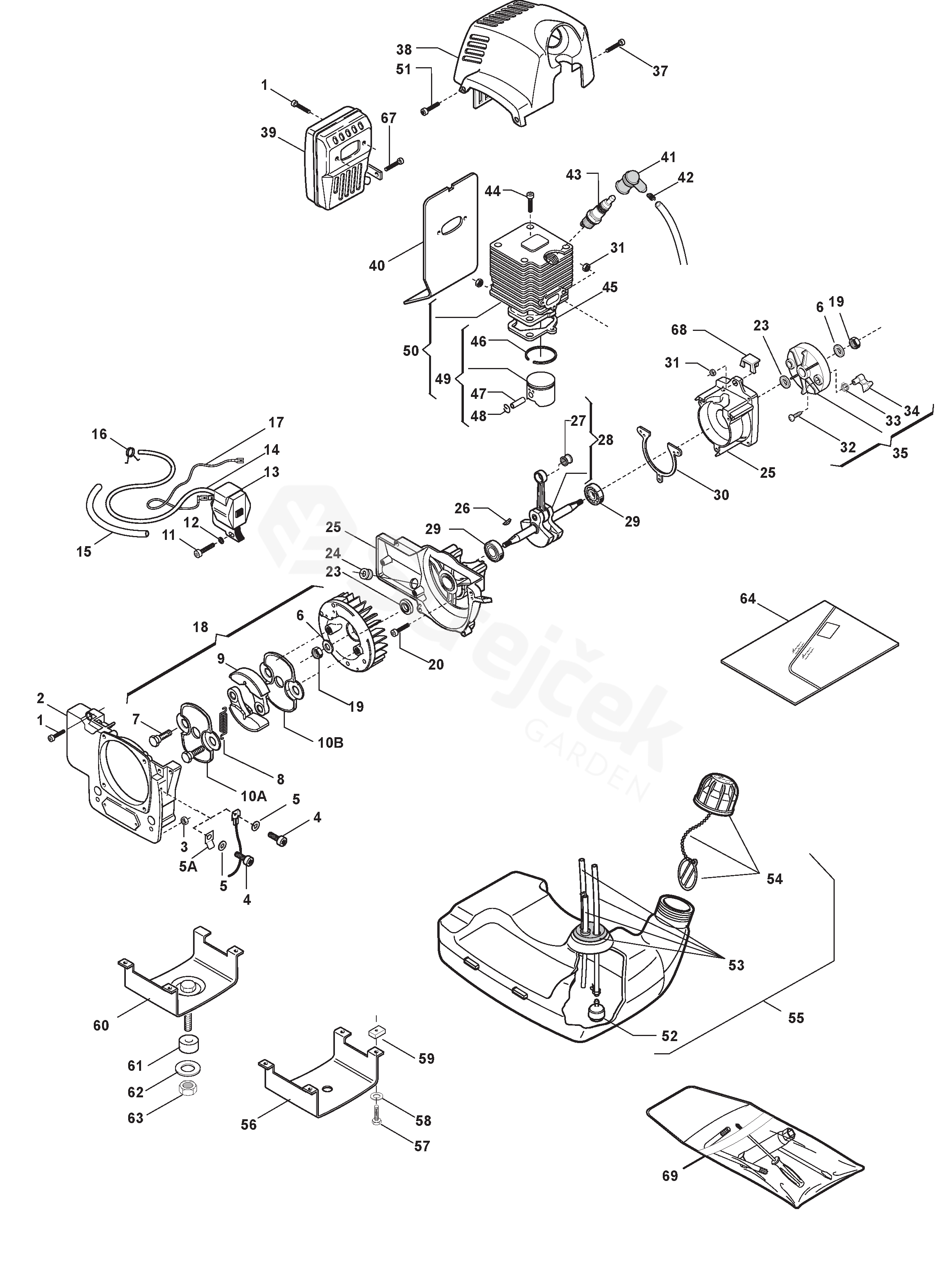

BC 530 D BC 530 D (2002)
>
Engine
Back to
BC 530 D
BC 530 D (2002)
Engine
BC 530 D
BC 530 D (2002)
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
BC 530 D (2002)
1
Screw
2135040
2
Transmission Support Case
4540940
3
Nut
2461030
4
Screw
2132500
5
Faston (Flex)
3211420
6
Washer
2350040
7
Screw
2653213
8
Clutch Spring
3654220
9
Clutch Unit
3L3660500/1
10
Outher Clutch-Mass Guide Plate
3615020
11
Screw
2135060
12
Washer
2321150
13
Electronic Coil
replaced by 123044001/0
1L3211670/1
14
Spark Plug Cable
3211080
15
Wire Sheath
3782470
16
Clamp
3657450
17
Earth Cable
3211415
18
Flywheel Ass.Y
3L8252510/1
19
Nut
2412100
20
Screw
2135130
23
Seal Ring
3121120
24
Grommet
3745130
25
Crankcase Ass.Y
8540930
26
Flywheel Key
3151050
27
Needle Bearing
3114190
28
Crankshaft
8251440
29
Ball Bearing
3112040
30
Crankcase Gasket
3724120
31
Nut
2432040
32
Screw
2123100
33
Spring
3654050
34
Starter Hook
3749570
35
Starter Cup Assy
8540950
37
Screw
2135030
39
Muffler
4122170
40
Muffler Gasket
3724380
41
Spark Plug Cap
3744850
42
Spark Plug Spring
3657530
43
Spark Plug
3210024
45
Cylinder Gasket
3724130
46
Piston Ring Ø 45
3123110
47
Piston Pin
3158080
48
Circlip
3356020
49
Piston Assy Ø 45
8540960
50
Cyl-Pist Ø 45 (Incl.49)
3L8540970/1
52
Intake Filter
4253290
53
Grommet Assy
8745542
54
Fuel Cap Assy
8741370
55
Fuel Tank Assy
4252620
56
Engine Support Flange
4612237
64
Gasket Set
8724380
67
Screw
2135180
68
Spacer
3750537
69
Tool Bag
4253412
