Spare parts > Husqvarna > RIDERS > P524 P524 > 41"/103CM CUTTING DECK
Back to

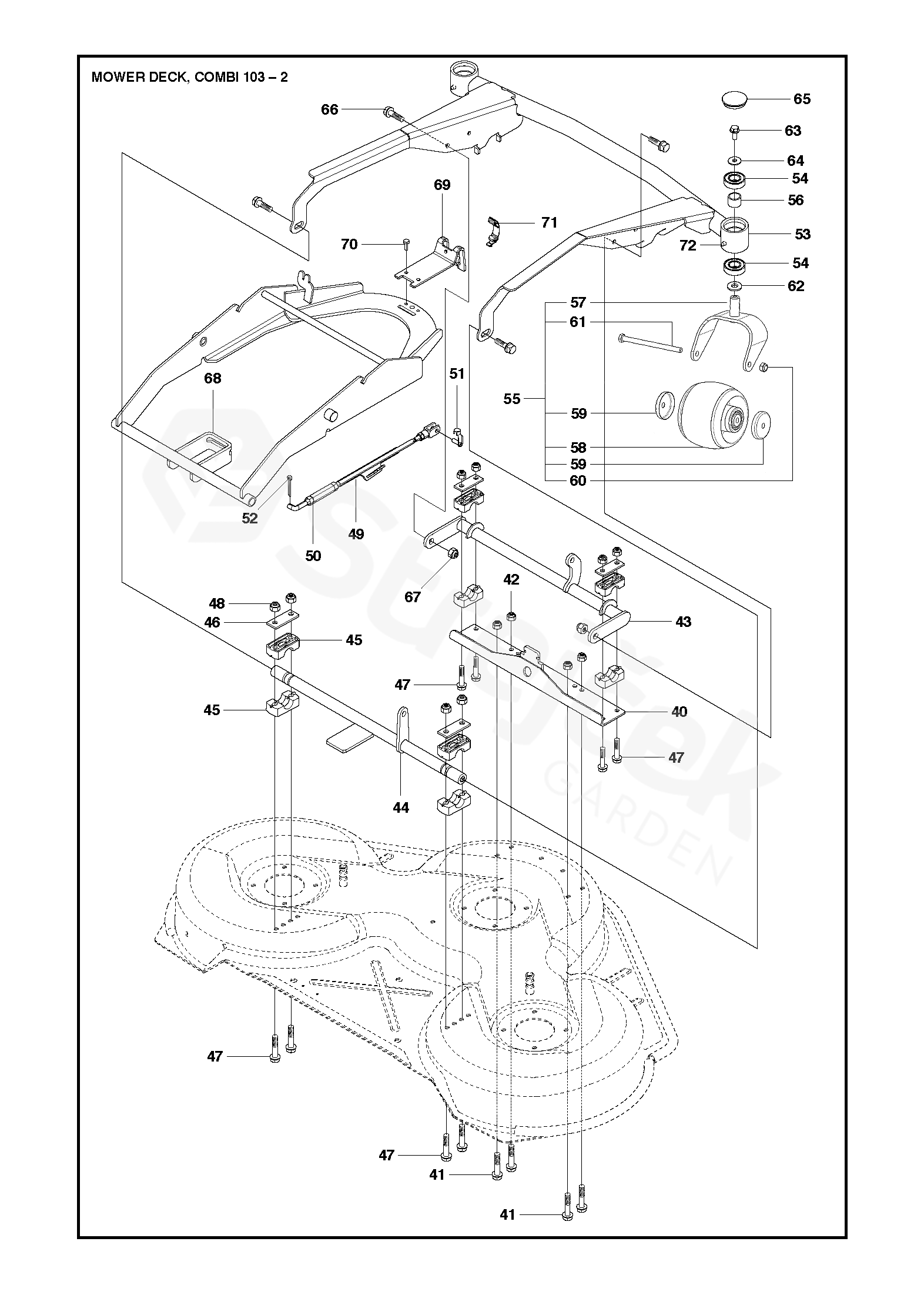

41"/103CM CUTTING DECK
P524 P524
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For P524
40 BRACKET 581915601
41 SCREW EHHM 725245171
42 LOCK NUT 732211801
43 CROSS BAR 502641802
44 CROSS BAR 502641902
45 BEARING 506869601
46 REINFORCING PLATE 506813801
47 SCREW EHHM 725246151
48 LOCK NUT 732211801
49 PARALLEL ROD ASSY 577842903
50 PARALLEL ROD 502642301
51 BOLT 506839803
52 SPLIT PIN 721618301
53 DECK FRAME 590355601
54 BALL BEARING 590046101
55 PIVOT WHEEL ASSY 596272301
56 SPACER 582578701
57 FORK 597894602
58 WHEEL ASSY 592746901
59 DUST COVER 590683601
60 LOCK NUT 732212001
61 SCREW EHHM 725251951
62 PODLOŽKA 506504805
63 SCREW EHHFM 506570104
64 BELT COVER 544221601
65 DUST COVER 581828301
66 SCREW EHHFM 506597401
67 LOCK NUT 732211801
68 DECK ATTACHMENT 590896302
69 BRACKET 585943104
70 SCREW EHHFT 725236861
71 SNAP LOCKING 588462803
72 LUBRICATION NIPPLE 738881001
