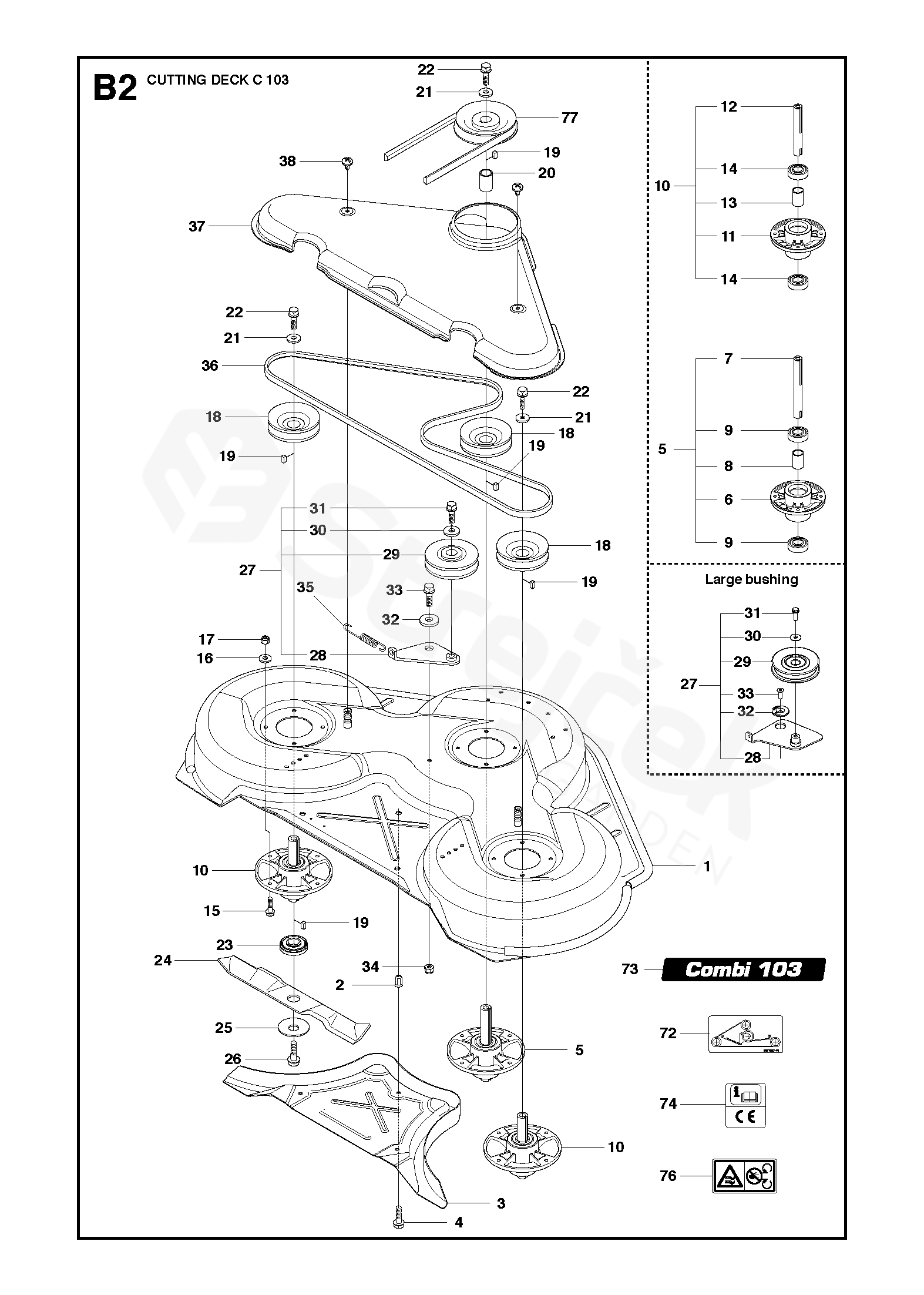

Spare parts - Partlist - R320 AWD R320 AWD - 103CM CUTTING DECK

Everything for your machines

R320 AWD R320 AWD

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For R320 AWD

1	DECK SHELL ASSY For 966757401, 967151701	504569805
2	BLIND RIVET NUT	506916201
3	PLUG	544449201
4	SCREW EHHFM	506570104
5	BLADE HOUSING ASSY For 966757401, 967151701	576384103
6	BEARING HOUSING	576384201
7	SHAFT For 966757401, 967151701	576384303
8	SPACING SLEEVE	576384401
9	BALL BEARING	738230434
10	BLADE HOUSING ASSY	576384102
11	BEARING HOUSING	576384201
12	SHAFT	576384302
13	SPACING SLEEVE	576384401
14	BALL BEARING	738230434
15	SCREW RSQM	535423801
16	PODLOŽKA	734116401
17	LOCK NUT	732211801
18	PULLEY	506922101
19	PARALELNÍ KLÍN	506533501
20	SPACING SLEEVE For 966757401, 967151701	544068003
21	PODLOŽKA	734117441
22	SCREW EHHM	544114101
23	ADAPTER	535504202
24	BLADE	504188210
25	KNIFE PLATE	506792301
26	SCREW EHHM	544114101
27	BELT TENSIONER ASSY Large bushing Large bushing	586966601
28	ARM Large bushing	585359901
29	PULLEY	506532701
30	PODLOŽKA	734116441
31	SCREW Large bushing	586320401
32	WASHER Large bushing	586496701
33	SCREW EHHM Small bushing	725245171
34	LOCK NUT	732211801
35	PRUŽINA	506533101
36	BELT	589530601
37	BELT COVER	544096101
38	SCREW	544400501
72	LABEL	506789701
73	LABEL	544238103
74	LABEL	506929001
76	DECAL	574510001
77	PULLEY	506778601
