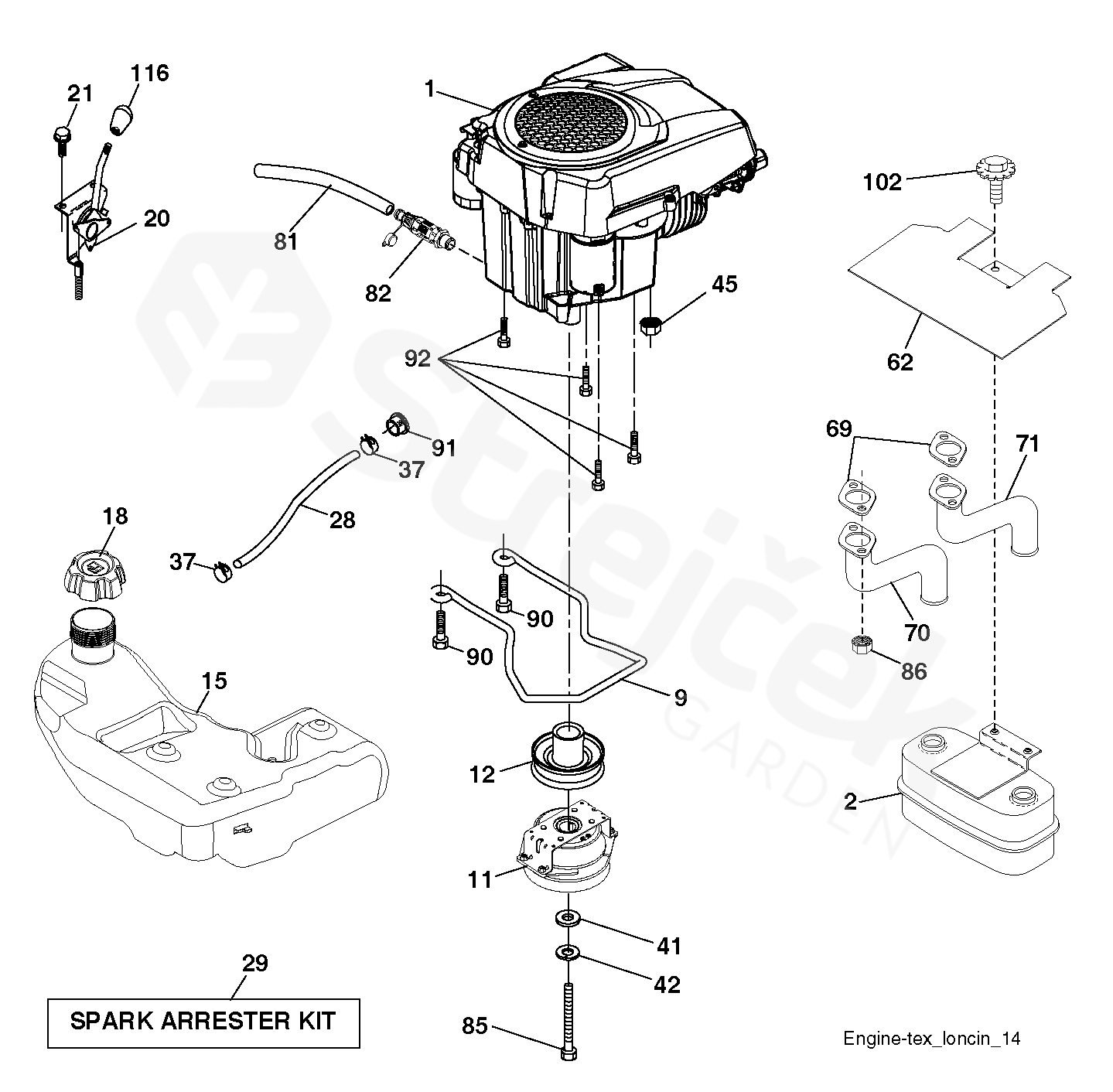

Spare parts > Husqvarna > TRACTORS/RIDE MOWERS > TS 254G TS 254G, 96041044500, 2019-08 > ENGINE
Back to
ENGINE
TS 254G TS 254G, 96041044500, 2019-08
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For TS 254G, 96041044500, 2019-08
1 ENGINE
Engine Husqvarna Model No. HV 764cc. Engine IPL available separately. 		598632101
2 MUFFLER 589818701
9 KEEPER 501832602
11 CLUTCH 587241401
12 PULLEY 532194343
15 FUEL TANK 532193499
18 CAP 584248702
20 THROTTLE CONTROL 586219601
21 SCREW 596321701
28 LINE.FUEL.64"REAR.EMIS 532401135
29 SPARK ARRESTER KIT 532137180
37 HADICOVÁ SVĚRKA 532123487
41 WASHER 532126197
42 WASHER 596238901
45 NUT 593356401
62 SHIELD 532434017
69 GASKET 597905101
70 TUBE
LH 		597888901
71 TUBE
RH 		597889001
81 TRUBKA 532148456
82 PLUG 532428287
85 BOLT 501606901
86 NUT HEX FLANGE TOPLOCK 532184362
90 SCREW 817000616
91 BUSHING 532187495
92 SCREW 817120616
102 SCREW 817000512
116 KNOB - SHIFT 539132624
