Spare parts > Husqvarna Construction Products > LIGHT COMPACTION > LP 6505 LP 6505, 967855701, 967855702, 967855703, 2019-08 > HYDRAULIC SYSTEM
Back to

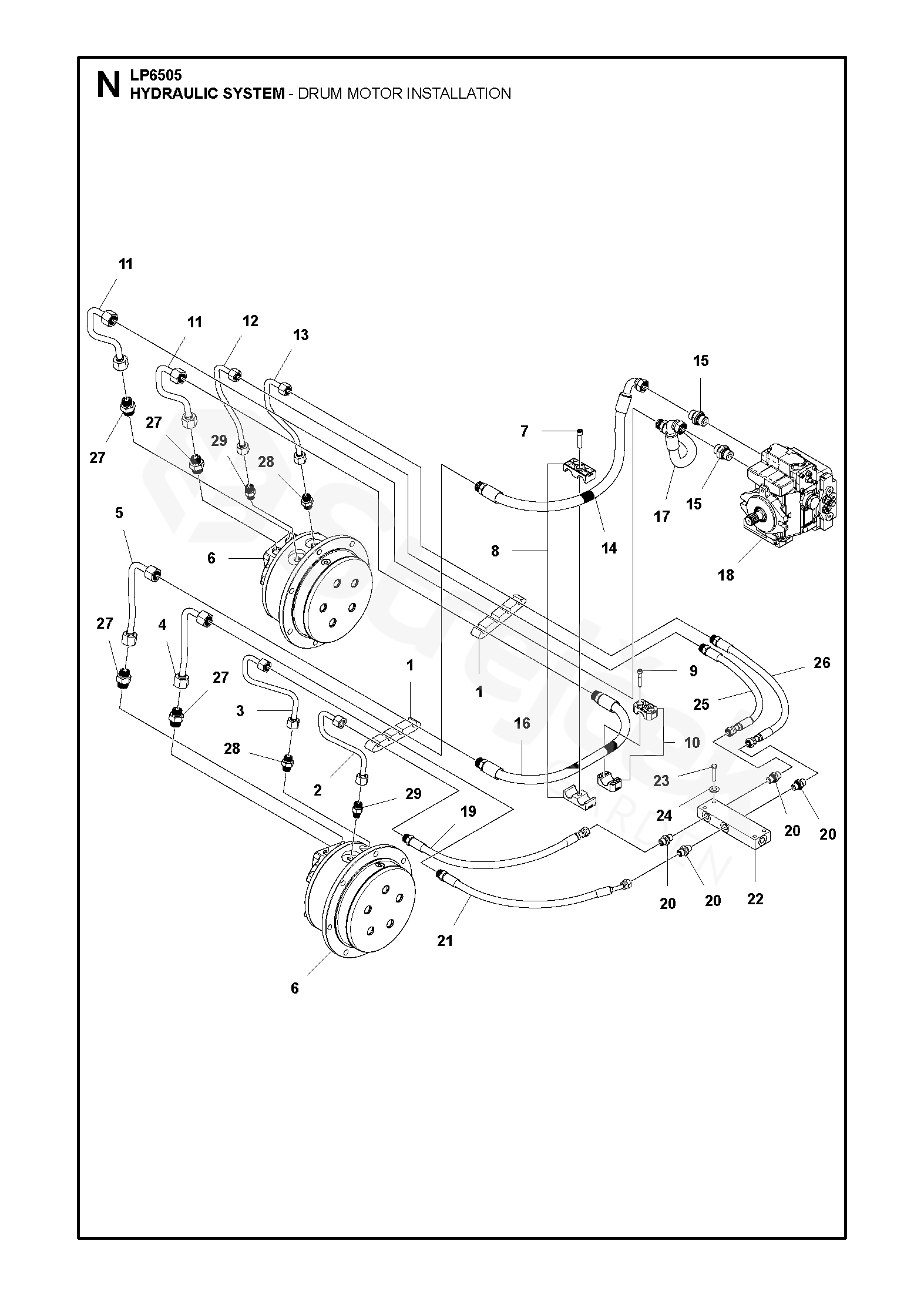

HYDRAULIC SYSTEM
LP 6505 LP 6505, 967855701, 967855702, 967855703, 2019-08
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For LP 6505, 967855701, 967855702, 967855703, 2019-08
1 PIPE
Pipe support 		594176901
2 HYDRAULIC PIPE
Hydraulic pipe 		594172001
3 HYDRAULIC PIPE
Hydraulic pipe 		594172401
4 HYDRAULIC PIPE
Hydraulic pipe 		594172101
5 HYDRAULIC PIPE
Hydraulic pipe 		594172201
6 DRUM
Drum motor 		595125701
7 SCREW
Hex sock. screw 		595348501
8 HOLDER
Hose holder 		595366101
9 SCREW
Hex sock. screw 		594120301
10 HOSE
Hose holder 		594177601
11 HYDRAULIC PIPE
Hydraulic pipe 		594172301
12 HYDRAULIC PIPE
Hydraulic pipe 		594172501
13 HYDRAULIC PIPE
Hydraulic pipe 		594172601
14 HOSE
Hydraulic hose 		594755501
15 ADAPTER
Nipple, complete 		595038501
16 HOSE
Hydraulic hose 		594754301
17 HOSE
Hydraulic hose 		594755401
18 HYDRAULIC PUMP
Hydraulic pump 		594177501
19 HOSE
Hydraulic hose 		594754501
20 CONNECTION
Connection 		595116001
21 HOSE
Hydraulic hose 		594754101
22 BLOCK
Hydraulic block 		595365101
23 SCREW
Hex sock. screw 		594120301
24 WASHER
Plain washer 		595036501
25 HOSE
Hydraulic hose 		594754401
26 HOSE
Hydraulic hose 		594754201
27 CONNECTOR
Straight connector 		595116701
28 CONNECTOR
Straight connector 		595116501
29 CONNECTOR
Straight connector 		595116201
