Spare parts > Husqvarna Construction Products > TROWELS > BG 375 F QP TP US BG 375 F QP TP US, 967856401, 2020-06 > HANDLE
Back to

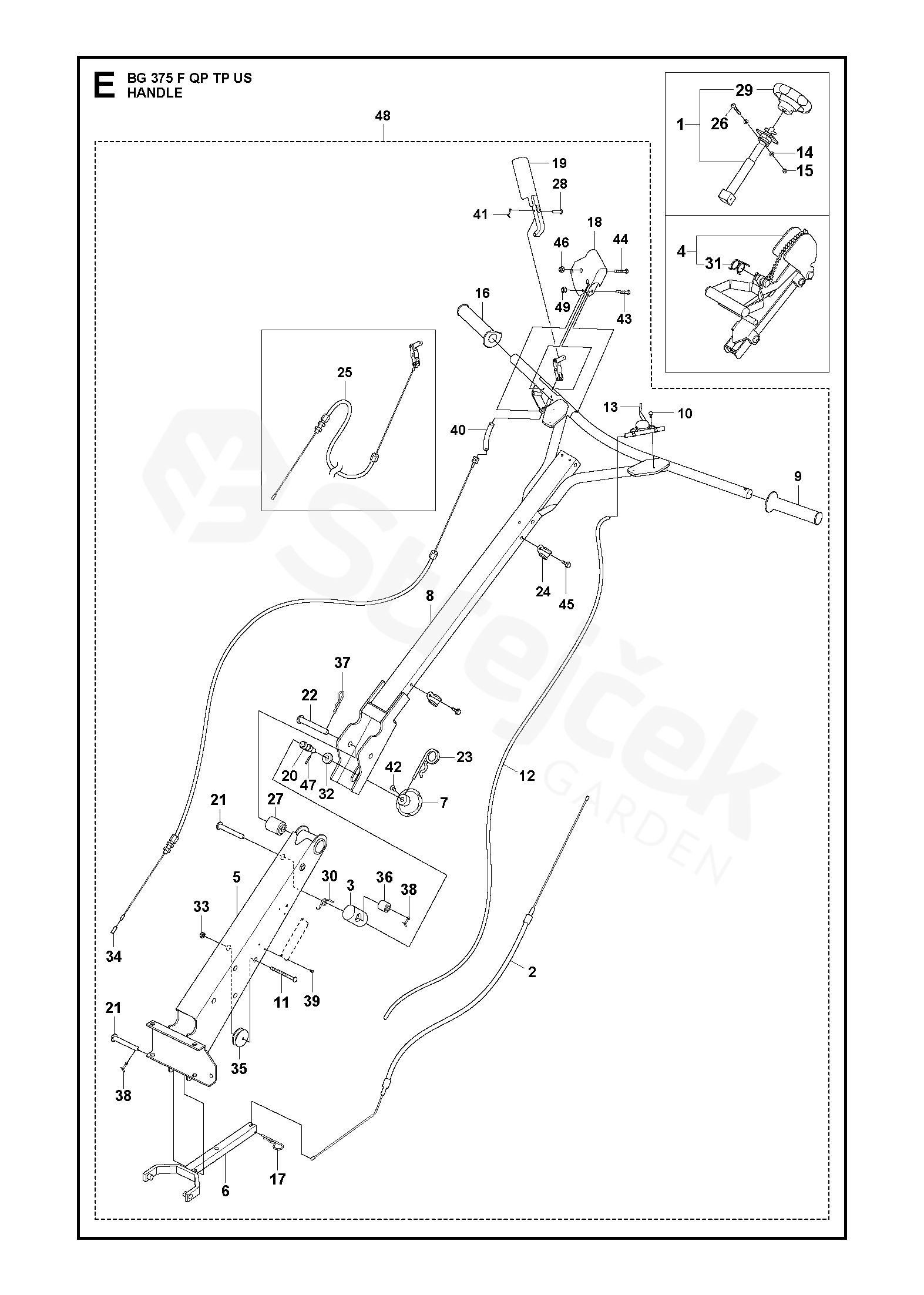

HANDLE
BG 375 F QP TP US BG 375 F QP TP US, 967856401, 2020-06
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For BG 375 F QP TP US, 967856401, 2020-06
1 BLADE
Blade Adjuster, Complete 		594198401
2 WIRE
Blade adjuster cable 		594639001
3 BUSHING 594865901
4 UNIT
Blade Adjuster, Quick pitch, Complete 		595526201
5 CONSOLE 595298001
6 FORK 594243801
7 HANDLE 594641401
8 HANDLE 595298601
9 HANDLE 594223301
10 SCREW
M5х16 ISO7380 10.9 ZnB 		595211601
11 BOLT
M6x70 8.8 ISO4014 A2K 		594117801
12 THROTTLE
Throttle cable 		594639201
13 CONTROL LEVER 594224101
14 PLANE WASHER
M5 ISO7089 200HV A2K 		594123801
15 NUT
M5 DIN985-8 Zn 		595112401
16 HANDLE 594866201
17 SPRING PIN 594117501
18 LEVER 595279301
19 COVER 595275801
20 STUD 594641201
21 PIN
10x70 ISO2341 type B ZnB 		595109601
22 PIN
12x80 ISO2341 type B ZnB 		595210701
23 CLIP
D4 DIN11024 Zn 		594866001
24 PIPE CLAMP 595114601
25 CABLE ASSY
Clutch cable, complete 		597923302
26 SCREW
М5х40 ISO7380 10.9 Zn 		595211701
27 SLEEVE 594863701
28 CLEVIS PIN
4х14 ISO 2341 Zn 		594641301
29 KNOB 594245701
30 SPRING 594638801
31 SPRING 595499901
32 SUPPORT 594866101
33 NUT
M6 DIN 985-8 Zn 		595187101
34 TERMINAL 594257701
35 PULLEY 594863601
36 SLEEVE 594863801
37 CLIP 594117401
38 SPLIT PIN
3.2x20 ISO1234 A2K 		594117301
39 RIVET
POP RIVET D2,4X8,6 		595344001
40 JOINT 594865201
41 PIN
1x8 ISO1234 		595033001
42 SCREW
M5x8 DIN 7991 		594750601
43 SCREW
М5х30 ISO 7380 Zn 		595526301
44 SCREW
М4х30 ISO 7380 Zn 		595500501
45 SCREW
4.8x16 DIN7504K Zn 		595355801
46 LOCK NUT
M4 DIN985-8 Zn 		595351901
47 PIN
4x24 ISO8752 		595109401
48 HANDLE
Handle, complete 		595298301
49 NUT
M5 DIN985-8 Zn 		595112401
