Spare parts - Partlist - WATERING VALVE WITH BOX V 1 - 1" WATERING VALVE WITH BOX V 1 - Art. 1252, until 2003

Everything for your machines

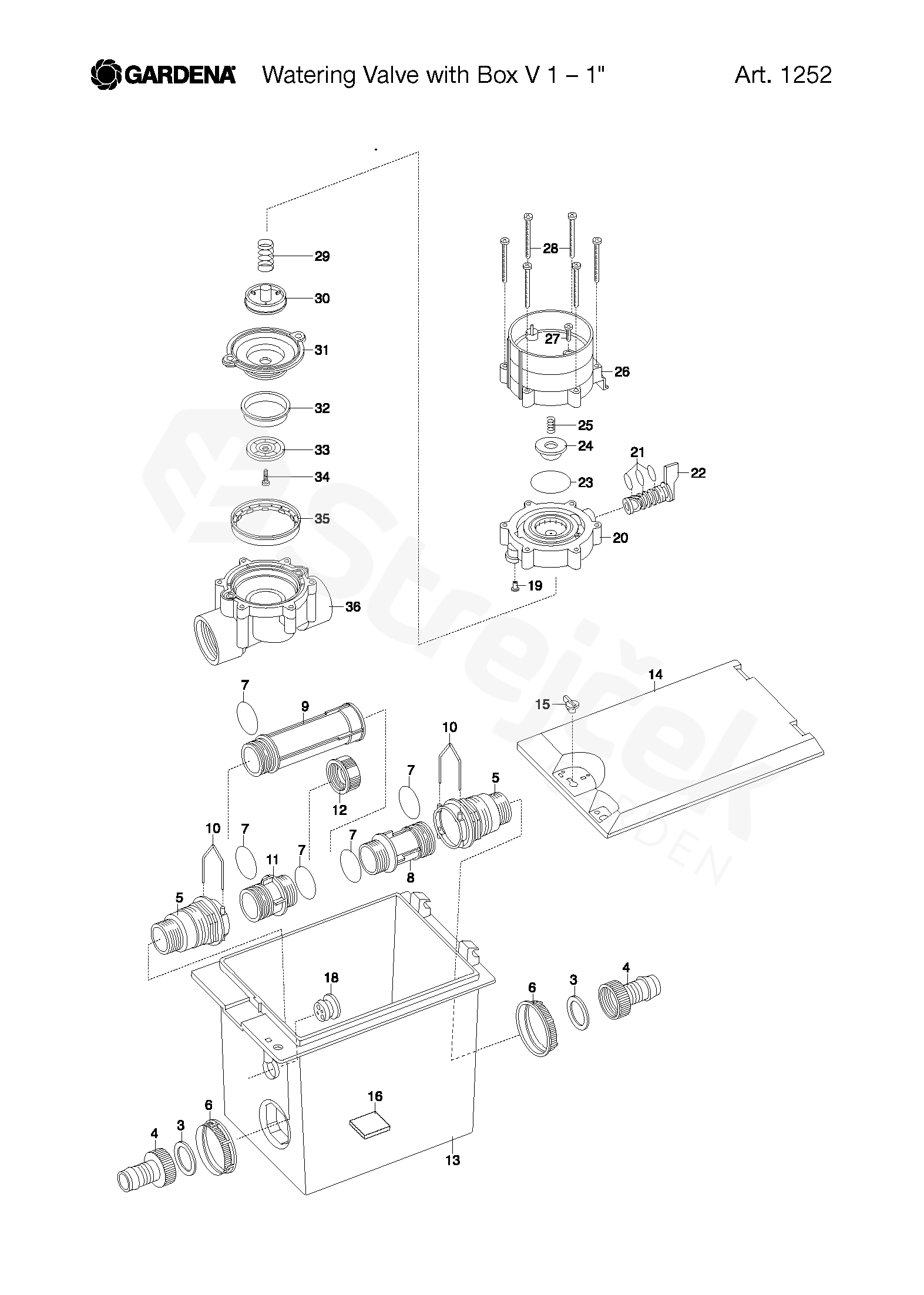

WATERING VALVE WITH BOX V 1 - 1" WATERING VALVE WITH BOX V 1

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For WATERING VALVE WITH BOX V 1

1/2 Art. 1252, until 2001

2/2 Art. 1252, until 2003

3	WASHER 31.5/20X3 1122-00.000.01 1122-00.000.01	520338601
5	ADAPTER 1255-00.600.21 1255-00.600.21	520349001
6	NUT 1252-00.500.01 1252-00.500.01	520347801
7	O-RING 1252-00.500.40	590191101
8	CONNECTING BUSH. LONG 1255-00.600.30 1255-00.600.30	520349201
10	BOW 1252-00.500.21 1252-00.500.21	520347901
11	CONNECTING BUSH. SHORT 1255-00.600.35 1255-00.600.35	520349301
12	SCREW 1252-00.500.31 1252-00.500.31	520348101
13	SINGLE BOX 1252-00.500.26 1252-00.500.26	520348001
14	COVER 1241-00.600.06 1241-00.600.06	520346601
15	TURNING KNOB 1594-00.600.51 1594-00.600.51	520399501
16	BAND 1240-00.600.31 1240-00.600.31	520345601
18	CLIP 1255-00.600.40 1255-00.600.40	520349401
19	CONTROL NOZZLE RED 1815-00.610.27 1815-00.610.27	520419001
21	O-RING 7,5X2 913-00.680.01 913-00.680.01	520332401
23	O-RING 24X2 1672-00.600.11 1672-00.600.11	520402001
24	MAGNETIC PLATE COMPL. 1174-00.618.00 1174-00.618.00	525411201
25	PRESSURE SPRING. SMALL 1174-00.610.11 1174-00.610.11	520340601
26	ELECTRIC MAGNET. CPL. 1251-00.510.00 1251-00.510.00	520347501
27	SHEET METAL SCREW 3.5X25 1174-00.610.07 1174-00.610.07	520340401
29	PRESSURE SPRING. LARGE 1174-00.610.08 1174-00.610.08	520340501
36	VALVE BODY 1251-00.500.31 1251-00.500.31	520347401
1936	WATERING VALVE 1" 9 V 1251-00.500.00 1251-00.500.00	520347101
3034	MEMBRANE COMPL. 1251-00.550.00 1251-00.550.00	520347701
	FINE FILTER 1251-00.540.00, not shown in image 1251-00.540.00, not shown in image	520347601
21,22	MIXER DIAL. CPL. 1251-00.701.00 1251-00.701.00	523616201
3,4	CONNECTOR 1512-00.799.00 1512-00.799.00	520388301
9,7	CONNECTING PIPE 1252-00.510.00 1252-00.510.00	520348301
